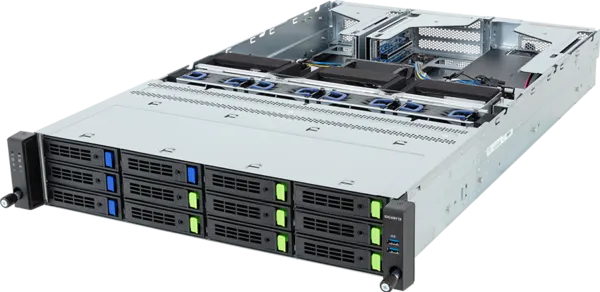

| Dimensions | 2U (W438 x H87.5 x D710 mm) |
Motherboard
| MZ33-DC1 |
| CPU | AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 400W |
Socket
| 1 x LGA 6096 (Socket SP5) |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 12 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s |
LAN
| 1 x 1Gb/s LAN (1 x Intel I210-AT), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x Mini-DP
|
Storage
| Front hot-swap:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
4 x 3.5"/2.5" SATA/SAS-4
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
SAS card is required to support SAS drives
|
RAID
| Require RAID add-in cards
|
PCIe Expansion
Slots
| 3 x FHFL PCIe Gen5 x16, for GPUs
2 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Front:
2 x USB 3.2 Gen1
Rear:
2 x USB 3.2 Gen1, 1 x Mini-DP, 1 x RJ45, 1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM012
|
Power Supply
| 1+1 2700W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
*The system power supply requires C19 power cord.
|
| System Fans | 4 x 80x80x38mm |
Operating
Properties | Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
| Packaging Content | 1 x R263-Z35-AAL1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
2 x GPU power cables (16-pin, 360mm)
1 x GPU power cable (16-pin, 490mm)
1 x 2-Section Rail kit |
