| Dimensions | 2U (W438 x H87.5 x D815 mm) |
Motherboard
| MS93-FS0 |
| CPU | 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Dual processor, TDP 350W at ambient 25°C |
Socket
| 2 x LGA 4677 (Socket E) |
| Chipset | Intel C741 |
| Memory | 8-Channel DDR5 RDIMM, 32 x DIMMs
[5th Gen Intel Xeon] Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
[4th Gen Intel Xeon] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[Intel Xeon Max Series] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
LAN
| Rear:
2 x 1Gb/s LAN (1 x Intel I350-AM2), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x Mini-DP
|
Storage
| Front hot-swap:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS
8 x 3.5"/2.5" SATA/SAS
|
RAID
| Intel SATA RAID 0/1/10/5
Onboard VROC key header
|
PCIe Expansion Slots
| 2 x FHFL PCIe Gen5 x16, for GPUs
2 x FHHL PCIe Gen5 x16
4 x LP PCIe Gen5 x8
2 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Front:
2 x USB 3.2 Gen1
Rear:
2 x USB 3.2 Gen1, 1 x Mini-DP, 2 x RJ45, 1 x MLAN
|
Backplane Board
| PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| 1+1 2700W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
|
| System Fans | 4 x 80x80x38mm |
Operating
Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |

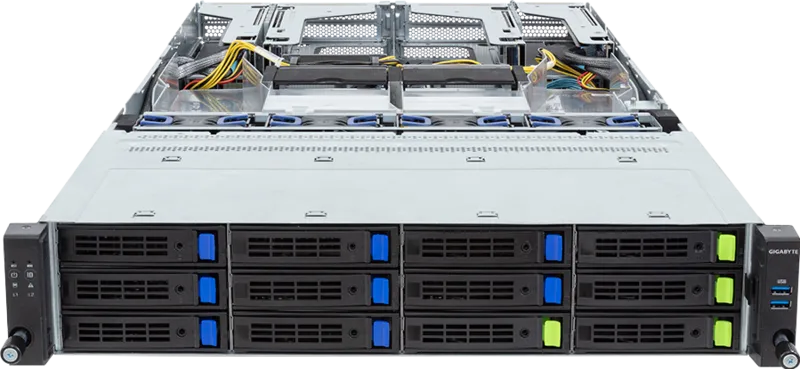

| Packaging Content | 1 x R283-S93-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
6 x Carriers
1 x 2-Section Rail kit |
