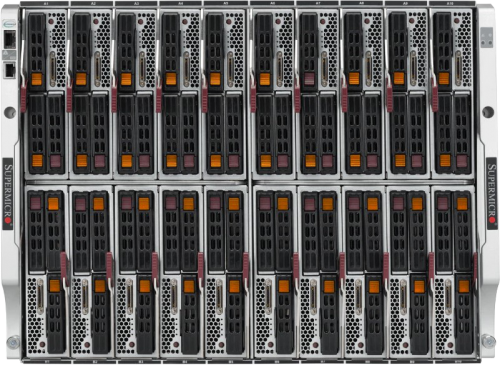

Picture of NTS Elite Edge 20-Blade High-Density Server with up to 100 NVMe Drive

NTS Elite Edge 20-Blade High-Density Server with up to 100 NVMe Drive

Part#: EDGI008U20
  • Blade Servers: Up to 20 half-height 2-socket blade servers
  • Infiniband HDR Switch: Support for 1x 200Gbps module
  • Ethernet Switch: Up to 2x modules
  • Compatibility: See the Blade Matrix or contact your Supermicro representative
  • Switch Modules: Must be purchased separately
  • Cooling Fans: Up to 8 cooling fans in PWS modules
  • Optional Cooling Fan Modules: 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
Configure & Buy Specifications



 Processor Blade
Up to 20 half-height 2-socket blade servers
Up to 10 full-height 4-socket blade servers
Mixed blade servers in a single enclosure
LED
Power LED, Fault LED
Networking Ethernet Switch – Up to 2x modules
 For compatibility, see the Blade Matrix or contact your Supermicro representative
 Switch Modules must be purchased separately
Management Module
1 CMM for remote system management with software
Management Module must be purchased separately
Power SuppliesUp to 8 hot-plug 2200W Titanium power supplies
  Cooling DesignUp to 8 cooling fans in PWS modules
3 optional cooling fan modules (PWS-DF005-2F)
 Dimensions (HxWxD)
14" x 17.6" x 32
Nodes
(Max Quantity: 20)
Barebone
Ethernet Switches
(Max Quantity: 2)
Power Protection
(Max Quantity: 4)
Accessories
Warranty
$0.00
