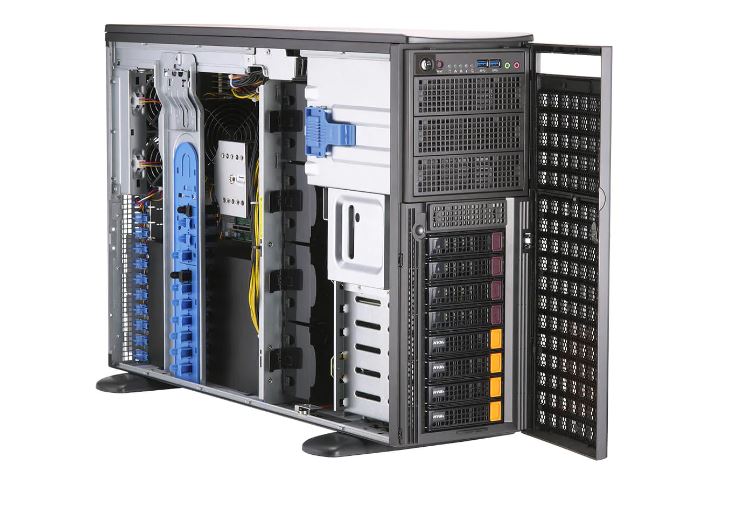

NTS Elite Studio 4U GPU Workstation Server 8 Drive Bays

DP Intel, Tower Workstation with 4 GPUs

Part#: STOI006G

Key Applications

Scientific Virtualization
High Performance Computing
Rendering
AI/Deep Learning Training

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- 4 PCIe 4.0 x16 (double-width) slots, 2 PCIe 4.0 x16 (single-width) slots,
- 1 PCIe 4.0 x8 LP
- Total 8x 3.5" Hot-swap drive bays
- Up to 8 NVMe drives (4 NVMe drives supported by default)
- 2 M.2 NVMe or SATA for boot drive only
4 Removable heavy duty fans w/ Optimal Fan Speed Control
2x 2200W redundant Titanium level power supplies

Configure & Buy Specifications

Form Factor	Full-Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 689 x 329 x 971mm (27.12" x 12.95" x 38.22")
Processor	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU
GPU	Max GPU Count: Up to 4 double-width or 6 single-width GPUs Supported GPU: NVIDIA PCIe: A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, A30, A16, A100, A10 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe
System Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration	Default: Total 8 bays 4 front hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 3.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) Peripheral Bays: 3 5.25" peripheral bays
Expansion Slots	Default 4 PCIe 4.0 x16 FHFL slots 2 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot
On-Board Devices	SATA: SATA (6Gbps) ; RAID 0/1/5/10 support Chipset: Intel® C621A Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2
Input / Output	1 VGA port
System Cooling	Fans: Up to 4 heavy duty fans with optimal fan speed control
Power Supply	1x 2200W Redundant Titanium Level (96%) power supply
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 57 lbs (25.85 kg) Net Weight: 52.9 lbs (24 kg) Available Color: black
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Barebone

4U GPU Server - 8x NVMe/SATA/SAS - Dual 10-Gigabit Ethernet - 2200W (1+1) Redundant

Processor

Memory

16GB PC4-25600 3200MHz DDR4 [+$243.92]
32GB PC4-25600 3200MHz DDR4 [+$452.24]
64GB PC4-25600 3200MHz DDR4 [+$1,109.84]
128GB PC4-25600 3200MHz DDR4 [+$4,155.20]

M.2 DRIVE

(Max Quantity: 2)

HARD DRIVE

(Max Quantity: 8)

U.2/U.3 NVMe Drive

(Max Quantity: 8)

Video Card

NVIDIA ® T400 4GB GDDR6 - PCIe 3.0 x16 - Active Cooling (3x mDP) NVIDIA Professional Graphics Processors [+$132.66]

GPU

(Max Quantity: 5)

GPU Bridge

(Max Quantity: 2)

NVIDIA® NVLink™ Bridge - 2-Slot Spacing - RTX A4500/A5000/A5500/A6000 100GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - A30 and A40 600GB [+$249.00]
AMD Instinct MI210 Bridge Connector Attaches 2x Instinct MI210 Cards [+$249.00]
AMD Instinct MI210 Bridge Connector Attaches 4x Instinct MI210 Cards [+$249.00]

CONTROLLER CARD

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]
Supermicro AOC-SLG4-4E4T - Quad-Port PCIe x16 Gen-4 Internal NVMe Host Bus Adapter (Retimer) SlimSAS NA PCI Express 4.0 x16 [+$172.49]

NETWORK ADAPTER

Trusted Platform Module

Supermicro AOM-TPM-9670V-S - Trusted Platform Module - TPM 2.0 - X11 X12 - Server Provisioned - Vertical [+$40.88]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

Monitor

VP229Q 21.5" LED-Backlit IPS Panel - 1920x1080 (FHD) 75Hz - ASUS VP229Q (HDMI, DP, VGA) [+$101.50]
VA24DQ 23.8" LED-Backlit IPS Panel - 1920x1080 (FHD) 75Hz - ASUS VA24DQ (HDMI, DP, VGA) [+$119.47]
VA27DQSB 27" LED-Backlit IPS Panel - 1920x1080 (FHD) - ASUS VA27DQSB (HDMI, DP, VGA) [+$160.83]
VP28UQG 28" LED-Backlit TN Panel - 3840x2160 (4K UHD) - ASUS VP28UQG [+$309.00]
VG289Q 28" LED-Backlit IPS Panel - 3840x2160 (4K UHD) - ASUS VG289Q (HDMI, DP) [+$237.46]
PA248QV 24" LED-Backlit IPS Panel - 1920x1200 (WUXGA) - ASUS PA248QV ProArt Display [+$175.51]
PA278QV 27" LED-Backlit IPS Panel - 2560x1440 (2K WQHD) - ASUS PA278QV [+$226.23]
PA329CV 32" LED-Backlit IPS Panel - 3840x2160 (4K UHD) - ASUS PA329CV ProArt Display [+$536.79]

5.25" Bay

LG 24x Super Multi DVD+/-RW with M-DISC (SATA) 48x CD-R, 24x DVD-R, 8x DVD-RW, 5x DVD-RAM, 4x M-DISC/+M [+$25.00]
LG 16x Super Multi Blu-Ray Disc Rewriter with M-DISC (SATA) 16x BD-R, 16x DVD+/-R, 48x CD-R [+$79.00]

OPERATING SYSTEM

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]
