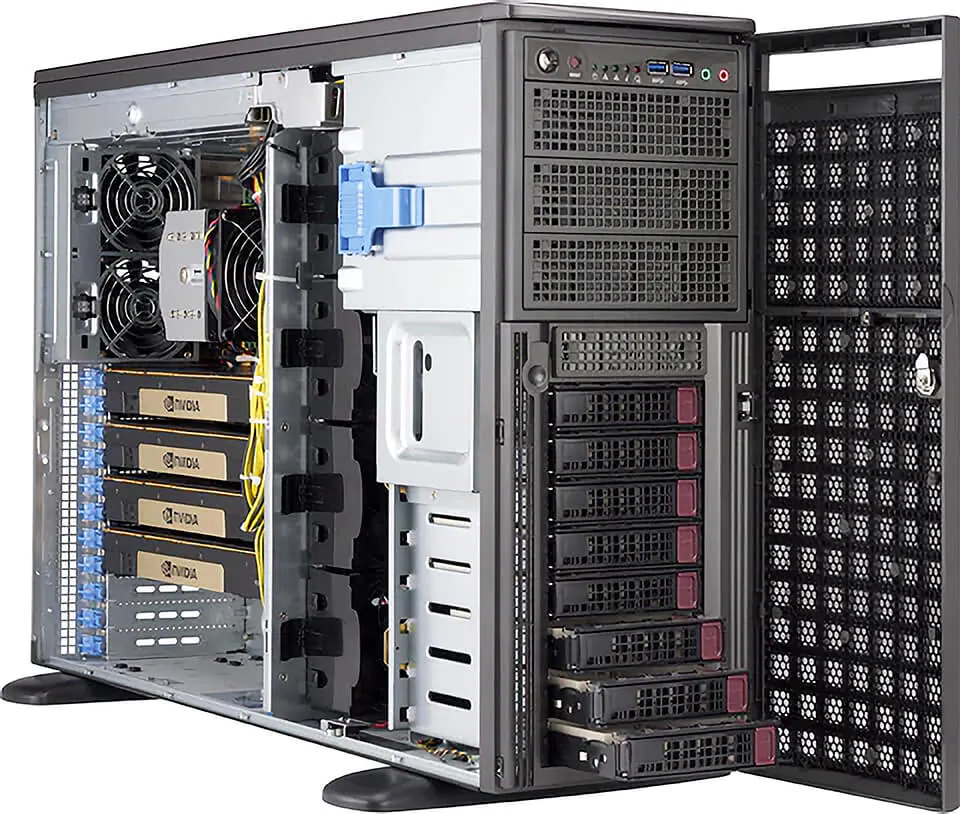

| Form Factor | Full-Tower Rackmount
Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71")
Package: 689 x 329 x 971mm (27.12" x 12.95" x 38.22") |
Processor
| Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Up to 40C/80T; Up to 60MB Cache |
| GPU | Max GPU Count: Up to 4 double-width or 4 single-width GPUs
Supported GPU: NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000 |
System Memory
| Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 3.5" SATA drive bays
M.2: 4 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
Peripheral Bays: 3 5.25" bays |
| Expansion Slots | Default
7 PCIe 4.0 x16 FHFL slots |
On-Board Devices
| SATA: SATA (6Gbps)
Chipset: Intel® C621A
Network Connectivity: 1 RJ45 1GbE with Intel® I210-AT
1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
1 RJ45 10GbE with Marvell® AQC113
|
Input / Output
| USB: 2 USB 2.0 ports(header)
2 USB 2.0 ports(rear)
2 ports(header)
4 ports(rear)
Video: 1 VGA port
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 4x 92mm Fan(s)
Up to 2x 80mm Fan(s)
|
Power Supply
| 1x 2200W Redundant Titanium Level (96%) power supply
|
System BIOS
| BIOS Type: AMI 256MB SPI Flash
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
|
Dimensions and Weight
| Weight: Gross Weight: 57 lbs (25.85 kg)
Net Weight: 52.9 lbs (24 kg)
Available Color: black
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
