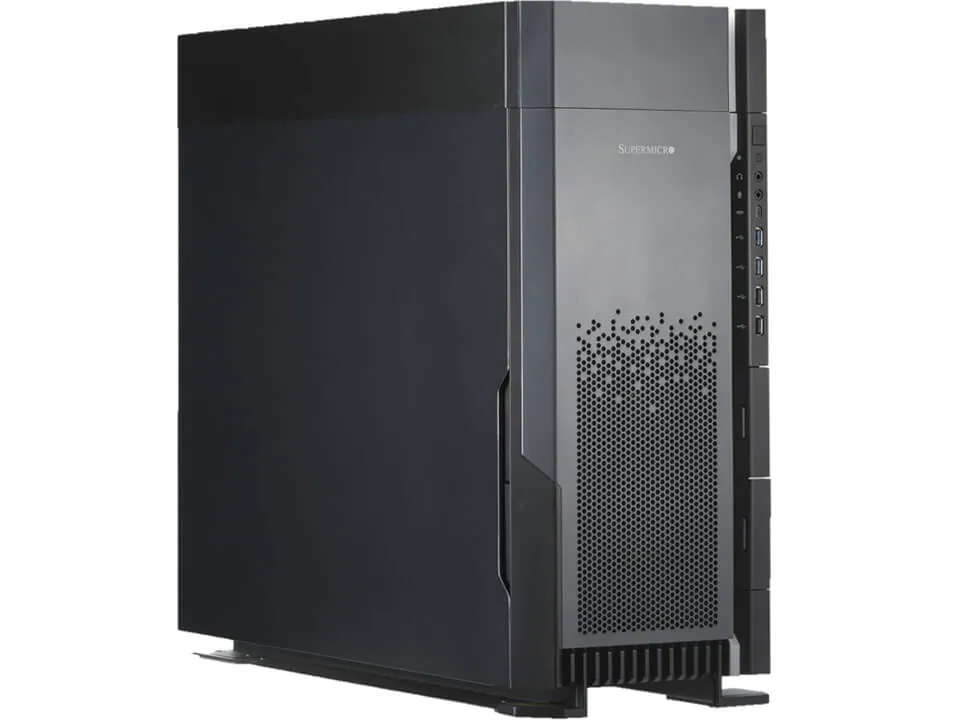

| Form Factor | Tower or 5U Rackmount
Enclosure: 221 x 536 x 574mm (8.7" x 21.1" x 22.6")
Package: 371 x 701 x 711mm (14.6" x 27.6" x 28") |
Processor
| Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 2 double-width GPUs
Supported GPU:
NVIDIA PCIe: T400, RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada
Generation
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe |
System Memory
| Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 4 bays
4 front fixed 3.5" NVMe/SAS*/SATA drive bays
Option A: Total 6 bays
4 internal fixed 3.5" NVMe/SATA drive bays
2 front fixed 2.5" SATA drive bays
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 NVMe slots (M-key 2280/22110)
Peripheral Bays: 2 5.25" bays (optional) |
| Expansion Slots | Default
5 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x8 FHHL slot |
On-Board Devices
| SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE
|
Input / Output
| LAN: 2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
USB: 2 USB 2.0 Type-A ports(front)
2 USB 3.2 Gen1 Type-A ports(front)
1 USB 3.2 Gen2 Type-C port(Front)
1 USB 3.2 Gen2 Type-A port(Header)
|
System Cooling
| Fans: Up to 3x 12cm Fan(s)
|
Power Supply
| 1x 2000W Platinum Level (92%) power supply
|
System BIOS
| BIOS Type: AMI 32MB SPI FLASH ROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
FAN: Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
CPU: Monitors for CPU Cores, Chipset Voltages, Memory
|
Dimensions and Weight
| Weight: Gross Weight: 59.5 lbs (27 kg)
Net Weight: 56.2 lbs (25.5 kg)
Available Color: Black
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
