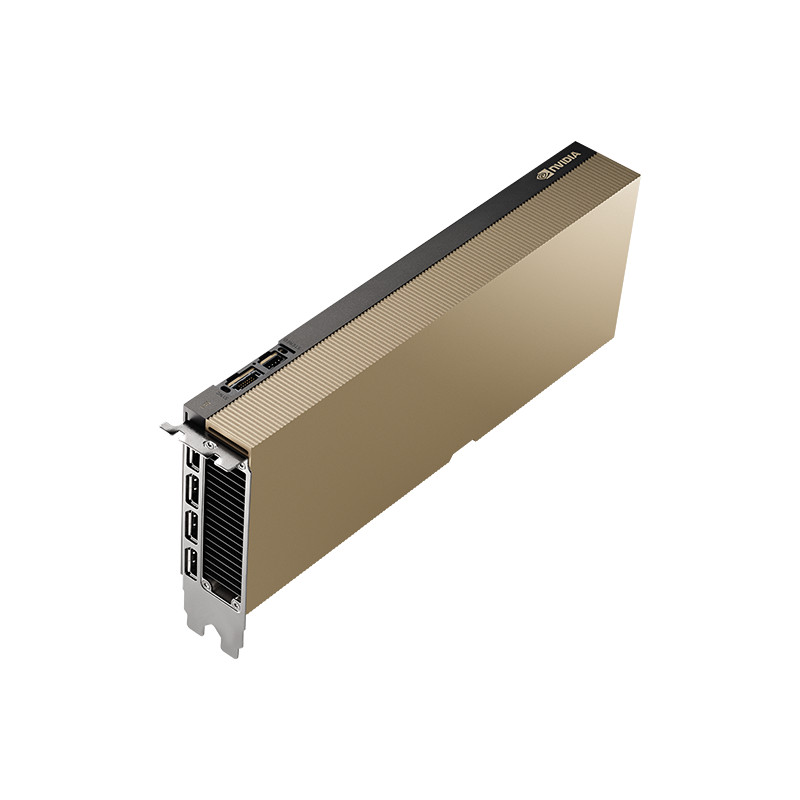

Picture of NVIDIA L40S data center GPU, Ada

NVIDIA L40S data center GPU, Ada

Part#: NVL40STCGPU-KIT

  • 48 GB GDDR6 GPU memory with ECC

  • 18,176 CUDA cores & 568 Tensor Cores

  • High-performance AI, graphics, and rendering

  • Enterprise-ready, 24/7 data center design

  • Supports vGPU, NVENC/NVDEC, and AV1

Specifications
Specifications
GPU ArchitectureNVIDIA Ada Lovelace Architecture
GPU Memory48GB GDDR6 with ECC
Memory Bandwidth864 GB/s
CUDA® Cores18,176
RT Cores142
Tensor Cores568
RT Core Performance212 TFLOPS
FP3291.6 TFLOPS
 TF32 Tensor Core366 TFLOPS
BFLOAT16 Tensor Core366 I 7332 TFLOPS
FP16 Tensor Core366 I 7332 TFLOPS
  FP8 Tensor Core733 I 14662 TFLOPS
Peak INT8 Tensor733 I 14662 TOPS
Peak INT4 Tensor733 I 14662 TOPS
Form Factor4.4" (H) x 10.5" (L), dual slot
Display Ports4 x DisplayPort 1.4a
Max Power Consumption350W
Power Connector16-pin
ThermalPassive
Virtual GPU (vGPU) Software SupportYes
NVENC I NVDEC3x l 3x (Includes AV1 Encode and Decode)
Secure Boot with Root of TrustYes
NEBS ReadyLevel 3
MIG SupportNo
$7,122.00
