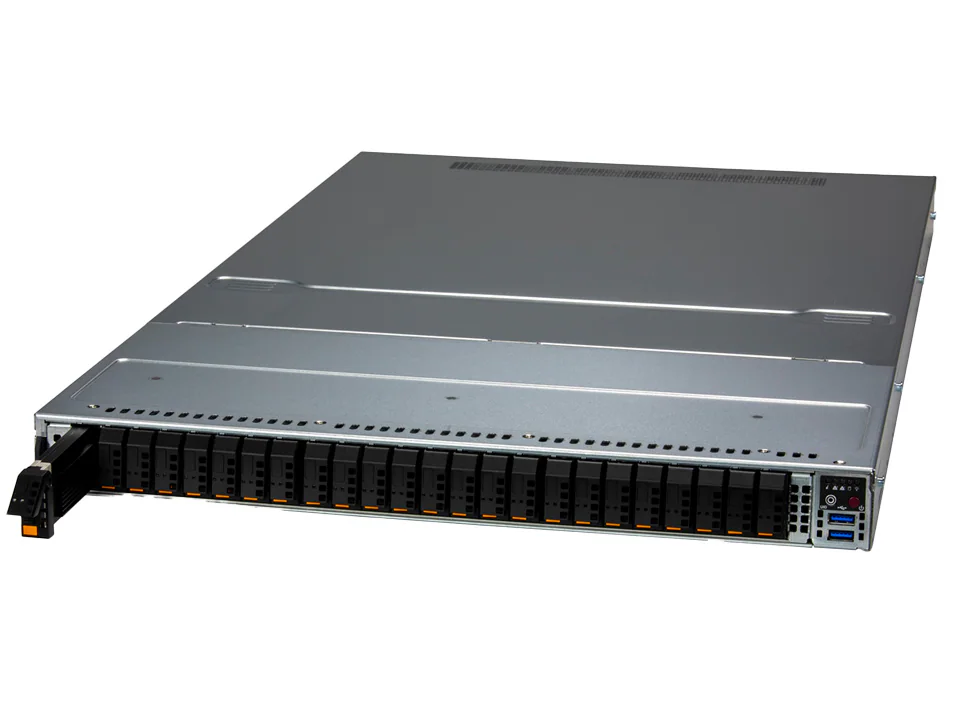

| Form Factor | 1U Rackmount
Enclosure: 438.4 x 43.6 x 773.25mm (17.2" x 1.7" x 30.4")
Package: 604.774 x 199.898 x 1029.97mm (23.81" x 7.87" x 40.55") |
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
| Drive Bays | Default: Total 24 bays
24 front hot-swap E1.S NVMe drive bays
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Expansion Slots | Default: 2 PCIe 5.0 x16 FHFL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | Chipset: Intel® C741
Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports (rear), 2 USB 3.0 ports (front)
Video: 1 VGA port |
| System Cooling | Fans: 8 Heavy Duty 4cm Fan(s)
Air Shroud: 2 Air Shrouds |
| Power Supply | 2x 2000W Redundant Titanium Level (96%) Hot-plug power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| PC Health Monitoring | CPU: Monitors for CPU Cores, Chipset Voltages, Memory 7 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
|
