| Main Specifications |

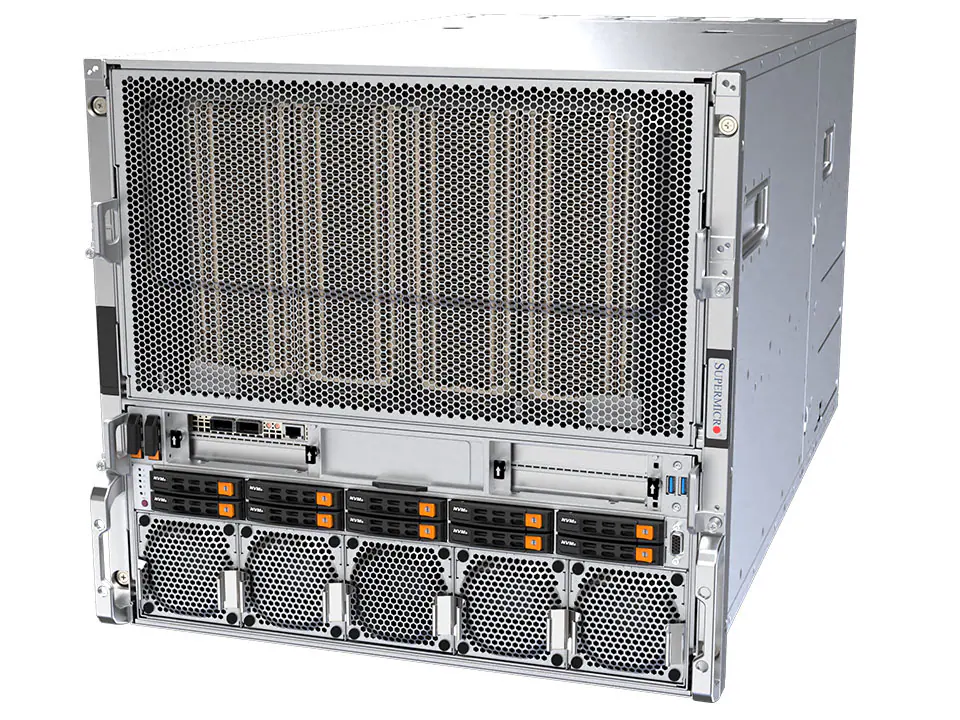

| Device Type | DP Intel 10U System with NVIDIA HGX B200 8-GPU | |
| Built-in Devices | SYS-A22GA-NBRT-G1 | |
| Form Factor | 10U Rackmount | |
| Dimensions (WxDxH) | 17.2" (438.8 mm) 17.6" (449 mm) 33.2" (843.28 mm) | |
| Weight | Gross Weight: 341 lbs (155 kg)Net Weight: 293 lbs (133 kg) | |
| GPU |
| Max GPU Count | 8 onboard GPUs | |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ | |
| Processor |
| Processor | Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores | |
| System Memory |
| Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM | |
| Drive Bays |
| Hard Drive | Default: Total 10 bays
10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) | |
| On-Board Devices |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 | |
| Chipset | System on Chip | |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.0 ports(rear) | |
| Video Output | 1 VGA port | |
| System BIOS |
| BIOS Type | AMI 64MB SPI UEFI | |
| Power |
| AC Input Voltage | 5250W: 200-240Vac / 50-60Hz | |
| Power Supply Installed | 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies | |
| Environment |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) | |
| Relative Humidity | 8% to 90% (non-condensing) | |
