What are the primary technical specifications and target workloads for the 2U Rack Server R2-AM-475568?

The 2U Rack Server R2-AM-475568 is a high-density dual-socket ARM platform powered by dual Ampere Altra Max processors supporting up to 256 physical cores. This 2u server is optimized for cloud-native workloads, high-density virtualization, and multi-core database deployments. It features 32 DDR4 DIMM slots, 12 hybrid drive bays, and dual 2000W redundant Platinum power supplies.

How does the Ampere Altra Max processor architecture in the GigabyteR282-P92 benefit high-density virtualization?

This server utilizes dual Ampere Altra Max ARM64 processors to deliver up to 256 physical cores without hyperthreading, ensuring predictable performance and single-thread isolation for virtual machines. The high core density of this 2u rack platform allows cloud architects to maximize VM allocation per rack unit while maintaining low power consumption.

Can federal agencies and public sector entities procure the 2U Rack Server R2-AM-475568 via NASA SEWP V or ITES-4H contracts?

Yes, the 2U Rack Server R2-AM-475568 is available for public sector procurement through NASA SEWP V, ITES-4H, and various SLED cooperative purchasing contracts. Government procurement officers can request structured quotes for this ARM-based server to meet federal energy efficiency and cloud-first mandates.

How customizable is 2U Rack Server R2-AM-475568, and what is a realistic lead time?

CPU, memory, storage, accelerators, power, and networking are selectable in Configure and Buy, with engineer-to-order options when catalog builds are not enough. Catalog configurations often ship in weeks when silicon is available; custom clusters call out long-lead parts at quote. Every system receives Fremont burn-in, imaging as required, and a documented acceptance package.

1 / 5

Available through

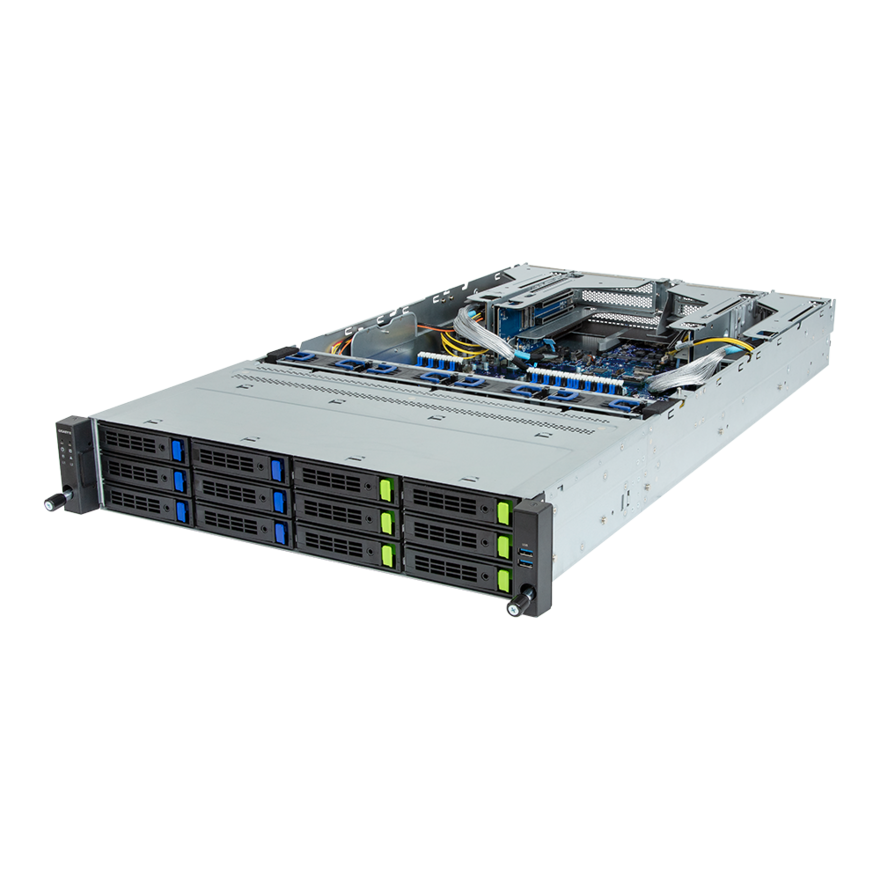

2U Rack Server R2-AM-475568

MPN GigabyteR282-P92

2U Rack Server R2-AM-475568: Ampere Altra Max Dual-Processor ARM Platform High-Density 2U DP Server with 12-Bay Gen4 NVMe/SATA Storage for Cloud-Native Workloads Product Overview The Rac…

Key capabilities

Supports up to 2 x Dual slot Gen4 GPU cards
Ampere® Altra® Max Processors
Dual processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs, Dual ROM Architecture
Dual 2000W 80 PLUS Platinum redundant power supply
Dual Ampere® Altra® Max Processors: Supports up to 256 physical ARM64 cores (128 cores per socket) to maximize multi-threaded compute density and eliminate virtualization overhead.

Part#: R2-AM-475568

Key applications

GEO · procurement facts

At a glance

Structured summary for architects, buyers, and assistants evaluating this platform.

2U Rack Server R2-AM-475568: Ampere Altra Max Dual-Processor ARM Platform High-Density 2U DP Server with 12-Bay Gen4 NVMe/SATA Storage for Cloud-Native Workloads Product Overview The RackmountNTS R2-AM-475568 is a high-performance, energy-efficie...

Buyers use this page to confirm form factor, accelerator and storage options, and contract-ready quoting. Configure CPU, memory, GPU, drives, and networking below; NTS returns a validated BOM with firmware baselines, burn-in evidence, and CLIN-aligned documentation for SEWP V, ITES-4H, GSA, and SLED cooperatives when your program requires them.

Integration is owned end-to-end: rack elevation, power and cooling checks, imaging, and serial-tracked acceptance—so site install is not a first-time assembly. Lifecycle support follows the same staging records used at handoff.

Product: 2U Rack Server R2-AM-475568
Part number: GigabyteR282-P92
Category: Systems › Ampere Servers
Form factor: 2U rackmount
Typical workloads: virtualization, private cloud, and enterprise applications
Configuration: Engineer-to-order via Configure (CPU, memory, GPU, storage, networking).
Procurement: Federal, defense, and SLED contract vehicles
Vendor: RackmountNTS (New Tech Solutions, Inc.), Fremont, California, USA.
Facility: ISO-aligned staging, imaging, and burn-in at NTS HQ in Fremont, CA.

2U Rack Server R2-AM-475568 is quoted engineer-to-order by New Tech Solutions (RackMountNTS). Use Configure to select CPU, memory, accelerators, storage, and networking; NTS validates power, cooling, firmware, and drivers in Fremont, California before systems ship.

Federal, defense, and SLED programs can align the same BOM to SEWP V, ITES-4H, GSA MAS, or cooperative vehicles when the SOW allows. Commercial buyers receive the same staging discipline, serial-tracked acceptance, and lifecycle support path after handoff.

Share workload notes, target GPU or CPU counts, fabric preference (Ethernet, InfiniBand, or NVLink where applicable), rack power budget, and delivery window through contact NTS or Request a Quote. We return a validated option set with lead times, dual-source notes when required, and a package ready for contracting review.

Related reading: AI and GPU infrastructure, data center and HPC, BOM validation, and contract vehicles. From pilot nodes to multi-rack cells, NTS keeps one design authority across chassis, accelerators, and storage so scale-out does not restart engineering after the first system lands.

After you select options in Configure, pricing updates in real time. Request a Quote to receive a package with lead times, dual-source notes when required, and acceptance documentation aligned to your receiving process. Gold SKUs ship as fixed platforms; configurable SKUs remain engineer-to-order with the same Fremont staging path.

Questions about GPU count, liquid cooling, InfiniBand or Ethernet fabrics, storage density, or contract-vehicle packaging can be answered from this page’s overview, FAQ, and Configure workbench—or by contacting an NTS specialist with your draft BOM.

NTS supports commercial, federal, defense, and SLED buyers with the same engineering process: design review, parts validation, assembly, firmware and driver prep, and ship-ready documentation from our Fremont facility.

Product overview

Highlights and workloads for 2U Rack Server R2-AM-475568.

Overview

2U Rack Server R2-AM-475568: Ampere Altra Max Dual-Processor ARM Platform

High-Density 2U DP Server with 12-Bay Gen4 NVMe/SATA Storage for Cloud-Native Workloads

Product Overview

The RackmountNTS R2-AM-475568 is a high-performance, energy-efficient 2U rackmount server powered by dual Ampere® Altra® Max ARM processors. Designed to meet the rigorous demands of modern cloud-native infrastructures, this dual-socket (DP) platform delivers unprecedented core density, exceptional performance-per-watt, and highly scalable I/O throughput. Featuring 12 hot-swappable hybrid drive bays supporting PCIe Gen4 NVMe and SATA interfaces, the R2-AM-475568 is engineered for data-intensive applications, virtualization, and high-density cloud deployments.

Key Features & Benefits

Dual Ampere® Altra® Max Processors: Supports up to 256 physical ARM64 cores (128 cores per socket) to maximize multi-threaded compute density and eliminate virtualization overhead.
Next-Gen Storage Flexibility: 12 hot-swappable 3.5"/2.5" drive bays supporting ultra-fast PCIe Gen4 NVMe or high-capacity SATA drives for optimized storage tiering.
Massive Memory Footprint: Multi-channel DDR4 ECC Registered memory slots delivering high-bandwidth performance for memory-intensive enterprise workloads.
PCIe Gen4 Expansion: High-speed expansion slots supporting advanced networking (up to 100GbE/200GbE NICs), OCP 3.0 cards, and hardware accelerators.
Eco-Friendly Efficiency: Exceptional performance-per-watt metrics reduce Total Cost of Ownership (TCO) and lower data center carbon footprints.

Technical Specifications

Specification	Details
Model	R2-AM-475568
Form Factor	2U Rackmount
Processor Architecture	Dual (DP) Ampere® Altra® / Altra® Max (ARM64 up to 256 Cores)
Memory Support	DDR4 ECC Registered, Multi-Channel Architecture
Storage Bays	12x Hot-Swap 3.5"/2.5" Hybrid Bays (PCIe Gen4 NVMe / SATA)
Expansion Slots	PCIe Gen4 x16 / x8 slots, OCP 3.0 mezzanine card support
Network Connectivity	Integrated IPMI 2.0 dedicated management port, customizable LAN options
Power Supply	Redundant High-Efficiency 80 PLUS Titanium/Platinum Power Supplies
Management	ASPEED AST2600 BMC, IPMI 2.0 compliant with Redfish support

Optimized Workloads

The R2-AM-475568 is optimized for modern enterprise environments, including:

Cloud-Native Applications: Microservices, containerized deployments (Kubernetes), and serverless architectures.
High-Density Virtualization: Maximizing VM density per rack unit with predictable, single-threaded core performance.
Data Analytics & Databases: Fast data processing utilizing high-throughput PCIe Gen4 NVMe storage arrays.
Content Delivery Networks (CDN): High-bandwidth edge streaming and low-latency caching.

Key Applications

2U DP 12-Bay Gen4 NVMe/SATA
Rack Arm Server - Ampere® Altra® Max

Key Features

Supports up to 2 x Dual slot Gen4 GPU cards
Ampere® Altra® Max Processors
Dual processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs, Dual ROM Architecture
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x Dedicated management port
6 x 3.5"/2.5" Gen4 NVMe hot-swappable bays
6 x 3.5"/2.5" SATA hot-swappable bays
1 x M.2 slot with PCIe Gen4 x4 interface
2 x FHFL PCIe Gen4 x16 slots for GPUs
2 x FHHL PCIe Gen4 x16 slots
4 x LP PCIe Gen4 x8 slots
2 x OCP 3.0 Gen4 x16 slots
Dual 2000W 80 PLUS Platinum redundant power supply

Why teams choose NTS

Engineer-to-order platforms with U.S. integration, federal contract paths, and workload-aware BOM review — not catalog-only SKUs.

Enterprise rack servers configured for U.S. integration and delivery

Built in the USA

Configuration, burn-in, and rack staging from Fremont, California with nationwide delivery.

Contract-native quoting

ITES-4H, SEWP V, and OMNIA Partners paths with CLIN-ready BOM structure.

Engineer-to-order

Choose CPU, memory, pcie expansion, storage, network, and redundant power per workload.

Rack-ready delivery

Serial capture for CMDB, integration validation, and specialist turn-up support.

Platform at a Glance

2U server chassis staged for factory burn-in and rack-ready deployment

2U Chassis

Custom engineer-to-order 2u chassis featuring rigorous factory burn-in, thermal validation, and seamless rack-ready deployment.

Enterprise server PCIe expansion with NICs, HBAs, and accelerator cards

Enterprise Expansion

High-bandwidth PCIe Gen 4/5 expansion slots supporting high-speed NICs, SAS/SATA/NVMe HBAs, and dedicated hardware accelerators.

U.S. Integration

Secure U.S.-based configuration, multi-point validation, and compliant logistics tailored for federal, defense, and SLED programs.

Procurement specialist preparing federal and SLED contract quotes

Contract Quoting

Streamlined procurement via ITES-4H, NASA SEWP V, and SLED cooperative contracts with pre-negotiated pricing.

Delivery & Integration Lifecycle

From initial BOM design to production-ready deployment, our dedicated engineering team manages the complete lifecycle of your 2U Rack Server R2-AM-475568.

NTS engineers staging server racks with structured cabling before datacenter deployment

Build & Burn-In
Precision factory assembly, custom firmware baselining, rigorous stress testing, and comprehensive asset documentation prior to shipment.
Rack Integration
Structured cabling, optimized power distribution, and comprehensive in-rack validation aligned with your specific data center standards.
Image & Tag
Custom OS/hypervisor imaging, host-name provisioning, and automated serial/asset tag capture for seamless CMDB and ITAM integration.
Deliver & Support
Secure, coordinated logistics combined with post-delivery engineering support to ensure rapid, hassle-free site turn-up.

Enterprise server architecture with compute, storage, and expansion tiers

System Architecture

2U Rack Server R2-AM-475568 is a high-density, storage-optimized platform engineered for sustained I/O throughput, front-serviceable hot-swap drive bays, and seamless capacity scaling without disruptive forklift upgrades.

Right-size CPU, memory, and I/O in an engineer-to-order BOM — validated and burn-tested in Fremont before ship
Add NICs, HBAs, and accelerators through PCIe expansion without chassis constraints
Scale east-west and cluster traffic on 10/25/100GbE-class networking without platform upgrades
Match storage latency to workload — NVMe, SAS, or SATA tiers in the same chassis
Keep mission workloads online with redundant power and cooling for 24×7 operation
Image, monitor, and troubleshoot remotely from day one via IPMI / BMC

Federal procurement specialist reviewing contract compliance documentation alongside secure server integration

Procurement & Compliance

Procure 2U Rack Server R2-AM-475568 through SEWP V, ITES-4H, and SLED cooperative contracts. Benefit from CLIN-ready BOM structures, full compliance documentation, and secure delivery coordinated by our Fremont integration specialists.

Acquire federal, DoD, and public-sector quotes precisely mapped to your contract CLINs, funding cycles, and periods of performance
Access complete Trade Agreements Act (TAA) compliance and country-of-origin documentation for seamless contracting officer approval
Streamline agency acquisition reviews with detailed Energy Star ratings and power-efficiency metrics
Maintain strict property accountability with pre-captured serial numbers, MAC addresses, and custom asset tags for audit-ready tracking
Ensure compliance with FIPS 140-3 and NIST SP 800-53 security standards through pre-award engineering consultations
Coordinate secure, scheduled delivery windows directly with your ACO or COR, arriving fully integrated and rack-ready

SEWP V ITES-4H SLED Cooperatives CLIN-ready BOM Fremont, CA

Contract vehicles for this SKU are listed under Available through next to the product image. Explore SEWP V, ITES-4H, GSA, and SLED procurement paths →

Ideal Use Cases

Enterprise deployment scenarios where 2U Rack Server R2-AM-475568 delivers optimal price-performance, high reliability, and simplified serviceability.

Virtualization

Consolidate VMs with predictable CPU and I/O headroom.

Enterprise application hosting on NTS dual-socket servers

Enterprise Applications

Run ERP, databases, and line-of-business stacks.

Compact NTS systems for edge and ROBO deployments

Edge & ROBO

Deploy closer to users with a compact rack footprint.

Research Computing

Support engineering and scientific simulation tiers.

Private Cloud

On-prem IaaS with configurable compute and storage.

VDI session hosts on NTS rack and tower platforms

VDI

Session density with balanced CPU, GPU, and storage.

Common workload profiles

Typical deployment patterns aligned to 2U Rack Server R2-AM-475568 capacity, I/O profile, and service tiers.

Next Steps

Move from evaluation to a validated deployment for 2U Rack Server R2-AM-475568 — engineer-to-order BOMs, contract pricing, and rack-ready integration from one U.S. program team.

Configure and quote engineer-to-order BOM for 2U Rack Server R2-AM-475568

U.S. integration in Fremont, CA · SEWP V & ITES-4H quoting · Engineer-to-order lead times on request

Frequently Asked Questions

Common technical and procurement topics for 2U Rack Server R2-AM-475568. Additional questions are handled by our specialists and knowledge base.

Need architecture guidance or a formal quote?

Talk to a Specialist Configure This System

Service & Trust

Coverage, procurement, and domain expertise for Ampere Servers platforms — backed by U.S. integration and contract-native quoting.

Built & Supported in the USA Factory-aligned configuration, validation, burn-in, and rack integration from Fremont, CA — with nationwide logistics for federal and commercial programs.
Nationwide Coverage Delivery and post-sales engineering across all U.S. regions — defense, civilian agency, higher education, and commercial data center.
Contract-Native Quoting CLIN-aligned BOMs for ITES-4H, SEWP V, and SLED cooperative vehicles — view all contract paths.
Ampere Servers Expertise Dedicated solution architects for AI, HPC, virtualization, storage, and edge — from first quote through rack turn-up.

How NTS configures and delivers 2U Rack Server R2-AM-475568

New Tech Solutions (RackMountNTS) treats 2U Rack Server R2-AM-475568 as engineer-to-order programs—not drop-ship SKUs. We validate power, cooling, PCIe or NVLink topology, fabric attach, imaging, and spare FRUs in Fremont, California before systems ship so receiving teams start from a known-good baseline.

Federal, defense, and SLED buyers can align the same BOM to SEWP V, ITES-4H, GSA MAS, OMNIA, NASPO, TIPS, Texas DIR, and other vehicles listed on our contracts pages when scope allows. Commercial and research teams get the same staging discipline without the CLIN wrapper.

Share a draft part list, workload notes, and delivery constraints through contact NTS. We return options with lead times, dual-source notes when required, and a quote package ready for contracting review. Related guides: AI and GPU infrastructure, data center and HPC, and BOM validation best practices.

From pilot nodes to multi-rack cells, NTS keeps one design authority across chassis, fabric, and storage so scale-out does not restart engineering from scratch after the first rack lands.

Every platform listed here can be quoted with validated options for CPU, memory, accelerators, storage, and networking. NTS documents the as-built configuration, serials, and acceptance notes so receiving and cybersecurity teams have a clear baseline when the hardware arrives. Ask for a pilot node or a multi-rack cell — the design authority stays the same. For SEWP V, ITES-4H, GSA MAS, and cooperative vehicles, keep the technical BOM identical and wrap the CLIN language at quote time.
