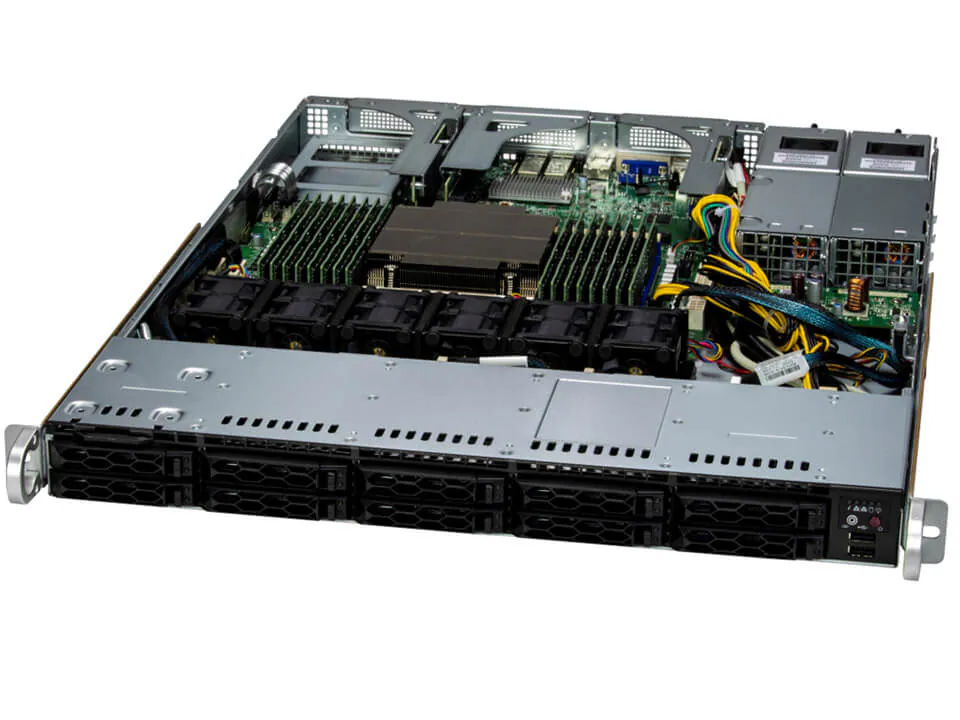

NTS Elite Command 1U Ampere Altra ARM Cloud Server

Purpose-Built 1U Platform for Hyperscale Infrastructure

NTS Elite Command is a 1U, single-socket MegaDC server designed for enterprise and hyperscale data center deployments. Powered by Ampere^® Altra^® and Altra^® Max processors, it delivers high core density, consistent performance-per-watt, and modern I/O for cloud-native and front-end infrastructure workloads. With support for up to 10 hot-swap U.2 NVMe bays, flexible PCIe Gen4 expansion, and integrated remote management via IPMI 2.0 and KVM-over-LAN, this platform enables efficient scale-out with operational simplicity.

Core Technology Aligned with Data Center Demands

- Single-socket Ampere Altra / Altra Max support, up to 128 cores and up to 250W TDP
- 16 DIMM slots with up to 4TB ECC DDR4-3200 RDIMM/LRDIMM capacity
- 3x PCIe 4.0 x16 low-profile slots plus 1x AIOM slot (OCP 3.0 compatible)
- Dual 25GbE SFP28 LAN via Mellanox ConnectX-4 Lx EN controller
- 10x front 2.5" hot-swap U.2 NVMe drive bays for high-speed storage density
- Redundant 1+1 800W high-efficiency power supplies (Platinum/Titanium by SKU)
- Built-in IPMI 2.0, virtual media, dedicated BMC LAN, and KVM-over-LAN support

High Core Density

Support for Ampere Altra and Altra Max processors provides up to 128 cores in a single 1U node, ideal for scale-out cloud and infrastructure services.

Memory Capacity at Scale

16 DIMM slots and up to 4TB ECC DDR4-3200 memory allow strong consolidation for data-intensive, containerized, and virtualized workloads.

Fast NVMe Storage

Ten front hot-swap 2.5" U.2 NVMe bays enable low-latency storage performance and rapid serviceability in dense rack deployments.

Flexible Expansion

Three PCIe 4.0 x16 LP slots and one OCP 3.0 AIOM slot provide adaptability for networking, acceleration, and storage controllers.

Efficient Power Design

Redundant 800W 1+1 power supplies with high efficiency ratings help reduce operational cost while maintaining continuous uptime.

Enterprise Remote Management

Integrated IPMI 2.0 with virtual media and KVM-over-LAN simplifies remote provisioning, monitoring, and troubleshooting in distributed environments.

Balanced Performance for Hyperscale

Optimized for Enterprise, Front-End, and Infrastructure Workloads

NTS Elite Command combines Arm-based high core-count compute, robust NVMe storage density, and 25GbE networking in a compact 1U form factor. This architecture is ideal for web front-end tiers, microservices, distributed storage, and modern cloud infrastructure where predictable performance, energy efficiency, and scalability are critical. The platform also includes dedicated management networking, standard rear and front USB interfaces, VGA output, and serial connectivity for operational flexibility in production data centers.

Thermal and Power Optimization

Up to six heavy-duty fans with thermal controls and redundant high-efficiency power supply design help maintain stable operation under sustained load.

Service-Friendly Design

Front-access hot-swap NVMe bays and standardized 1U rackmount architecture simplify hardware replacement and reduce maintenance windows.

Network Ready

Native dual 25GbE SFP28 plus dedicated 1GbE BMC LAN provide high-throughput data and isolated management networking out of the box.

High Availability Foundations

Redundant power and remote management capabilities support uptime-focused deployment strategies in enterprise and hyperscale operations.

Operational Monitoring

Platform health monitoring covers CPU, memory, fan, voltage, and thermal telemetry to streamline proactive maintenance.

Flexible Regional SKUs

Available in standard and EU variants with different PSU options, helping align deployments with local power and efficiency requirements.

Value-added Management

IPMI & KVM-over-LAN

NTS Elite Command includes support for IPMI 2.0 with virtual media over LAN and KVM-over-LAN, enabling remote provisioning and lifecycle management.

Dedicated BMC network port helps isolate management traffic and improve security and administrative control.

Browser-based remote operations simplify firmware updates, system health monitoring, and fault diagnostics.

Hardware telemetry across CPU, memory, fan, and temperature domains supports preventive operations and faster incident response.

Deployment and Lifecycle Management

Designed for enterprise and hyperscale environments, NTS Elite Command Integrates standards-based management and expansion flexibility to streamline deployment and long-term operations. With support for remote control, robust health monitoring, and modular I/O growth via PCIe and AIOM, this platform can be integrated efficiently into modern data center workflows.

Remote Control: IPMI 2.0 and KVM-over-LAN for secure out-of-band administration.
Telemetry: Continuous monitoring of key hardware metrics for operational visibility.
Scalable I/O: PCIe Gen4 and OCP 3.0 AIOM support for evolving network/storage needs.
Storage Density: 10 hot-swap U.2 NVMe front bays for performance-centric deployment models.
Power Resilience: 1+1 redundant high-efficiency PSU architecture for uptime-focused environments.
