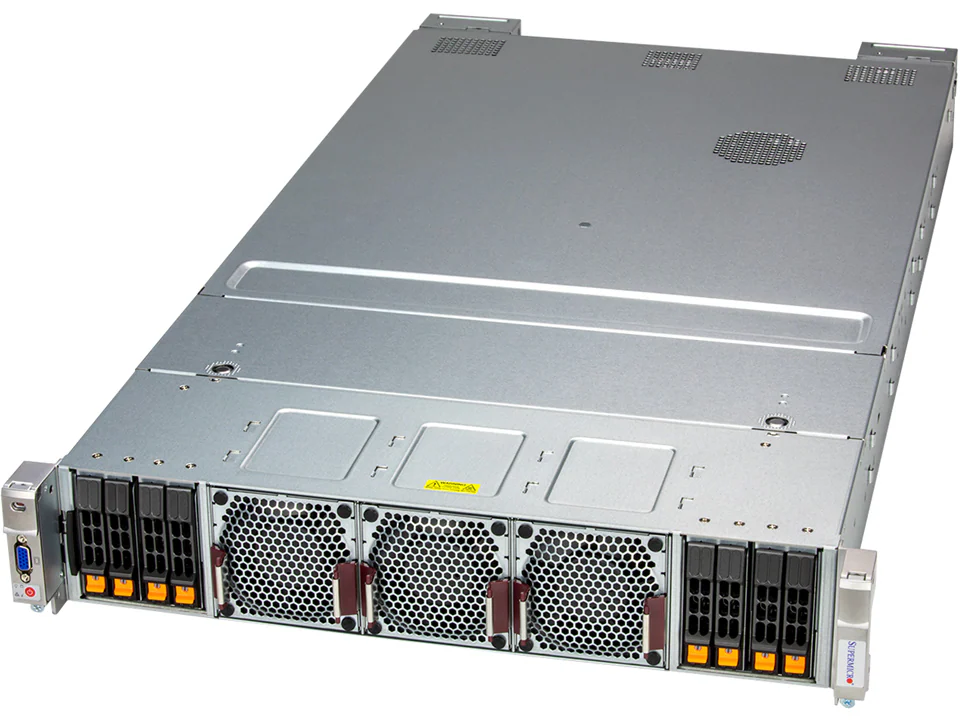

| Form Factor | 2U Rackmount
Enclosure: 438.4 x 88 x 848.7mm (17.3" x 3.5" x 33.4")
Package: 701 x 293 x 1183mm (27.6" x 11.53" x 46.57") |
Processor
| Quad Socket SH5
AMD Instinct™ MI300A Accelerated Processing Units (APUs) |
| GPU | Max GPU Count: 4 onboard GPUs
Supported GPU: AMD: Instinct™ MI300A APU |
System Memory
| Slot Count: Onboard Memory
Max Memory: Up to 512GB ECC HBM3 |
| Drive Bays Configuration | Default: Total 8 bays
8 front fixed 2.5" NVMe drive bays
Option A: Total 8 bays
8 front fixed 2.5" SAS*/SATA* drive bays
(*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default
4 PCIe 5.0 x16 FHFL slots
Option A*
4 PCIe 5.0 x16 FHFL slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
On-Board Devices
| Chipset: AMD SH5
Network Connectivity: Via AIOM
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
2 USB 2.0 ports(front)
Video: 1 VGA port
1 DisplayPort port
Serial: 1 COM port(rear)
|
System Cooling
| Fans: Up to 3 Heavy duty counter-rotating 8cm Fan(s)
Liquid Cooling: Direct to Chip (D2C) Cold Plate
|
Power Supply
| 4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Super
Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 101.1 lbs (45.86 kg)
Net Weight: 78 lbs (35.38 kg)
Available Color: Silver
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
