| Dimensions | 2U (W448 x H87.5 x D800 mm) |
Motherboard
| MS43-G20 |
| CPU | 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Dual processor, TDP up to 225W |
Socket
| 2 x LGA 4677 (Socket E) |
| Chipset | Intel C741 |
| Memory | 8-Channel DDR5 RDIMM, 24 x DIMMs
[5th Gen Intel Xeon] Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
[4th Gen Intel Xeon] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| LAN | 2 x 10Gb/s LAN (Intel X710-AT2), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x VGA port
|
Storage
| Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS
4 x 2.5" SATA/SAS
|
RAID
| Intel SATA RAID 0/1/10/5
Onboard VROC key header
Support optional RAID add-in cards
|
PCIe Expansion Slots
| 16 x FHFL PCIe Gen5 x16, for GPUs
2 x LP PCIe Gen5 x16, for add-in cards
|
I/O Ports
| Rear:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s |
| TPM | 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| Dual 3000W 80 PLUS Titanium redundant power supply
AC Input: 100-240V
|
| System Management | ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface |
| System Fans | 8 x 80x80x38mm |
| Operating Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |

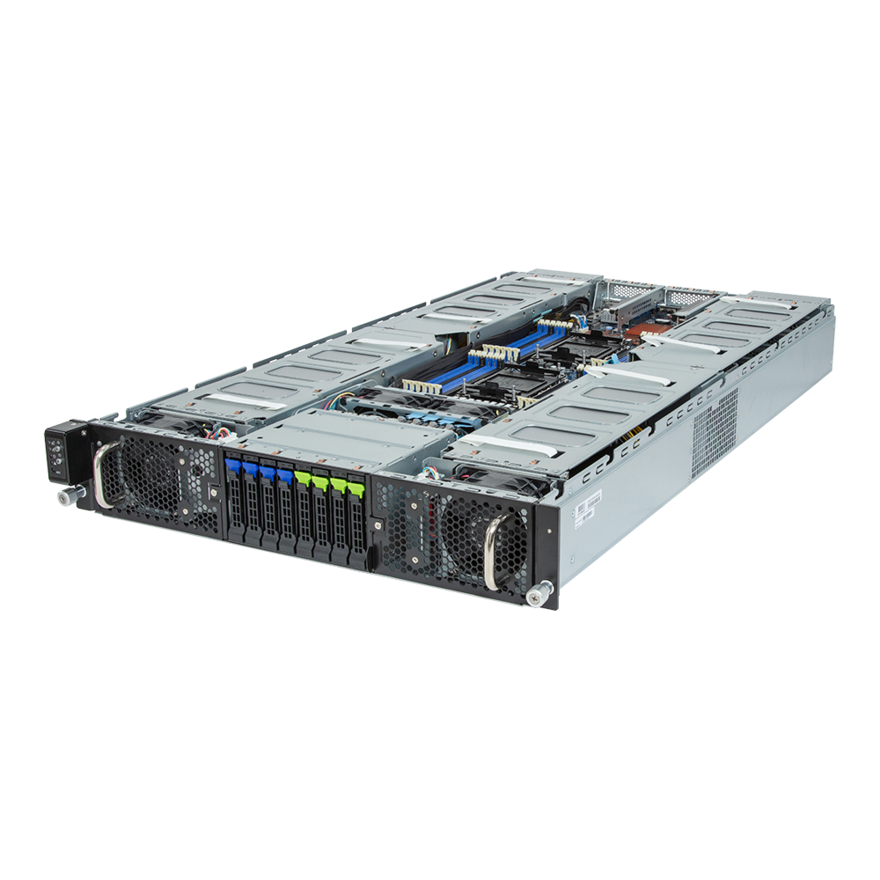

| Packaging Content | 1 x G293-S43-AAP1
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit |
