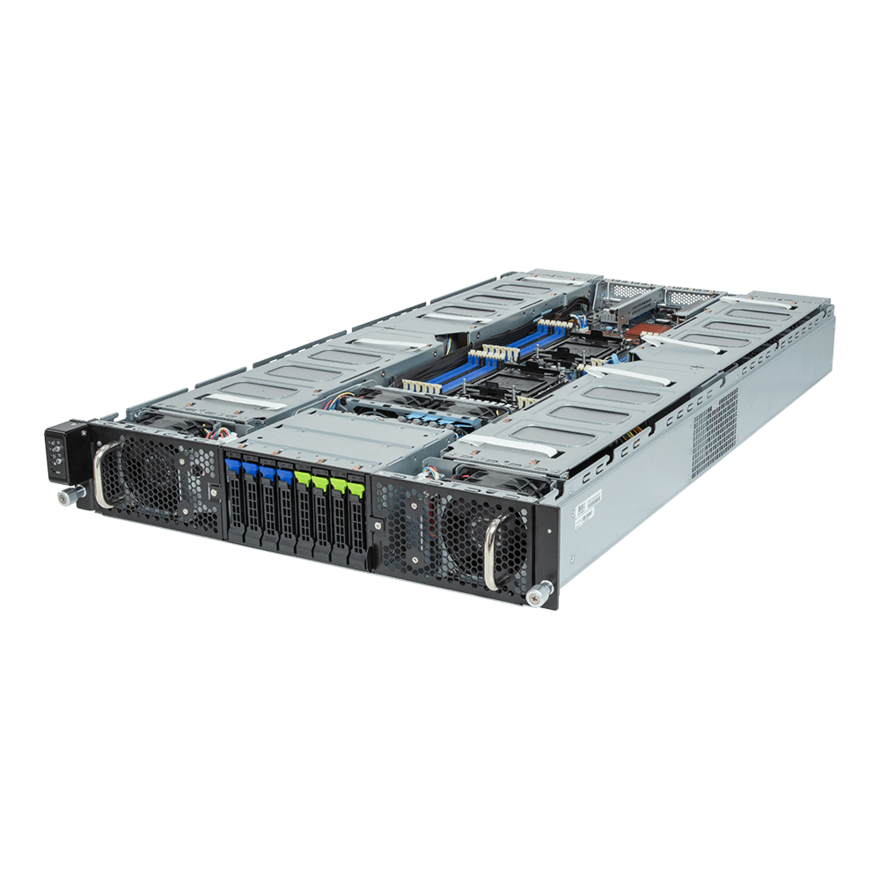

NTS Elite APEX 2U Enterprise AI & HPC GPU Platform

High-performance 2U server for AI, visual computing, HPC, AI training, and AI inference workloads.
Part#: APXI012U4G
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
  • 4 x 2.5" SATA/SAS hot-swap bays
  • 4 x FHFL PCIe Gen5 x16 or 8 x FHFL PCIe Gen5 x8 slots for GPUs
  • 2 x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply



Configure & Buy Specifications



   Dimensions2U (W448 x H87.5 x D800 mm)
MotherboardMS43-G20
CPU  5th Generation Intel Xeon Scalable Processors
  4th Generation Intel Xeon Scalable Processors
  Dual processor, TDP up to 225W
Socket
2 x LGA 4677 (Socket E)
ChipsetIntel C741
   Memory8-Channel DDR5 RDIMM, 24 x DIMMs
[5th Gen Intel Xeon] Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
[4th Gen Intel Xeon] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
   LAN
2 x 10Gb/s LAN (1 x Intel X710-AT2), Support NCSI
1 x 10/100/1000 Mbps Management LAN
   Video
Integrated in ASPEED AST2600
- 1 x VGA port
   Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS
4 x 2.5" SATA/SAS
RAID
Intel SATA RAID 0/1/10/5
Onboard VROC key header
Support optional RAID add-in cards
PCIe Expansion Slots
4 x FHFLPCIe Gen5 x16 or 8 x FHFLPCIe Gen5 x8, for GPUs
2 x LP PCIe Gen5 x16, for add-in cards
I/O Ports
Rear:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
Backplane Board
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply
AC Input: 100-240V
System ManagementASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
System Fans8 x 80x80x38mm
Operating PropertiesOperating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
Barebone
Processor
Memory
HARD DRIVE
(Max Quantity: 8)
GPU
(Max Quantity: 4)
GPU Bridge
(Max Quantity: 2)
CONTROLLER CARD
Battery Backup
NETWORK ADAPTER
(Max Quantity: 2)
Trusted Platform Module
OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
Software
NVIDIA Software
Warranty
$0.00
