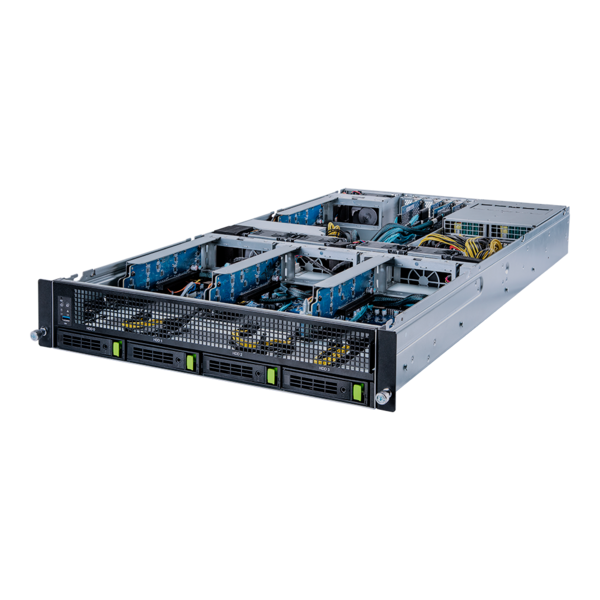

| Dimensions | 2U (W438 x H87.5 x D820 mm) |
Motherboard
| MP32-AR2 |
| CPU | Ampere® Altra® Max or Altra® Processor
Single processor, 7nm technology, LGA4926 socket
Up to 128-core per processor |
Chipset
| System on Chip |
| Memory | 8-Channel DDR4 memory, 16 x DIMM slots
RDIMM/LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs |
| LAN | 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN |
Video
| Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
|
Storage
| 4 x 3.5" Gen4 NVMe hot-swappable bays
- 2.5" Gen4 NVMe SSD supported only
|
SAS
| N/A
|
RAID
| N/A
|
Expansion Slots
| 4 x PCIe x16 slots (4.0 x16) for GPU cards
2 x PCIe x16 slots (4.0 x8), Low-profile
2 x M.2 slots (4.0 x4), supports 2242/2260/2280/22110 cards
|
Front I/O
| 1 x USB 3.2 Gen1
|
Rear I/O
| 3 x USB 3.2 Gen1, 1 x VGA, 1 x Debug port, 2 x RJ45, 1 x MLAN
|
Backplane I/O
| Backplane P/N: 9CBP1047NR-00
Speed and bandwidth: Gen4 NVMe
|
| TPM | 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 |
| Power Supply | Dual 1600W 80 PLUS Platinum power supply
AC Input: 100-240V |
| System Management | Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) |
| OS Compatibility | RHEL 8.3 / 8.5 (ARM64)
SLES 15 SP2 / 15 SP3 (ARM64)
Ubuntu 18.04.5 LTS / 20.04.1 LTS / 22.04 LTS (ARM64)
Fedora Server 33-1.2 / 35-1.2 (ARM64)
OracleLinux R8 U2 / R8 U5 (ARM64)
Debian 10.9 (Buster) / 11.1 (ARM64) |
| System Fans | 5 x 80x80x38mm (16,300rpm) |
Operating Properties
| Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
|
