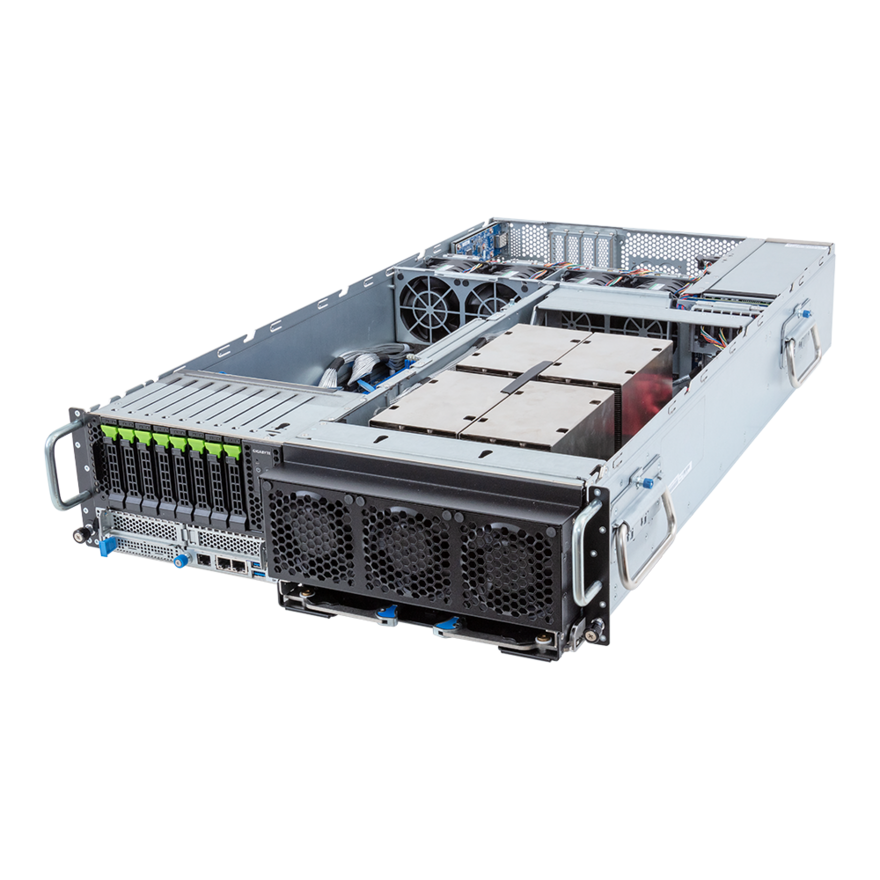

NTS Elite Apex | GPU Solution | APXI013U4H1

3U - Xeon Scalable - 8x 2.5" Hybrid - 4 HGX™ H100 SXM5 GPUs - 3000W 2+1

2 x Intel® Xeon® Silver 4410Y Processor 12C / 24T 2.0 GHz 30 MB Cache (150W) [+$1,080.88]
2 x Intel® Xeon® Silver 4416+ Processor 20C / 40T 2.0 GHz 37.5 MB Cache (165W) [+$2,256.60]
2 x Intel® Xeon® Gold 5418Y Processor 24C / 48T 2.0 GHz 45 MB Cache (185W) [+$2,845.20]
2 x Intel® Xeon® Gold 5420+ Processor 28C / 56T 2.0 GHz 52.5 MB Cache (205W) [+$3,545.70]
2 x Intel® Xeon® Gold 6430 Processor 32C / 64T 2.1 GHz 60 MB Cache (270W) [+$4,083.04]
2 x Intel® Xeon® Gold 6438Y+ Processor 32C / 64T 2.0 GHz 60 MB Cache (205W) [+$6,022.00]
2 x Intel® Xeon® Platinum 8452Y Processor 36C / 72T 2.0 GHz 67.5 MB Cache (300W) [+$7,659.90]
2 x Intel® Xeon® Gold 5415+ Processor 8C / 16T 2.9 GHz 22.5 MB Cache (150W) [+$2,044.78]
2 x Intel® Xeon® Gold 6434 Processor 8C / 16T 3.7 GHz 22.5 MB Cache (195W) [+$4,999.76]
2 x Intel® Xeon® Gold 6426Y Processor 16C / 32T 2.5 GHz 37.5 MB Cache (185W) [+$2,911.98]
2 x Intel® Xeon® Gold 6444Y Processor 16C / 32T 3.6 GHz 45 MB Cache (270W) [+$6,946.04]
2 x Intel® Xeon® Gold 6442Y Processor 24C / 48T 2.6 GHz 60 MB Cache (225W) [+$5,520.68]
2 x Intel® Xeon® Gold 6448Y Processor 32C / 64T 2.1 GHz 60 MB Cache (225W) [+$6,870.32]
2 x Intel® Xeon® Platinum 8462Y+ Processor 32C / 64T 2.8 GHz 60 MB Cache (300W) [+$11,396.74]
2 x Intel® Xeon® Platinum 8460Y+ Processor 40C / 80T 2.0 GHz 105 MB Cache (300W) [+$10,654.90]
2 x Intel® Xeon® Gold 5418N Processor 24C / 48T 1.8 GHz 45 MB Cache (165W) [+$3,192.96]
2 x Intel® Xeon® Gold 6428N Processor 32C / 64T 1.8 GHz 60 MB Cache (185W) [+$6,138.00]
2 x Intel® Xeon® Gold 6438N Processor 32C / 64T 2.0 GHz 60 MB Cache (205W) [+$6,427.18]
2 x Intel® Xeon® Platinum 8470N Processor 52C / 104T 1.7 GHz 97.5 MB Cache (300W) [+$18,250.42]
2 x Intel® Xeon® Gold 5416S Processor 16C / 32T 2.0 GHz 30 MB Cache (150W) [+$1,811.00]
2 x Intel® Xeon® Gold 6454S Processor 32C / 64T 2.20 GHz 60 MB Cache (270W) [+$6,052.18]
2 x Intel® Xeon® Gold 6438M Processor 32C / 64T 2.2 GHz 60 MB Cache (205W) [+$6,275.58]
2 x Intel® Xeon® Gold 6434H Processor 8C / 16T 3.7 GHz 22.5 MB Cache (195W) [+$5,887.80]
2 x Intel® Xeon® Gold 6416H Processor 18C / 36T 2.2 GHz 45 MB Cache (165W) [+$2,769.32]
2 x Intel® Xeon® Gold 6418H Processor 24C / 48T 2.1 GHz 60 MB Cache (185W) [+$3,960.88]
2 x Intel® Xeon® Gold 6448H Processor 32C / 64T 2.4 GHz 60 MB Cache (250W) [+$7,013.72]
2 x Intel® Xeon® Platinum 8444H Processor 16C / 32T 2.9 GHz 45 MB Cache (270W) [+$8,117.98]
2 x Intel® Xeon® Platinum 8450H Processor 28C / 56T 2.0 GHz 75 MB Cache (250W) [+$9,026.52]
2 x Intel® Xeon® Platinum 8454H Processor 32C / 64T 2.1 GHz 82.5 MB Cache (270W) [+$12,537.60]
2 x Intel® Xeon® Silver 4514Y Processor 16C / 32T 2.0 GHz 30 MB Cache (150W) [+$1,497.20]
2 x Intel® Xeon® Gold 5520+ Processor 28C / 56T 2.2 GHz 52.5 MB Cache (205W) [+$3,146.10]
2 x Intel® Xeon® Gold 6530 Processor 32C / 64T 2.1 GHz 160 MB Cache (270W) [+$4,081.30]
2 x Intel® Xeon® Gold 5515+ Processor 8C / 16T 3.2 GHz 22.5 MB Cache (165W) [+$2,108.28]
2 x Intel® Xeon® Gold 6526Y Processor 16C / 32T 2.8 GHz 37.5 MB Cache (195W) [+$2,910.18]
2 x Intel® Xeon® Gold 6534 Processor 8C / 16T 3.9 GHz 22.5 MB Cache (195W) [+$5,400.00]
2 x Intel® Xeon® Gold 6542Y Processor 24C / 48T 2.9 GHz 60 MB Cache (250W) [+$5,516.90]
2 x Intel® Xeon® Gold 6544Y Processor 16C / 32T 3.6 GHz 45 MB Cache (270W) [+$6,944.32]
2 x Intel® Xeon® Gold 6548Y+ Processor 32C / 64T 2.5 GHz 60 MB Cache (250W) [+$7,145.30]
2 x Intel® Xeon® Platinum 8562Y+ Processor 32C / 64T 2.8 GHz 60 MB Cache (300W) [+$11,396.74]
2 x Intel® Xeon® Gold 6538N Processor 32C / 64T 2.1 GHz 60 MB Cache (205W) [+$6,425.44]
2 x Intel® Xeon® Gold 6548N Processor 32C / 64T 2.8 GHz 60 MB Cache (250W) [+$7,428.24]
2 x Intel® Xeon® Gold 6554S Processor 36C / 72T 2.2 GHz 180 MB Cache (270W) [+$6,052.18]
2 x Xeon® Platinum 8468 Processor 48C / 96T 2.1 GHz 105 MB Cache (350w) [+$13,830.80]
2 x Xeon® Platinum 8470 Processor 52C / 104T 2.0 GHz 105 MB Cache (350w) [+$17,942.80]
2 x Xeon® Platinum 8480+ Processor 56C / 112T 2.0 GHz 105 MB Cache (350w) [+$20,530.98]
2 x Xeon® Platinum 8458P Processor 44C / 88T 2.7 GHz 82.5 MB Cache (350w) [+$12,958.04]
2 x Xeon® Platinum 8468V Processor 48C / 96T 2.40 GHz 97.5 MB Cache (330W) [+$13,651.22]
2 x Xeon® Platinum 8460H Processor 40C / 80T 2.2 GHz 105 MB Cache (330W) [+$20,529.84]
2 x Intel® Xeon® Platinum 8468H Processor 48C / 96T 2.1 GHz 105 MB Cache (330W) [+$26,687.86]
2 x Intel® Xeon® Platinum 8490H Processor 60C / 120T 1.9 GHz 112.5 MB Cache (350W) [+$32,586.30]
2 x Intel® Xeon® CPU Max 9462 Processor 32C / 64T 2.7 GHz 75 MB Cache (350W) [+$15,326.20]
2 x Intel® Xeon® CPU Max 9460 Processor 40C / 80T 2.2 GHz 97.5 MB Cache (350W) [+$16,774.70]
2 x Intel® Xeon® CPU Max 9468 Processor 48C / 96T 2.1 GHz 105 MB Cache (350W) [+$1,315.72]
2 x Intel® Xeon® Platinum 8558 Processor 48C / 96T 2.1 GHz 260 MB Cache (330W) [+$8,913.14]
2 x Intel® Xeon® Gold 6538Y+ Processor 32C / 64T 2.2 GHz 60 MB Cache (225w) [+$6,021.42]
2 x Intel® Xeon® Platinum 8568Y+ Processor 32C / 64T 2.2 GHz 60 MB Cache (225w) [+$12,456.72]
2 x Intel® Xeon® Platinum 8570 Processor 48C / 96T 2.1 GHz 300 MB Cache (350w) [+$18,390.78]
2 x Intel® Xeon® Platinum 8580 Processor 60C / 120T 2.0 GHz 300 MB Cache (350w) [+$20,529.26]
2 x Intel® Xeon® Platinum 8592+ Processor 64C / 128T 1.9 GHz 320 MB Cache (350w) [+$22,236.16]
2 x Intel® Xeon® Platinum 8558P Processor 48C / 96T 2.7 GHz 260 MB Cache (350w) [+$12,958.04]
2 x Intel® Xeon® Platinum 8592V Processor 64C / 128T 2.0 GHz 320 MB Cache (330) [+$21,072.74]

16GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$2,400.00]
32GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$6,848.00]
64GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$14,896.00]
96GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$29,920.00]
128GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$15,680.00]

(Max Quantity: 8)

NVIDIA® HGX™ H100 - 4x NVIDIA® H100 SXM5 GPUs - 320GB HBM3 Memory - 4th Generation NVLink (included)

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

(Max Quantity: 6)

CTM010 - Trusted Platform Module - TPM 2.0 - SPI [+$99.00]

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

Supermicro CBL-SAST-0573 - External 12Gb/s SAS Cable - SFF-8644 to SFF-8644 (1M) (28AWG) [+$69.00]
Supermicro CBL-SAST-0690 - External 12Gb/s SAS Cable - SFF-8644 to SFF-8644 (2M) (28AWG) [+$69.00]
DataStorageCables C5555-3M-24 - External 24Gb/s SAS Cable - SFF-8674 to SFF-8674 (3M) (28AWG) [+$139.00]

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

Dimensions	3U (W448 x H131 x D850.2 mm)
CPU	5th Generation Intel Xeon Scalable Processors 4th Generation Intel Xeon Scalable Processors Intel Xeon CPU Max Series Dual processor, TDP up to 350W
Socket	2 x LGA 4677 (Socket E)
Chipset	Intel C741
Memory	8-Channel DDR5 RDIMM, 16 x DIMMs [5th Gen Intel Xeon] Up to 5600 MT/s [4th Gen Intel Xeon] Up to 4800 MT/s [Intel Xeon Max Series] Up to 4800 MT/s
LAN	Front: 2 x 1Gb/s LAN (1 x Intel I350-AM2), Support NCSI 1 x 10/100/1000 Mbps Management LAN Rear: 2 x 10Gb/s LAN (1 x Broadcom BCM57416), Support NCSI 1 x 10/100/1000 Mbps Management LAN
Video	Integrated in ASPEED AST2600 - 1 x Mini-DP
Storage	Front hot-swap: 8 x 2.5" Gen5 NVMe/SATA/SAS Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4 SAS card is required to support SAS drives
RAID	Intel SATA RAID 0/1/10/5 Support optional RAID add-in cards
Modular GPU	NVIDIA HGX H100 with 4 x SXM5 GPUs
PCIe Expansion Slots	6 x LP PCIe Gen5 x16
I/O Ports	Front: 2 x USB 3.2 Gen1, 1 x Mini-DP, 2 x RJ45, 1 x MLAN (default) Rear: 2 x RJ45, 1 x MLAN
Backplane Board	PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM	1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
Power Supply	2+1 3000W 80 PLUS Titanium redundant power supplies AC Input: 115-240V
System Management	ASPEED AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
System Fans	7 x 80x80x80mm
Operating Properties	Operating: 10°C to 35°C, 8% to 80% (non-condensing) Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
