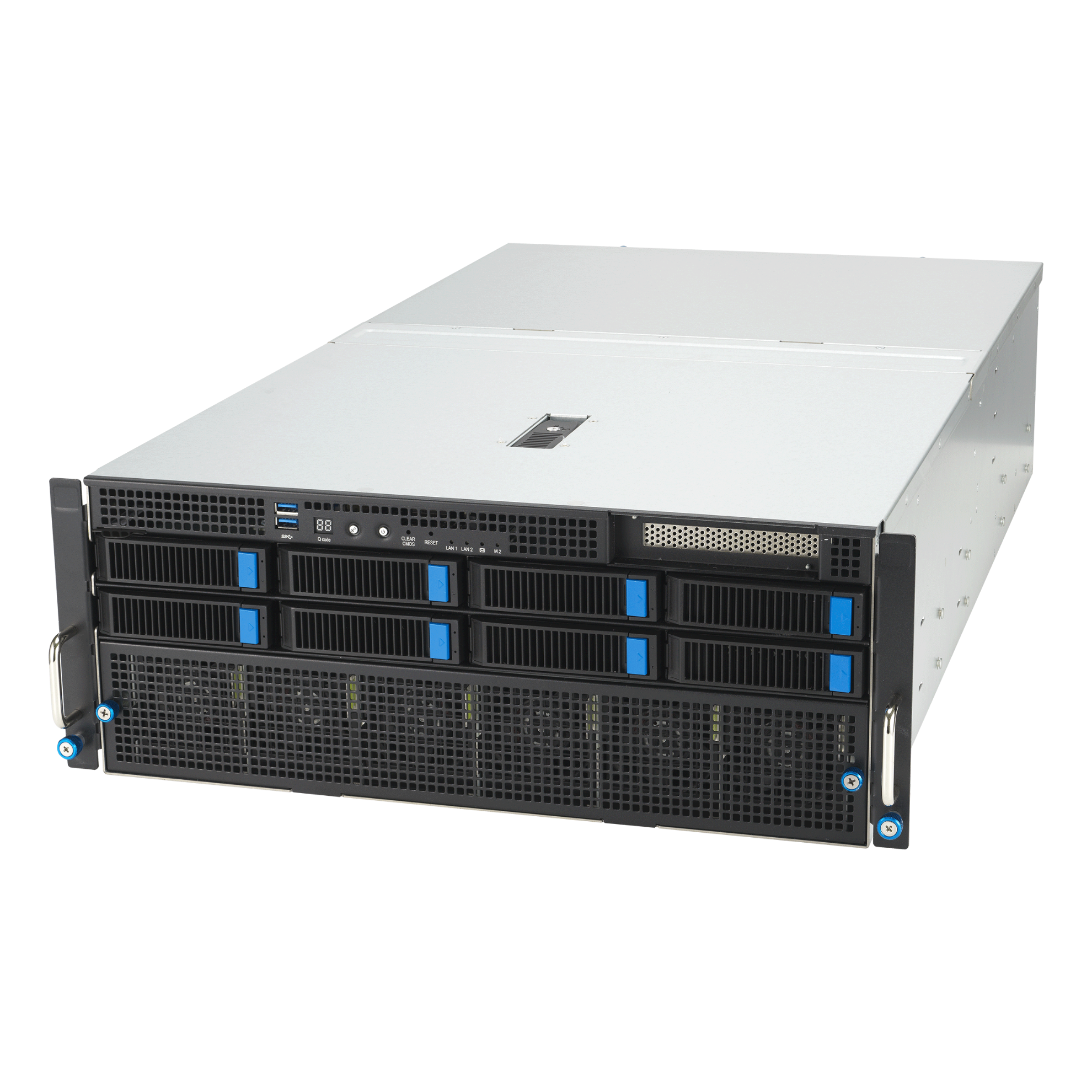

NTS Elite APEX 4U 8-GPU AI Supercomputing Platform

4U dual-socket GPU server powered by 5th Gen Intel Xeon Scalable processors that supports eight dual-slot GPUs, 32 DIMM, 11 PCIe 5.0, dual NVMe, four 3000W Titanium power supplies, OCP 3.0, and ASUS ASMB11-iKVM

Part#: APXI034U8G-V1

Key Features

32 x DIMM, DDR5 5600/5200/4800/4400 RDIMM/ 3DS RDIMM
2 x 5th Gen Intel® Xeon® Scalable Processors
1 x M.2 (Up to 22110)
1 x PCIe slot for NIC (Gen5 x16 link)
1 x PCIe slot for NIC (Gen5 x8 link) or OCP3.0 (Gen5 x16 links)
1 x PCIe slot for HBA/RAID cards (Gen5 x8 link,LP,HL)
8 x PCIe slot for GPU (Gen5 x16 link, support up to eight dual slot GPU)
2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply
8 x 3.5” Hot-swap HDD Bays

Configure & Buy Specifications

Processor Support	Dual Socket Core Logic 4th Gen Intel® Xeon® Scalable Processors Family(350w) 5th Gen Intel® Xeon® Scalable Processors Family(350w)
Memory	Total Slots 32 x DIMM slots (8 channel per CPU, 16 DIMM per CPU, 2DPC) Capacity Maximum up to 4 + 8 TB (DDR5 + Crow Pass) Memory Type DDR5 5600/5200/4800/4400 RDIMM/ 3DS RDIMM *Refer to ASUS server AVL for the latest update Memory Size 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS
Expansion Slots	Total PCI/PCI-X/PCI-E/PIKE Slots 11 Slot Type 1 x PCIe x8 slot (Gen5 ,LP,HL) for HBA/RAID cards 8 x PCIe x16 slot (Gen5, FH,FL) for dual-slot GPU card 1 x PCIe x16 slot (Gen5 ,FH,FL) for NIC card 1 x PCIe x8 slot (Gen5 FH,FL) for NIC Card or Gen5 x16 OCP socket option M.2 1 x M.2 connector (PCIe Gen3 x4 link)
Disk Controller	SATA Controller 8 x SATA 6Gbps ports (by MiniSAS-HD) SAS Controller Optional kits: -Broadcom MegaRAID 9560-16i -Broadcom MegaRAID 9540-8i - ASUS PIKE II 3008 8-port HBA Card - ASUS PIKE II 3108 8-port HW RAID Card
Storage Bays	I = internal A or S will be hot-swappable 8 x 3.5" Front Hot-swap Storage Bays (backplane supports up to 8 x NVMe/SATA/SAS*)
Networking	2 x 10GbE LAN ports (RJ45, X710-AT2) or 2 x Gigabit LAN ports (RJ45, I350-AM2) 1 x Management Port (RJ45)
Graphic	Aspeed AST2600 64MB
Front I/O Ports	2 x USB 3.2 Gen1 ports 1 x VGA port
Rear I/O Ports	1 x COM port 2 x 10GbE/1GbE LAN ports (RJ45, build for order) 1 x Management port (RJ45
Switch/LED	Front Switch/LED: 1 x Power Button w/LED, 1 x Location Button w/LED, 1 x Message LED, 1 x Q-Code/Port 80 LED, 1 x Clear CMOS LED, 1 x Reset LED, 1 x M.2 LED Rear Switch/LED: 1 x Power Button w/LED, 1 x Location Button w/LED
OS Support	Windows Server RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware
Management Solution	Software ASUS Control Center (Classic) Out of Band Remote Management On-Board ASMB11-iKVM for KVM-over-IP
Dimension	800mm x 440mm x 174.5 mm (4U) 31.5’’x17.32’’x 6.87’’
Power Supply	2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply 2+1 Redundant 3000W 80 PLUS Platinum Power Supply Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)

Barebone

Dual 5th Gen Intel Xeon - 8xGPUs - 8x 3.5" SATA - 32x DDR5 - 3000W 2+2 Redundant

Processor

Memory

16GB PC5-38400 4800 MHz DDR5 [+$2,208.00]
32GB PC5-38400 4800 MHz DDR5 [+$3,456.00]
64GB PC5-38400 4800 MHz DDR5 [+$6,256.00]
128GB PC5-38400 4800 MHz DDR5 [+$23,232.00]

M.2 DRIVE

HARD DRIVE

(Max Quantity: 8)

GPU

(Max Quantity: 8)

GPU Bridge

(Max Quantity: 4)

AMD Instinct MI210 Bridge Connector Attaches 2x Instinct MI210 Cards [+$249.00]
AMD Instinct MI210 Bridge Connector Attaches 4x Instinct MI210 Cards [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Way 2-Slot Spacing - A100 and H100 NVL 600GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - RTX A4500/A5000/A5500/A6000 100GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - A30 and A40 600GB [+$249.00]

CONTROLLER CARD

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]

Battery Backup

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 2)

Trusted Platform Module

Trusted Platform Module (TPM-SPI) Nuvoton NPCT750 TCG v2.0 [+$23.92]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

NVIDIA Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
