| Processor Support | Dual Socket
Core Logic 4th Gen Intel® Xeon® Scalable Processors Family(350w)
5th Gen Intel® Xeon® Scalable Processors Family(350w) |
Memory
| Total Slots 32 x DIMM slots (8 channel per CPU, 16 DIMM per CPU, 2DPC)
Capacity Maximum up to 4+8TB per CPU socket
Memory Type DDR5 5600/5200/4800/4400 RDIMM/ 3DS RDIMM
*Refer to ASUS server AVL for the latest update
Memory Size 64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots 13
Slot Type 1 x PCIe x16 slot (Gen5 ,LP,HL) for HBA/RAID cards
8 x PCIe x16 slot (Gen5, FH,FL) for dual-slot GPU card
4 x PCIe x16 slot (Gen5 ,FH,FL) for NIC card
1 x Gen5 x16 OCP socket option (will occupy one PCIe Slot) M.2 1 x M.2 connector (PCIe Gen3 x4 link) |
Disk Controller
| SATA Controller 8 x SATA 6Gbps ports (by MiniSAS-HD)
SAS Controller Optional kits:
-Broadcom MegaRAID 9560-16i
-Broadcom MegaRAID 9540-8i
- ASUS PIKE II 3008 8-port HBA Card
- ASUS PIKE II 3108 8-port HW RAID Card |
| Storage Bays | I = internal
A or S will be hot-swappable

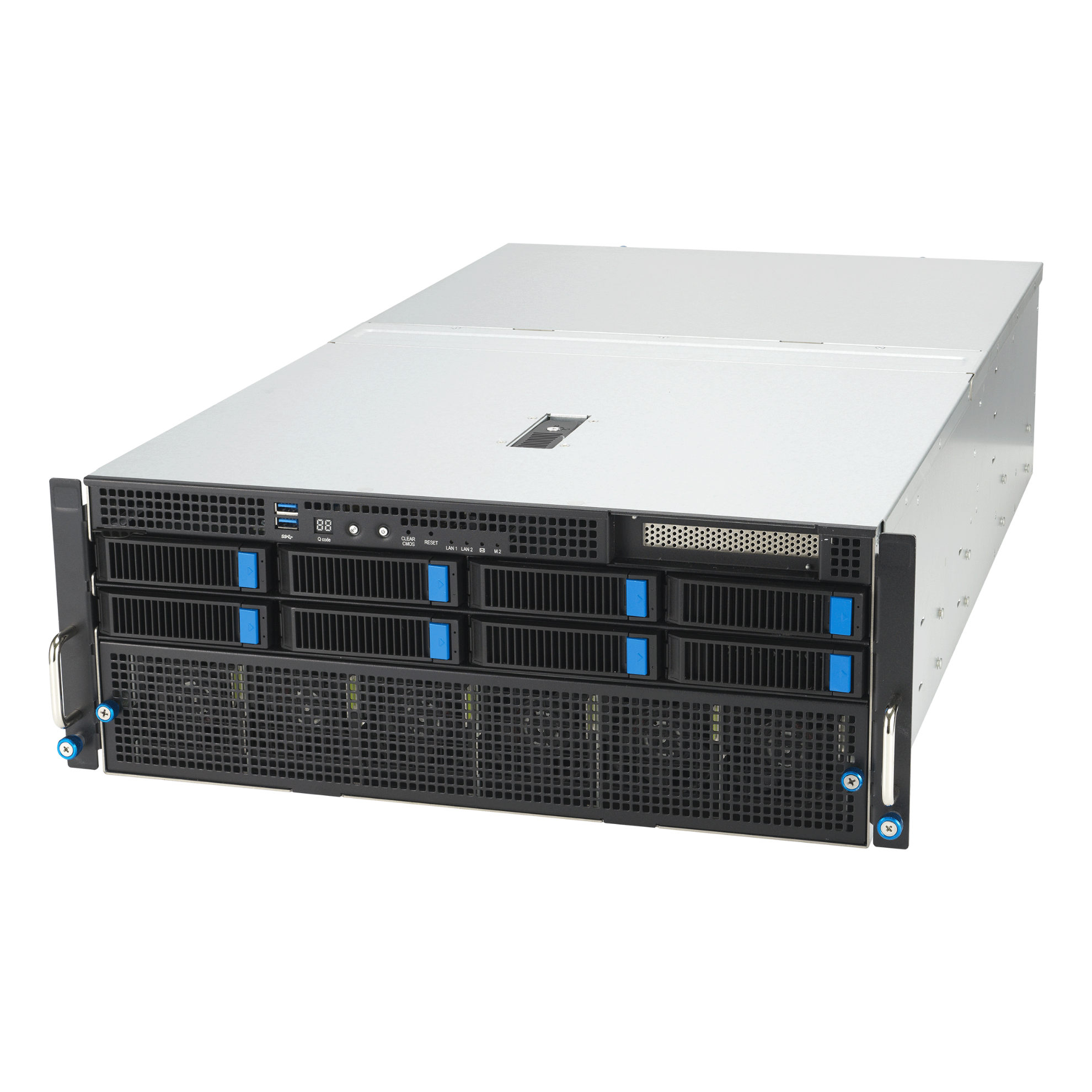

8 x 3.5" Front Hot-swap Storage Bays
(backplane supports up to 8 x NVMe/SATA/SAS*)
*SAS support required an HBA/RAID card. |
| Networking | LAN 2 x 10GbE LAN ports (RJ45, X710-AT2)
or 2 x Gigabit LAN ports (RJ45, I350-AM2)
1 x Management Port (RJ45) |
| Graphic | VGA Aspeed AST2600 64MB
|
Front I/O Ports
| 2 x USB 3.2 Gen1 ports
1 x VGA port
|
Rear I/O Ports
| 1 x COM port
2 x 10GbE/1GbE LAN ports (RJ45, build for order)
1 x Management port (RJ45)
|
Switch/LED
| Front Switch/LED:
1 x Power Button w/LED, 1 x Location Button w/LED, 1 x Message LED,
1 x Q-Code/Port 80 LED, 1 x Clear CMOS LED, 1 x Reset LED, 1 x M.2 LED
Rear Switch/LED:
1 x Power Button w/LED, 1 x Location Button w/LED
|
OS Support
| Windows Server
RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware
|
Management Solution
| Software ASUS Control Center (Classic)
Out of Band Remote Management On-Board ASMB11-iKVM for KVM-over-IP
|
Dimension
| 800mm x 440mm x 174.5 mm (4U)
31.5’’x17.32’’x 6.87
|
Power Supply
| 2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply
2+1 Redundant 3000W 80 PLUS Platinum Power Supply
Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
|
Environment
| Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
|
