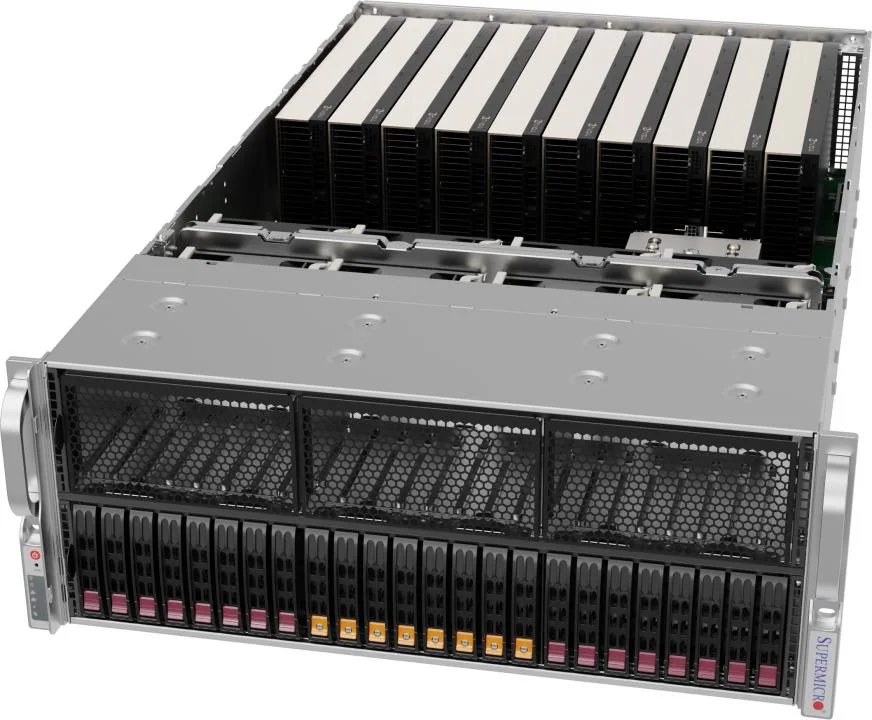

| Form Factor | 4U Rackmount
Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29")
Package: 685 x 675 x 1041mm (27" x 26.57" x 41") |
Processor
| Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T |
| GPU | Max GPU Count: Up to 10 double-width or 10 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100 NVL, H100, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 5000 Ada, RTX
4000 Ada Generation, L40, RTX A6000, RTX 6000 Ada Generation, L40S, L4, A100
AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect: PCIe 5.0 x16 Switch Single-Root
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
System Memory
| Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Drive Bays Configuration | Default: Total 10 bays
8 front hot-swap 2.5" NVMe drive bays
2 front hot-swap 2.5" SATA drive bays |
| Expansion Slots | Default
11 PCIe 5.0 x16 (in x16) FHFL slots
Option A
12 PCIe 5.0 x16 (in x16) FHFL slots |
| On-Board Devices | SATA: SATA (6Gbps)
Chipset: AMD SP5
Network Connectivity: 2 RJ45 10GbE
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports
USB: 2 ports(rear)
Video: 1 VGA port
Serial: 1 COM port(rear)
|
System Cooling
| Fans: Up to 8 heavy duty fans with optimal fan speed control
|
Power Supply
| 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
7 +1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
