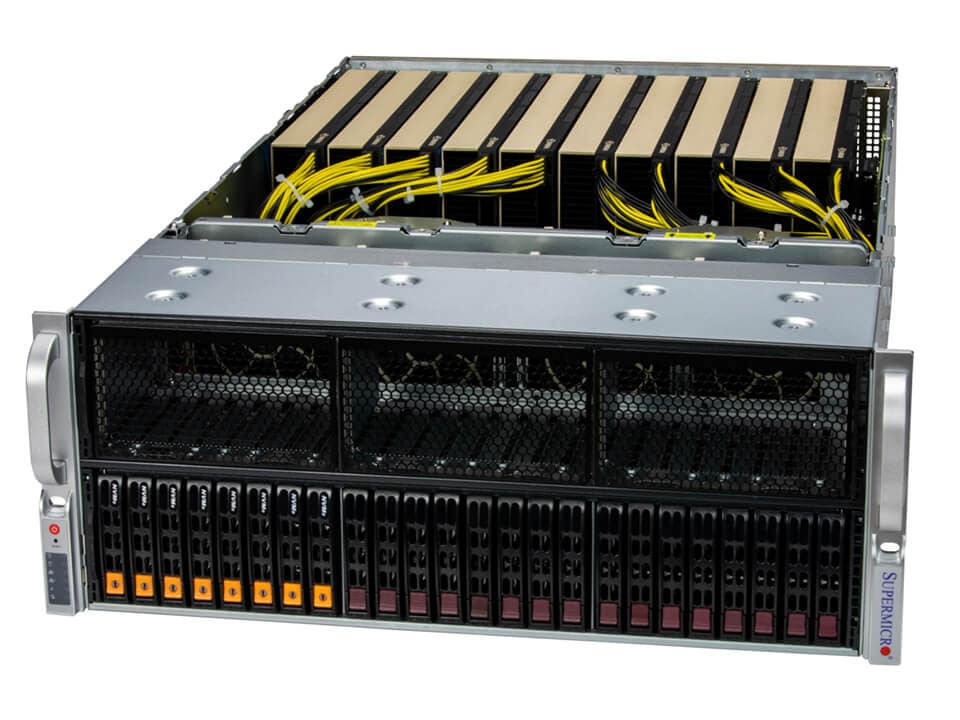

NTS Elite APEX 4U GPU Beast Dual Xeon Up to 10-GPU

4U GPU server supporting up to 10 GPUs, Dual Xeon processors, and PCIe Gen5 for advanced AI and HPC workloads.

Part#: APXI004U10G

Key Applications

• High Performance Computing	• VDI
• AI/Deep Learning Training	• Media/Video Streaming
• Cloud Gaming	• Animation and Modeling
• Design & Visualization	• 3D Rendering
• Diagnostic Imaging

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
- AIOM/OCP 3.0 Support
- 13 PCIe Gen 5.0 X16 FHFL Slots
- 8x HOT SWAP 2.5” SATA/SAS (AOC required)
- 8x 2.5" Hot-swap SATA drive bays
- 8x2.5" Hot-swap NVMe drive bays
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2700W (2+2) Redundant Power Supplies, Titanium Level

Configure & Buy Specifications

Form Factor	4U Rackmount Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29") Package: 685 x 675 x 1041mm (27" x 26.57" x 41")
Processor	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU
GPU	Max GPU Count: Up to 10 double-width or 10 single-width GPUs Supported GPU: NVIDIA PCIe: RTX 5000 Ada, L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A10 CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), Intel® Xe Link Bridges
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 16 bays 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 24 bays 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" NVMe* drive bays 8 front hot-swap 2.5" SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key)
Expansion Slots	Default 13 PCIe 5.0 x16 FHFL slots
On-Board Devices	Chipset: Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
Input / Output	1 VGA port
System Cooling	Fans: Up to 8 heavy duty fans with optimal fan speed control
Power Supply	4x 2700W Redundant Titanium Level (96%) power supplies
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) Available Color: Black Front & Silver Body
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Barebone

4U GPU Server - 24x 2.5" Hot-swap - 1x AIOM - 2700W (2+2) Redundant

Processor

Memory

16GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$600.00]
32GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$1,712.00]
64GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$3,724.00]
96GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$7,480.00]
128GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$3,920.00]

M.2 DRIVE

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 24)

GPU

(Max Quantity: 10)

NVIDIA ® A10 GPU Computing Accelerator - 24GB GDDR6 - PCIe 4.0 x16 - Passive Cooler (w/o CEC) NVIDIA - Ampere based GPUs [+$2,500.69]
NVIDIA ® L4 ADA GPU Computing Accelerator - 24GB GDDR6X - PCIe 4.0 x16 - Passive Cooling NVIDIA - Ada Lovelace based GPUs [+$2,279.09]
NVIDIA ® L40 ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 5.0 x16 - Passive Cooling NVIDIA - Ada Lovelace based GPUs [+$6,808.94]
NVIDIA ® L40S ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 4.0 x16 - Passive Cooling Nvidia L40S [+$8,099.00]
NVIDIA ® H100 NVL GPU Computing Accelerator - 94GB HBM3 - PCIe 5.0 x16 - Passive Cooling Nvidia H100 NVL [+$25,581.60]
NVIDIA ® RTX A4000 - 16GB GDDR6 - PCIe 4.0 x16 - Active Cooling (4xDP) NVIDIA Professional Graphics Processors(Ampere) [+$938.54]
NVIDIA ® RTX A6000 - 48GB GDDR6 - PCIe 4.0 x16 - Active Cooling (4xDP) NVIDIA Professional Graphics Processors(Ampere) [+$4,293.80]
NVIDIA ® RTX 6000 Ada Generation - 48GB GDDR6 ECC - PCIe 4.0 x16 - Active Cooling (4xDP) NVIDIA Professional Graphics [+$6,945.25]

GPU Bridge

(Max Quantity: 5)

NVIDIA® NVLink™ Bridge - 2-Way 2-Slot Spacing - A100 and H100 NVL 600GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - RTX A4500/A5000/A5500/A6000 100GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - A30 and A40 600GB [+$249.00]

CONTROLLER CARD

Supermicro AOC-S3916L-H16iR-32DD SAS3/SATA 16-Port RAID Controller - 8GB Cache - PCIe 4.0 x8 8GB Cache PCI Express 4.0x8 [+$941.00]
Supermicro AOC-S3008L-L8e SAS3/SATA 8-Port Host Bus Adapter - PCIe 3.0 x8 PCIe 3.0 x8 [+$220.33]
Supermicro AOC-S3908L-H8iR-16DD SAS3/SATA 8-Port RAID Controller - 8GB Cache - PCIe 4.0 x8 PCIe 4.0 x8 [+$830.00]
Supermicro AOC-S3816L-L16iT SAS3/SATA 16-Port Host Bus Adapter - PCIe 4.0 x8 PCIe 4.0 x8 [+$591.00]
Supermicro AOC-S3108L-H8iR-16DD SAS3/SATA 8-Port RAID Controller - 2GB Cache - PCIe 3.0 x8 PCIe 3.0 x8 [+$577.00]

Battery Backup

BTR-CVPM05 Supermicro CacheVault Module for Broadcom 3908/3916 12Gb/s SAS Controller (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 2)

Trusted Platform Module

Supermicro AOM-TPM-9670V-S - Trusted Platform Module - TPM 2.0 - X11 X12 - Server Provisioned - Vertical [+$40.88]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

I O Modules Networking

Supermicro AIOM OCP 3.0 - 2x 100GbE QSFP28 - Mellanox CX-6 DX - PCIe 4.0 x16 - AOC-A100G-m2CM [+$987.00]
Supermicro AIOM OCP 3.0 - 2x 25GbE SFP28 - Intel E810-XXVAM2 - AOC-A25G-i2SM [+$252.00]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

NVIDIA Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]
