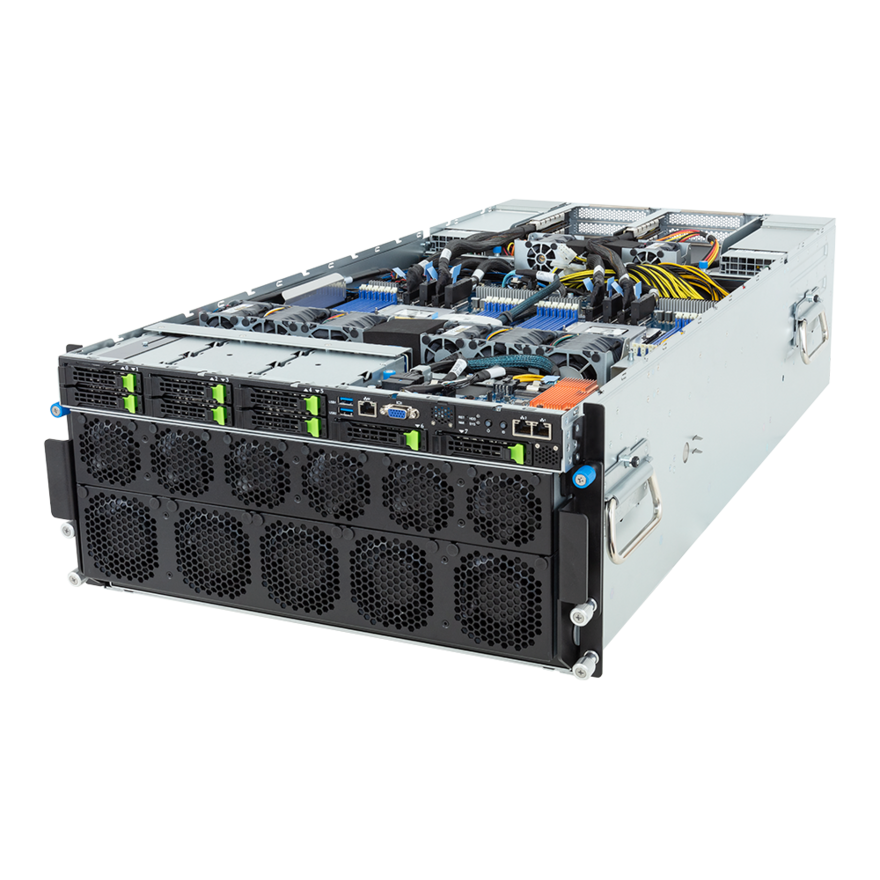

| Dimensions | 5U (W447 x H219.7 x D945 mm) |
Motherboard
| MZB3-G43 |
| CPU | AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Dual processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W |
Socket
| 2 x LGA 6096 (Socket SP5 |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 24 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s |
LAN
| Front:
2 x 10Gb/s LAN (1 x Intel X710-AT2), Support NCSI
1 x 10/100/1000 Mbps Management LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x VGA port
|
Storage
| Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
1 x M.2 (2280/22110), PCIe Gen3 x1
Storage card is required to support SATA and SAS drives
|
RAID
| Require RAID add-in cards
|
Modular GPU
| NVIDIA HGX H100 with 8 x SXM5 GPUs
|
PCIe Expansion
Slots
| 4 x FHHL PCIe Gen5 x16
8 x LP PCIe Gen5 x16
|
I/O Ports
| Front:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN (default)
Rear:
1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
| Power Supply | 5+1 3000W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V |
System
Management | ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface |
| System Fans | Motherboard:
2 x 40x40x56mm
4 x 60x60x56mm
PCIe slots:
4 x 40x40x28mm
2 x 40x40x56mm
GPU tray:
6 x 60x60x76mm
11 x 80x80x80mm |
Operating
Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
