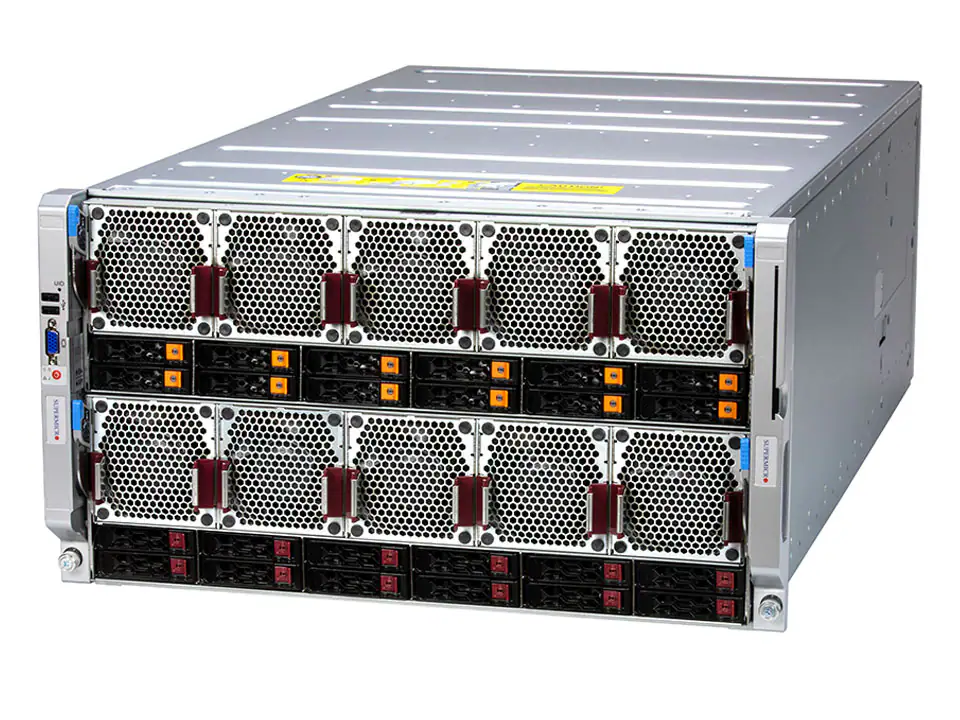

NTS Elite APEX 6U 8-CPU Xeon MP with Multi-GPU AI & HPC Engine

Designed for large-model pipelines, LLM training, and inference clusters, this MP platform supports multi-GPU compute and massive memory for next-generation AI workloads.

Part#: APXI006U12G

Key Applications

In-Memory Database
Virtualization, ERP, CRM
Research Lab/National Lab
Scale -up HPC

Key Features

Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
128 DIMM Slots; Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards
24x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays ; 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
10 heavy duty fans w/ optimal fan speed control

Configure & Buy Specifications

Form Factor	6U Rackmount Enclosure: 449 x 265 x 841mm (17.68" x 10.4" x 33.1") Package: 720 x 922 x 1080mm (28.34" x 36.3" x 42.5")
Processor	8 Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors Up to 60C/120T; Up to 112.5MB Cache per CPU
GPU	Up to 12 double-width GPUs
System Memory	Slot Count: 128 DIMM slots Max Memory (1DPC): Up to 16TB 4800MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 32TB 4400MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 24 bays 24 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)
Expansion Slots	PCI-Express (PCIe) Configuration: Default 12 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 LP slots Option A* 12 PCIe 5.0 x16 FHFL slots M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
On-Board Devices	Chipset: Intel® C741 Network Connectivity: 1 RJ45 1GBASE-T
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 1 RJ45 1 GbE LAN port USB: 2 USB 3.0 ports(rear) 2 ports(front) Video: 1 VGA port(Front) 1 DisplayPort port(Rear)
System Cooling	Fans: Up to 10 Heavy duty counter-rotating 8cm Fan(s) Air Shroud: 1 Air Shroud
Power Supply	4x 2600W Redundant (2 + 2) Titanium Level (96%) power supplie
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 242.5 lbs (110 kg) Net Weight: 176.37 lbs (80 kg) Available Color: Black
Operating Environment	RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Barebone

6U NVIDIA® 12-GPU - 24x 2.5" NVMe/SAS/SATA - 2600W Redundant

Processor

8 x Intel® Xeon® Platinum 8444H Processor 16C / 32T 2.9 GHz 45 MB Cache (270W) [+$32,471.92]
8 x Intel® Xeon® Platinum 8450H Processor 28C / 56T 2.0 GHz 75 MB Cache (250W) [+$36,106.08]
8 x Intel® Xeon® Platinum 8454H Processor 32C / 64T 2.1 GHz 82.5 MB Cache (270W) [+$50,150.40]
8 x Xeon® Platinum 8460H Processor 40C / 80T 2.2 GHz 105 MB Cache (330W) [+$82,119.36]
8 x Intel® Xeon® Platinum 8468H Processor 48C / 96T 2.1 GHz 105 MB Cache (330W) [+$106,751.44]
8 x Intel® Xeon® Platinum 8490H Processor 60C / 120T 1.9 GHz 112.5 MB Cache (350W) [+$130,345.20]

Memory

16GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$9,600.00]
32GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$27,392.00]
64GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$59,584.00]
96GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$119,680.00]
128GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$62,720.00]

M.2 DRIVE

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 24)

CONTROLLER CARD

Supermicro AOC-S3916L-H16iR-32DD SAS3/SATA 16-Port RAID Controller - 8GB Cache - PCIe 4.0 x8 8GB Cache PCI Express 4.0x8 [+$941.00]

Battery Backup

BTR-CVPM05 Supermicro CacheVault Module for Broadcom 3908/3916 12Gb/s SAS Controller (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 2)

Power Cables

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

VROC

Intel® Virtual RAID on CPU (VROC) - Intel Only Module - RAID 0,1,10,5 [+$49.00]
Intel® Virtual RAID on CPU (VROC) - Standard Module - RAID 0,1,10 [+$149.00]
Intel® Virtual RAID on CPU (VROC) - Premium Module - RAID 0,1,10,5 [+$319.00]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

NVIDIA Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
