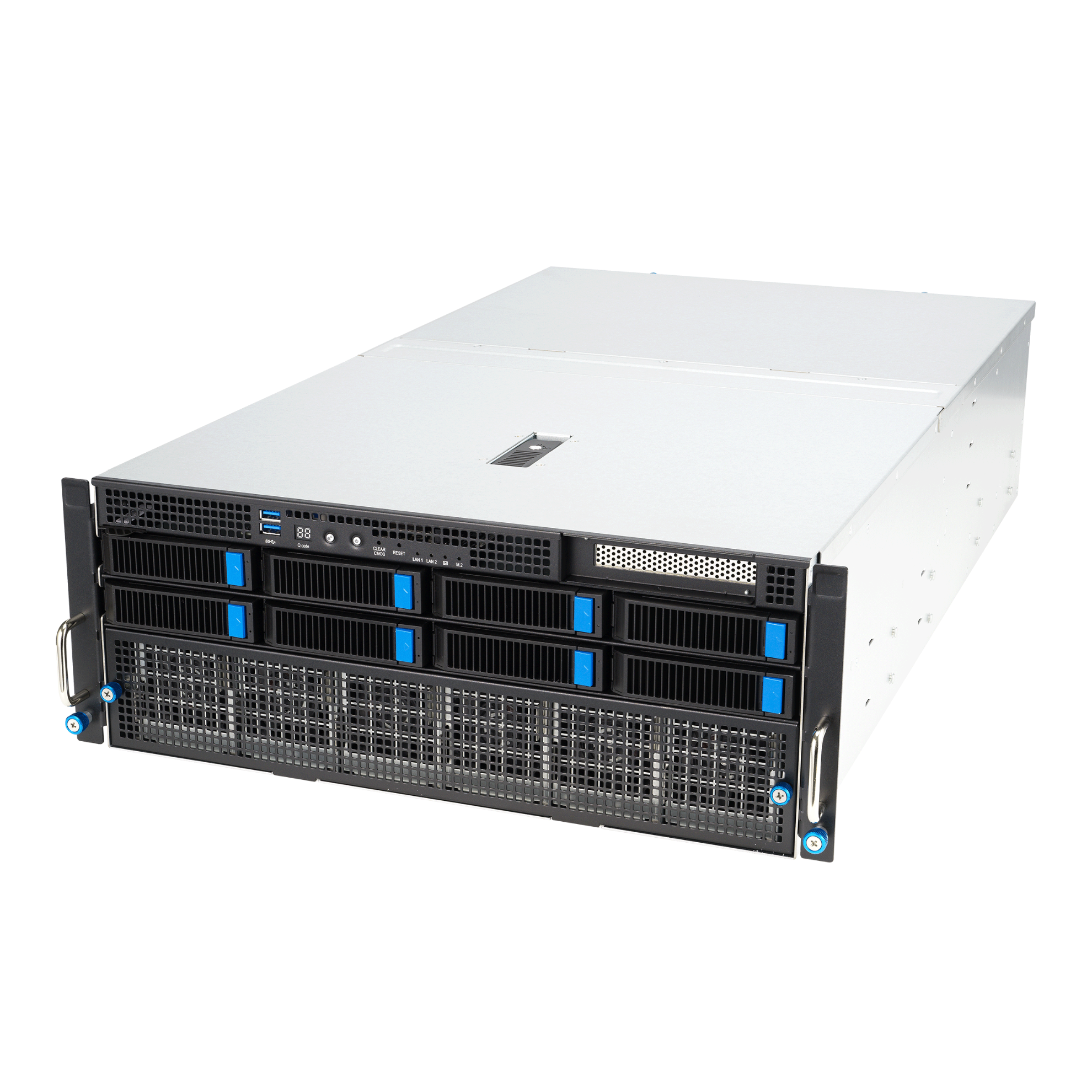

Picture of NTS Elite APEX 8-GPU PCIe Gen5 AI & HPC System

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

NTS Elite APEX 8-GPU PCIe Gen5 AI & HPC System

AMD EPYC 9004 dual-processor 4U GPU server that supports eight dual-slot GPUs, PCIe 5.0 Switch Solution, up to 24 DIMM, 13 PCIe 5.0 slots, eight NVMe, four 3000W Titanium power supplies, OCP 3.0 and ASMB11-iKVM
Part#: APXA034U8G-V2

Key Features

24 x DIMM, DDR5 4800/4400 RDIMM/ 3DS RDIMM
AMD EPYC™ 9004 Series
1 x M.2 (Up to 22110)
4 x PCIe slot for NIC (Gen5 x16 link)
1 x OCP3.0 socket option(Gen5 x16 links, will occupy one PCIe Slot)
1 x PCIe slot for HBA/RAID cards (Gen5 x16 link,LP,HL)
8 x PCIe slot for GPU (Gen5 x16 link, support up to eight dual slot GPU)
2+2 Redundant 2600W~3000W 80 PLUS Titanium Power Supply
8 x 3.5” Hot-swap HDD Bays





Configure & Buy Specifications



   Processor Support2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series
4th Generation AMD EPYC™ Processors with AMD 3D V-Cache technology
Memory
Total Slots 24 x DIMM slots (12 channel per CPU, 12 DIMM per CPU)
Capacity Maximum up to 3TB per CPU socket
Memory Type DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size 64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
Expansion Slots  Total PCI/PCI-X/PCI-E/PIKE Slots 13
  Slot Type 1 x PCIe x16 slot (Gen5 ,LP,HL) for HBA/RAID cards
  8 x PCIe x16 slot (Gen5, FH,FL) for dual-slot GPU card
  4 x PCIe x16 slot (Gen5 ,FH,FL) for NIC card
  1 x Gen5 x16 OCP socket option (will occupy one PCIe Slot)
Disk ControllerSATA Controller 4 x SATA 6Gbps ports
1 x M.2 connector (PCIe Gen3 x4 link)
SAS Controller Optional kits:
-Broadcom MegaRAID 9560-16i
-Broadcom MegaRAID 9540-8i
- ASUS PIKE II 3008 8-port HBA Card
- ASUS PIKE II 3108 8-port HW RAID Card
Storage Bays 8 x 3.5" Front Hot-swap Storage Bays
(backplane supports up to 8 x NVMe/SATA/SAS*)
*SAS support required an HBA/RAID card.
   Networking2 x 10GbE LAN ports (RJ45, X710-AT2)
or 2 x Gigabit LAN ports (RJ45, I350-AM2)
1 x Management Port (RJ45)
   Graphic
Aspeed AST2600 64MB
  Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
  Rear I/O Ports
1 x COM port
2 x 10GbE/1GbE LAN ports (RJ45, build for order)
1 x Management port (RJ45)
Switch/LED
Front Switch/LED:
1 x Power Button w/LED, 1 x Location Button w/LED, 1 x Message LED,
1 x Q-Code/Port 80 LED, 1 x Clear CMOS LED, 1 x Reset LED, 1 x M.2 LED
Rear Switch/LED:
1 x Power Button w/LED, 1 x Location Button w/LED
OS Support
Windows Server
RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware
Management Solution
ASUS Control Center (Classic)
Power Supply
2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply
2+1 Redundant 3000W 80 PLUS Platinum Power Supply
Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Dimension
800mm x 440mm x 174.5 mm (4U)
31.5’’x17.32’’x 6.87
Barebone
Processor
Memory
M.2 DRIVE
HARD DRIVE
(Max Quantity: 8)
U.2/U.3 NVMe Drive
(Max Quantity: 8)
GPU
(Max Quantity: 8)
GPU Bridge
(Max Quantity: 4)
CONTROLLER CARD
Battery Backup
NETWORK ADAPTER
(Max Quantity: 3)
Trusted Platform Module
OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
Software
NVIDIA Software
Warranty
$0.00
