| Form Factor | 8U Rackmount
Enclosure: 447 x 356 x 843mm (17.7" x 13.8" x 33.2")
Package: 750 x 700 x 1300mm (29.5" x 27.6" x 51" |
Processor
| Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: AMD: Instinct™ MI300X Accelerators
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: AMD Infinity Fabric™ Link |
System Memory
| Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |

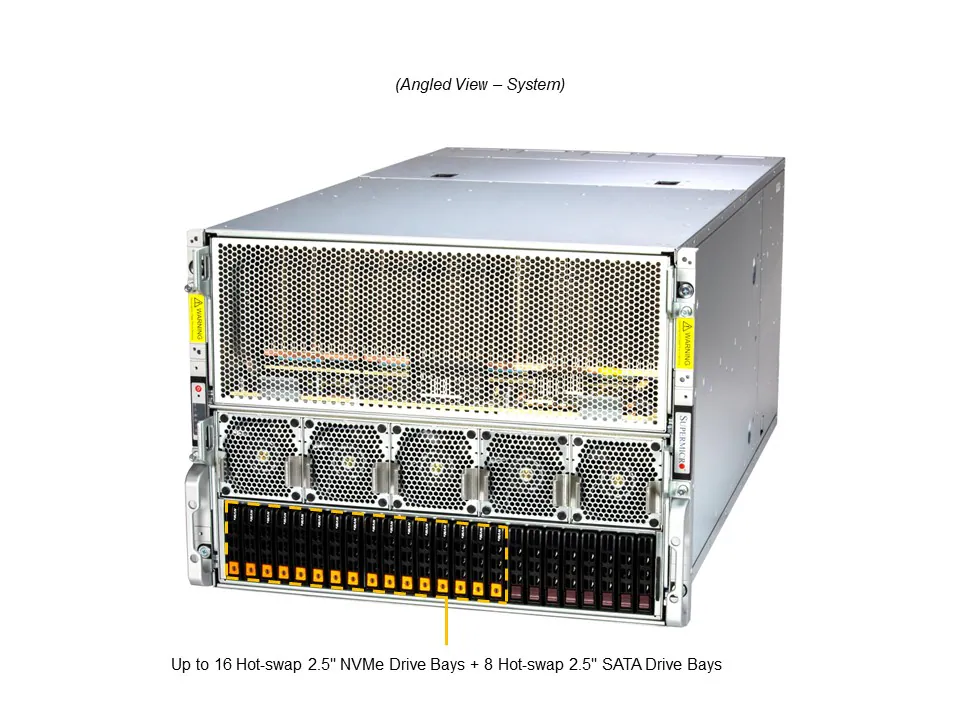

| Drive Bays Configuration | Default: Total 20 bays
12 front hot-swap 2.5" NVMe drive bays
8 front hot-swap 2.5" SATA drive bays
Option A: Total 4 bays
4 front hot-swap 2.5" NVMe drive bays
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key |
| Expansion Slots | Default
8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: 2 SFP28 25GbE with Broadcom® BCM57414 (optional)
2 RJ45 10GbE with Intel® X710-AT2 (optional)
|
Input / Output
| USB: 1 USB 3.0 Type-A port(Rear)
Video: 1 VGA port
|
System Cooling
| Fans: Up to 10 heavy duty fans with optimal fan speed control
|
Power Supply
| 6x 3000W Redundant Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 178.6 lbs (81 kg)
Net Weight: 116.22 lbs (53 kg)
Available Color: Silver
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
