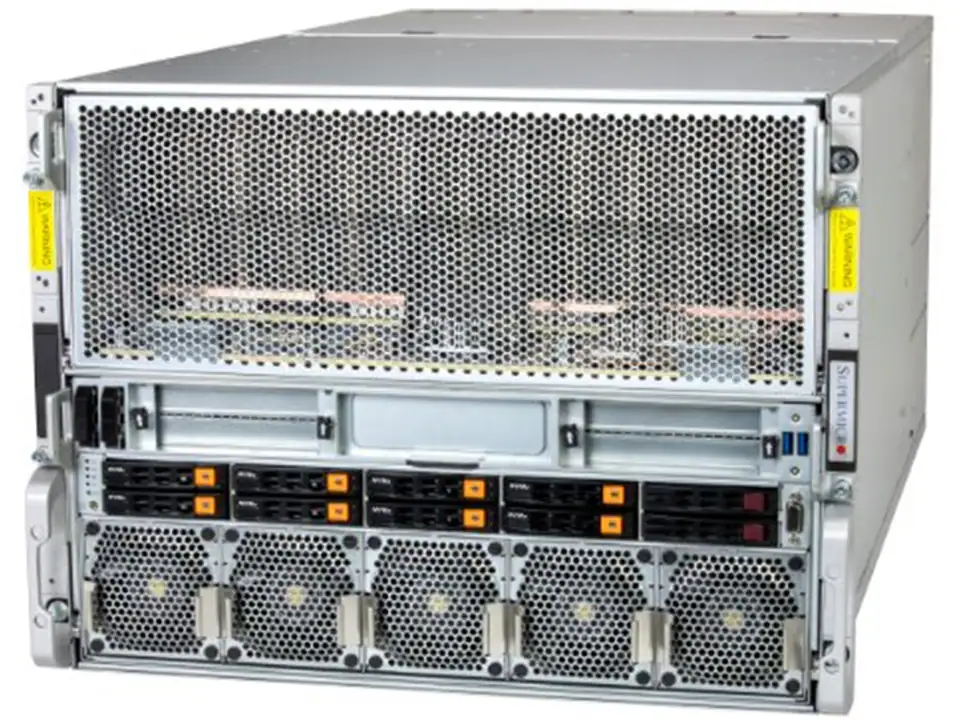

| Form Factor | 8U Rackmount
Enclosure: 447 x 356 x 843mm (17.6" x 13.8" x 33.2")
Package: 730 x 660 x 1280mm (28.74" x 26" x 50.39") |
Processor
| Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
Up to 384C/768T |
| GPU | Max GPU Count: 8 onboard GPUs
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: AMD Infinity Fabric™ Link |
System Memory
| Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor |
| Drive Bays Configuration | Default: Total 10 bays
2 front hot-swap 2.5" SATA drive bays
8 front hot-swap 2.5" NVMe drive bays
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default
8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots
M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default)) |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: 2 RJ45 10GbE with Intel® X710
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 Type-A ports(Rear)
Video: 1 VGA port
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 10 heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
|
Power Supply
| 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
7 +1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 158.73 lbs (72 kg)
Net Weight: 105.82 lbs (48 kg)
Available Color: Silver
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
