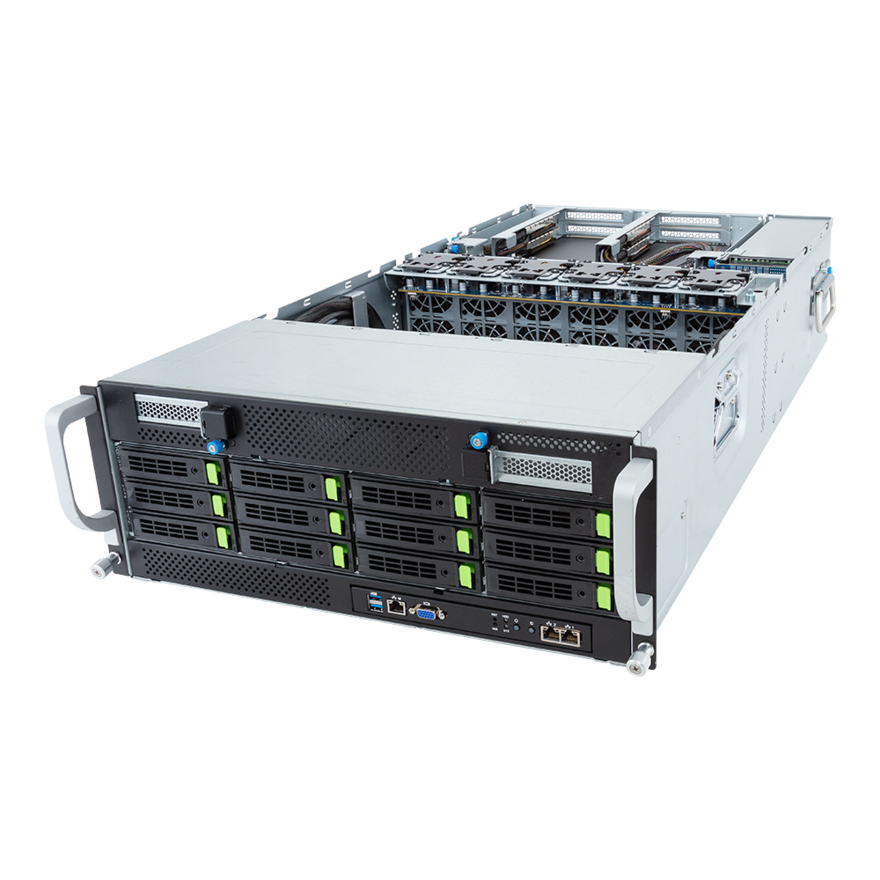

| Dimensions | 4U (W448 x H176 x D880 mm) |
Motherboard
| MSB3-G40 |
| CPU | 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Dual processor, TDP up to 350W |
Socket
| 2 x LGA 4677 (Socket E) |
| Chipset | Intel C741 |
| Memory | 8-Channel DDR5 RDIMM, 32 x DIMMs
[5th Gen Intel Xeon] Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
[4th Gen Intel Xeon] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[Intel Xeon Max Series] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
5600 MT/s support under 2DPC configuration requires verified memory
and BIOS setup |
LAN
| 2 x 10Gb/s LAN (1 x Intel X710-AT2), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x VGA port
|
Storage
| Front hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x1
SAS card is required to support SAS drives.
|
RAID
| Intel SATA RAID 0/1/10/5
Onboard VROC key header
Support optional RAID add-in cards
|
PCIe Expansion
Slots
| Rear:
8 x FHFL PCIe Gen5 x16, for GPUs
4 x FHFL PCIe Gen5 x16
Front:
2 x LP PCIe Gen5 x16
|
I/O Ports
| Front:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| TPM | 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| 3+1 3000W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
*The system power supply requires C19 power cord.
|
| System Management | ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface |
| System Fans | 12 x 60x60x38mm
Two fans share a single power connector |
Operating
Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
