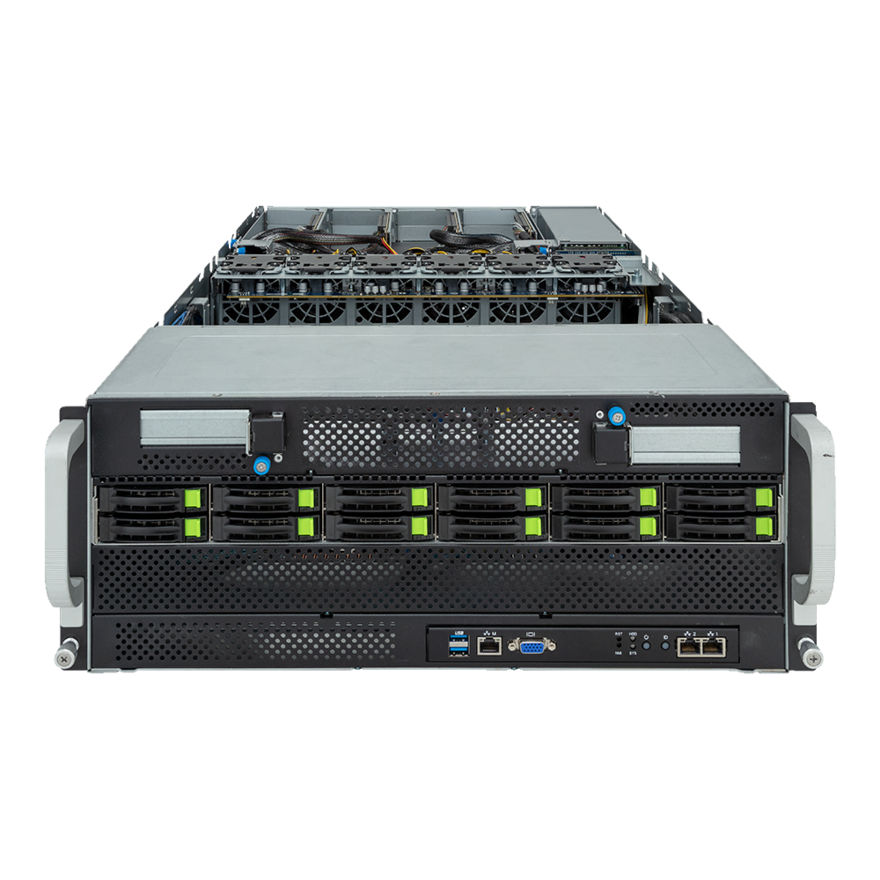

| Dimensions | 4U (W448 x H176 x D880 mm) |
Motherboard
| MZB3-G41 |
| CPU | AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
- At ambient 25°C, cTDP up to 500W |
Sock
| 2 x LGA 6096 (Socket SP5) |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 48 x DIMMs
[EPYC 9005] Up to 5200 MT/s (1DPC), 4400 MT/s (1R 2DPC),
4000 MT/s (2R 2DPC)
[EPYC 9004] Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC) |
LAN
| 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Supports NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED® AST2600
- 1 x VGA port
|
Storage
| Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4
SAS card is required to support SAS drives.
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen3 x4
|
Expansion Slots
| 8 x FHFL PCIe Gen5 x16 slots for GPUs (with PCIe switches)
8 x LP PCIe Gen5 x16 slots on the rear side (with PCIe switches)
2 x LP PCIe Gen5 x16 slots on the front side
The system is validated for use with a single GPU model.
|
RAID
| Require RAID add-in cards
|
I/O Ports
| Front: 2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
|
Security Modules
| 1 x TPM header with SPI interface (Optional TPM2.0 kit: CTM010)
|
Power Supply
| 3+1 3000W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
The system power supply requires C19 power cord
|
| System Management | ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface |
| OS Support | Windows Server, Red Hat Enterprise Linux server, Ubuntu,
SUSE Linux Enterprise server, VMware ESXi, Citrix Hypervisor |
| System Fans | 12 x 60x60x38mm (23,000rpm) |
Operating
Properties | Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
