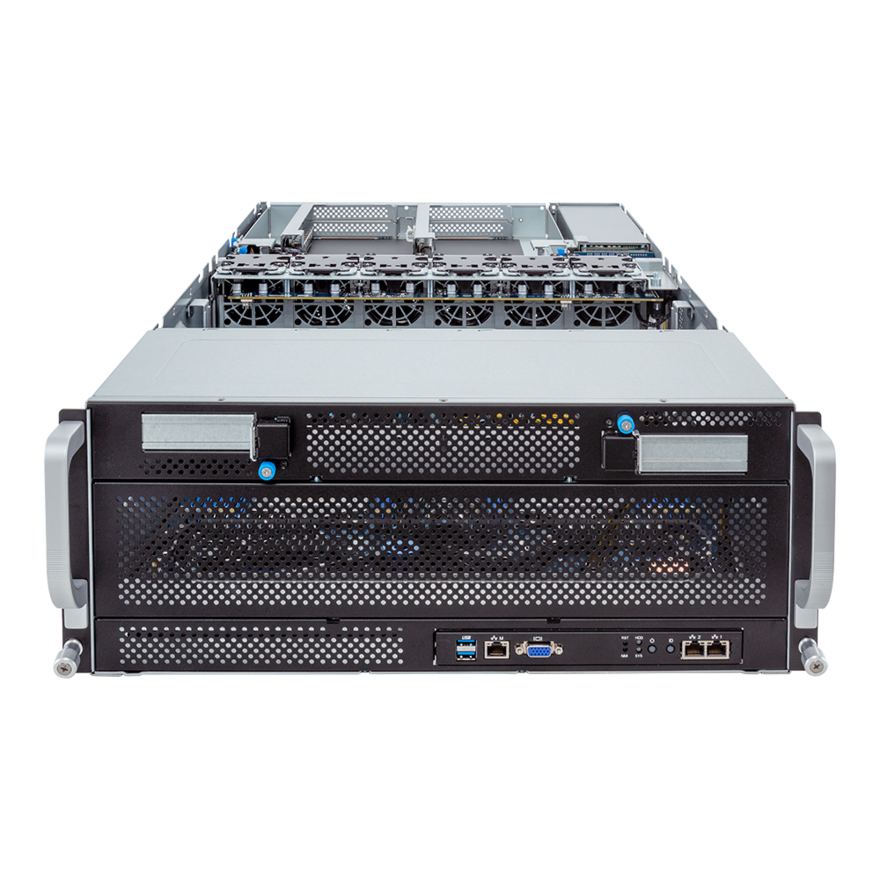

| Dimensions | 4U (W448 x H176 x D880 mm) |
Motherboard
| MZB3-G43 |
| CPU | AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W |
| Socket | 2 x LGA 6096 (Socket SP5) |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 24 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s |
LAN
| 2 x 10Gb/s LAN (1 x Intel X710-AT2), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x VGA port
|
Storage
| Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
1 x M.2 (2280/22110), PCIe Gen3 x1
|
PCIe Expansion
Slots
| 8 x FHFL PCIe Gen5 x16, for GPUs
2 x FHFL PCIe Gen5 x16
|
I/O Ports
| Front:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| 3+1 3000W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
*The system power supply requires C19 power cord.
|
System
Management
| ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
|
System Fans
| 12 x 60x60x38mm
|
| Operating Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
