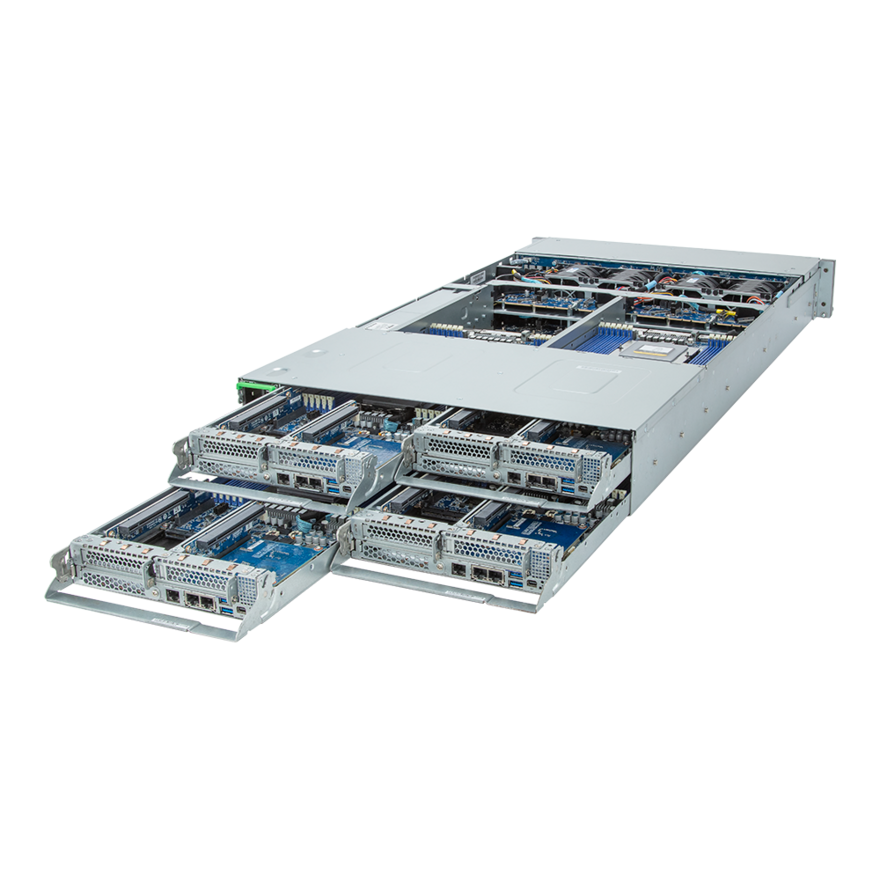

| Dimensions | 2U 4-Node - Rear access (W440 x H87.5 x D877 mm) |
CPU
| AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor per node, cTDP up to 240W |
| Socket | 8 x LGA 6096 (Socket SP5) |
Chipset
| System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 96 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s |
| LAN | 8 x 1Gb/s LAN (4 x Intel I350-AM2), Support NCSI
4 x 10/100/1000 Mbps Management LAN |
Video
| Integrated in ASPEED AST2600 x 4
- 4 x Mini-DP
|
Storage
| Front hot-swap:
24 x 2.5" Gen4 NVMe/SATA/SAS
Optional internal M.2:
4 x M.2 (2280/22110), PCIe Gen4 x4
|
RAID
| Require RAID add-in cards
|
PCIe Expansion
Slots
| 8 x LP PCIe Gen5 x16
4 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Front:
1 x CMC status LED, 1 x CMC reset button
Rear:
8 x USB 3.2 Gen1, 4 x Mini-DP, 8 x RJ45, 4 x MLAN
|
Backplane Board
| PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| Dual 2600W 80 PLUS Titanium redundant power supply
AC Input: 100-240V
|
System
Management
| ASPEED AST2600 Baseboard Management Controller
ASPEED AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
|
| System Fans | 4 x 80x80x80mm (16,500rpm) |
Operating
Properties | Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
