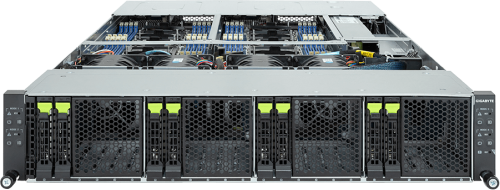

| Dimensions | 2U 4-Node - Rear access (W440 x H87.5 x D850 mm) |
CPU
| 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Dual processor per node, TDP up to 270W
- At 30°C ambient, TDP up to 350W
- With no OCP card at 35°C ambient, TDP up to 350W |
| Socket | 8 x LGA 4677 (Socket E) |
Chipset
| Intel C741 |
| Memory | 8-Channel DDR5 RDIMM, 64 x DIMMs
[5th Gen Intel Xeon] Up to 5600 MT/s
[4th Gen Intel Xeon] Up to 4800 MT/s
[Intel Xeon Max Series] Up to 4800 MT/s |
| LAN | 4 x 10/100/1000 Mbps Management LAN
1 x CMC Management LAN |
Video
| Integrated in ASPEED AST2600 x 4
- 4 x VGA ports
|
Storage
| Front hot-swap:
8 x 2.5" Gen4 NVMe/SATA/SAS
Optional internal M.2:
4 x M.2 (2280/22110), PCIe Gen4 x4
|
RAID
| Intel SATA RAID 0/1
Onboard VROC key header
Support optional RAID add-in cards
|
PCIe Expansion
Slots
| 4 x LP PCIe Gen5 x16
4 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Front:
1 x CMC status LED, 1 x CMC reset button
Rear:
8 x USB 3.2 Gen1, 4 x VGA, 4 x MLAN, 1 x CMC port
|
Backplane Board
| PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| Dual 3000W 80 PLUS Titanium redundant power supply
Available for 2+1 redundant power supply configuration (optional)
AC Input: 100-240V
|
System
Management
| ASPEED AST2600 Baseboard Management Controller
ASPEED AST2520 Chassis Management Controller
|
| System Fans | 4 x 80x80x80mm |
Operating
Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
