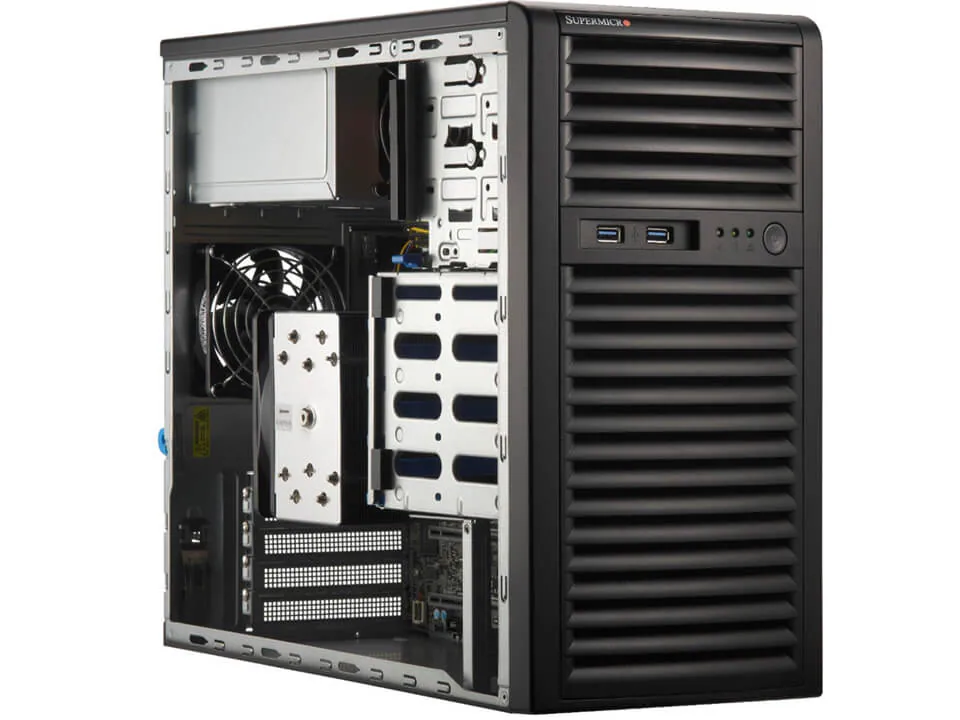

NTS Elite Studio 4‑Bay Mini‑Tower Workstation Server 4 Drive Bays

UP mid-tower workstation for SMB and content creation
Part#: STOA001G

Key Applications

  • 2D/3D Content Creation
  • Email/Firewall/Application Server
  • Designed for small and medium businesses

Key Features

  1. AMD EPYC™ 4004 Series Processor
  2. 4 Dual channel ECC/Non-ECC DDR5 unbuffered DIMM slots supporting up to 192GB memory
  3. 2 PCIe 5.0 x16 (16/NA or 8/8) high-throughput slots and 2 PCIe 5.0x4 M.2 slots
  4. Dual 1GbE LAN (Intel® I210-AT)
Configure & Buy Specifications



  Form FactorMini-Tower
Enclosure: 184 x 362 x 425mm (7.25" x 14.25" x 16.75")
Package: 279 x 508 x 533mm (11" x 20" x 21")
Processor
Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Up to 16C/32T
GPU Max GPU Count: Up to 1 double-width GPU
 Supported GPU:
 NVIDIA PCIe: RTX 2000 Ada, RTX 4070, RTX 4000 Ada Generation, RTX A4000, RTX A2000, RTX 6000 Ada Generation
 AMD PCIe: Radeon Pro W7500, Radeon Pro W7800
System Memory
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Drive Bays ConfigurationDefault: Total 4 bays
4 front fixed 3.5" SATA drive bays
Option A: Total 4 bays
4 front fixed 2.5" SATA drive bays
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
Peripheral Bays: 2 5.25" peripheral bays
  Expansion Slots Default
1 PCIe 5.0 x16 FHFL slot
Option A
2 PCIe 5.0 x8 FHFL slots
  On-Board Devices
SATA: SATA (6Gbps) ; RAID 0/1 support
NVMe: NVMe; RAID 0/1 support(Native)
Chipset: AMD B650
Network Connectivity: 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2 RJ45 1GbE with Intel® I210-AT
  Input / Output
Video: 1 VGA port
1 HDMI 2.0b port
1 DisplayPort 1.4a port
Audio: Rear Audio
  System Cooling
Fans: Up to 1x 90mm Fan(s)
Up to 1x 80mm Fan(s)
Air Shroud: 1 Air Shroud
Power Supply
1x 668W Platinum Level (92%) power supply
System BIOS
BIOS Type: AMI 32MB SPI Flash
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
PC Health Monitoring
Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature,
CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Dimensions and Weight
Weight: Gross Weight: 22 lbs (9.98 kg)
Net Weight: 18 lbs (8.16 kg)
Available Color: Black
Operating Environment
RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Barebone
Processor
Memory
M.2 DRIVE
(Max Quantity: 2)
HARD DRIVE
(Max Quantity: 4)
Video Card
NETWORK ADAPTER
(Max Quantity: 2)
Trusted Platform Module
OPERATING SYSTEM
Warranty
$0.00
