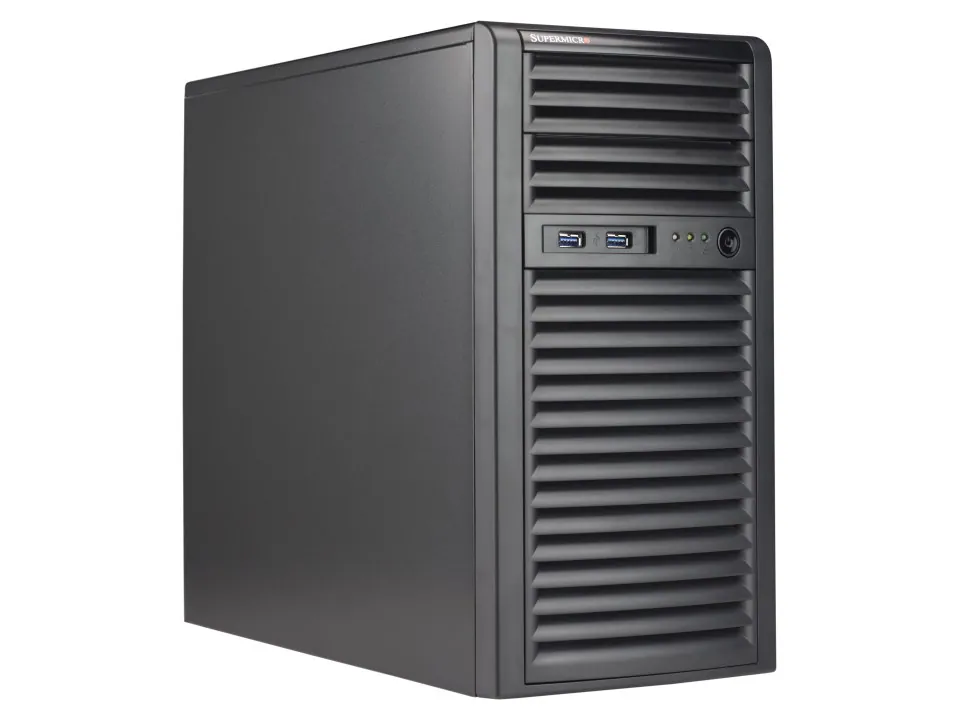

| Form Factor | mini-tower
Enclosure: 184 x 362 x 425mm (7.25" x 14.25" x 16.75")
Package: 279 x 508 x 533mm (11" x 20" x 21") |
Processor
| Single Socket H5 (LGA-1200)
Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Up to 8C/16T; Up to 16MB Cache |
| GPU | Up to 1 double-width GPU |
System Memory
| Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM |
| Drive Bays Configuration | Default: Total 4 bays
4 internal fixed 3.5" SATA drive bays
M.2: 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
Peripheral Bays: 2 5.25" bays |
| Expansion Slots | Default
2 PCIe 4.0 x8 FHFL slots
1 PCIe 4.0 x4 FHFL slot
1 PCIe 3.0 x2 FHFL slot |
On-Board Devices
| SATA: SATA (6Gbps)
Chipset: Intel® C252
Network Connectivity: 2 RJ45 1GbE with Intel® I210-AT
|
Input / Output
| USB: 2 USB 2.0 Type-A ports(rear)
Video: 1 VGA port
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 1x 90mm Fan(s)
|
Power Supply
| 1x 400W Gold Level (90%) power supply
|
System BIOS
| BIOS Type: AMI 256MB SPI Flash
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature,
CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features:
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control
of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage
and Frequency Overclocking, WOL
|
Dimensions and Weight
| Weight: Gross Weight: 20 lbs (9.07 kg)
Net Weight: 16 lbs (7.26 kg)
Available Color: Black
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
