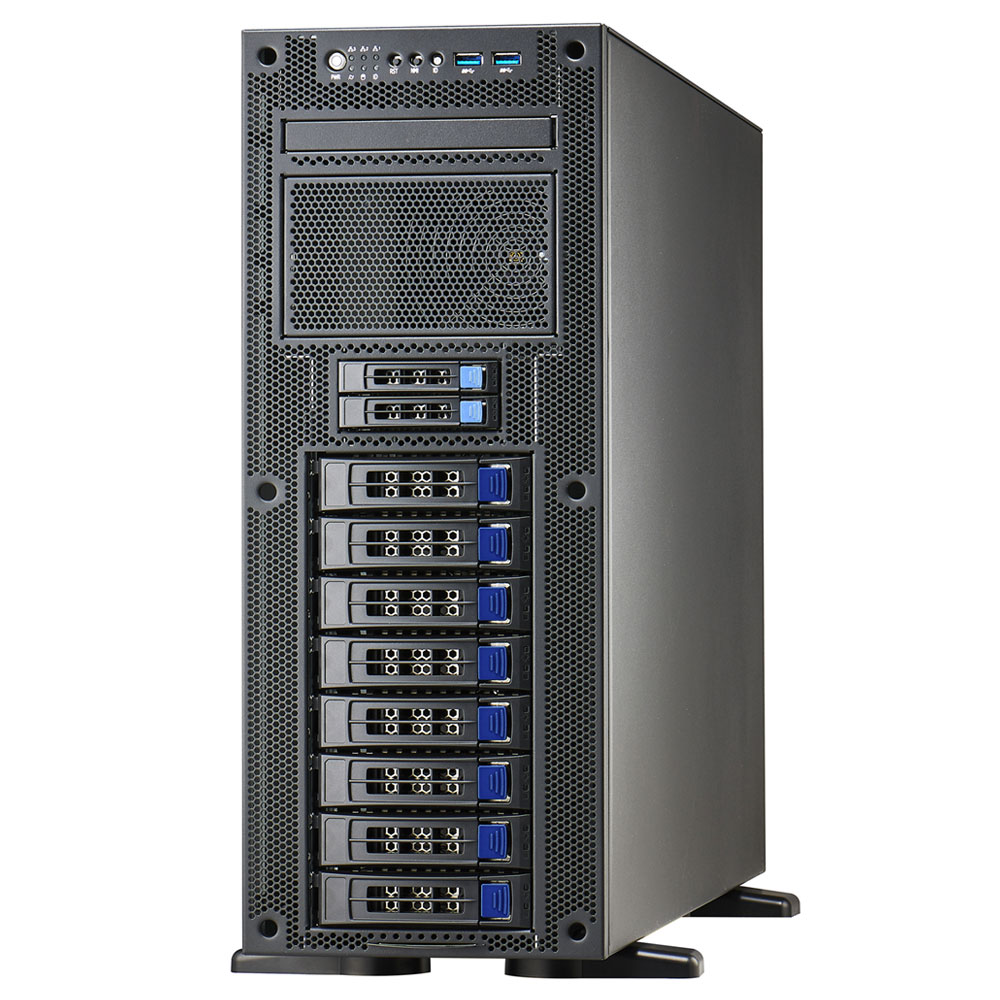

| System | Form Factor 4U Tower
Chassis Model FT65T
Dimension (D x W x H) 25.5” x 16.8” x 6.9” (650 x 427 x 176mm)
Motherboard Name S8050GM4NE-2T
Board Dimension CEB, 12"x10.5" (305x267mm)
|
Front Panel
| Buttons (1) ID / (1) PWR w/ LED / (1) RST
LEDs (1) HDD / (1) ID / (2) LAN / (1) System Event
I/O Ports (2) USB 3.0 ports |
| External Drive Bay | Q'ty / Type (2) 2.5" Hot-Swap NVMe SSDs / (8) 3.5" Hot-swap HDD/SSDs
Front Drive Bay Interface (2) SATA 6Gb/s / NVMe / (8) SATA 6Gb/s / SAS 12Gb/s
Front Drive Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe
Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact MiTAC technical support if a discrete SAS HBA/RAID adapter is required. |
System Cooling Configuration
| Fan (2) 8038 exhausted fans module at rear / (3) easy-swap 12038 fans |
| Power Supply | Type ATX
Input Range AC 100~240V/15~12A
Frequency 50/60 Hz
Output Watts 1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency 80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac) |
| Processor | Q'ty / Socket Type (1) AMD Socket SP5
Supported CPU Series (1) AMD EPYC™ 9004/9005 Series Processors
Thermal Design Power Wattage Max up to 320W (cTDP) |
Memory
| Supported DIMM Qty (8) DIMM slots
DIMM Type / Speed RDIMM / RDIMM-3DS DDR5 6400 MHz
Capacity Up to 2,048GB RDIMM/3DS RDIMM DDR5 6400 memory
Memory channel 8 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (5) PCIe Gen 5 x16 slots
Physical Dimension Abbreviation FH/10.5”L (Full-height / 10.5” in length ): 4.4" x 10.5" (111.2 x 266.7mm)
|
LAN
| Q'ty / Port (2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI
Controller Intel I210-AT / Intel X710-AT2
PHY Realtek RTL8211F
|
Storage SATA
| Connector (10) SATA
Controller Direct from AMD EPYC CPU
Speed 6Gb/s
RAID N/A
|
Storage NVMe
| Connector (M.2) (2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2) (2) 2.5"NVMe SSD
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
| I/O Ports | USB (2) USB3.0 ports (@ rear)
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10GbE ports + (2) GbE ports + (1) dedicated GbE for IPMI
Button ID Button |
| TPM (Optional) | TPM Support Please refer to our TPM supported list.
Interface SPI |
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Over voltage warning indicator
Others Watchdog timer support
|
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class B
CE (DoC) Class B
VCCI Class B
C-Tick |
| Operating System | OS supported list Please refer to our AVL support lists. |
RoHS
| RoHS 6/6 Compliant Yes
|
Package Contains
| Barebone (1) FT65T-B8050 Barebone
|
