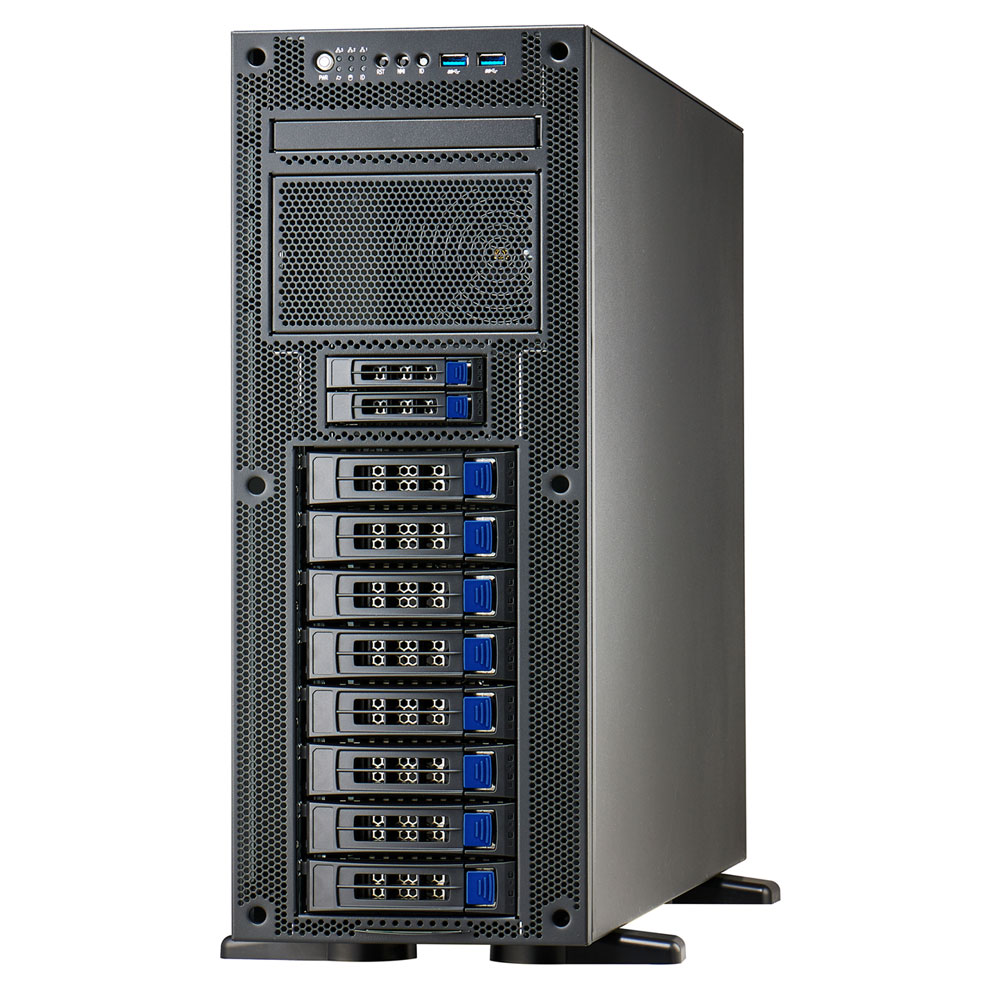

| System | Form Factor 4U Tower
Chassis Model FT65T
Dimension (D x W x H) 25.5” x 16.8” x 6.9” (650 x 427 x 176mm)
Motherboard Name S7130GM2NR-2T
Board Dimension EATX, 12"x13" (305x330mm)
|
Front Panel
| Buttons (1) PWR w/ LED / (1) UID / (1) RST / (1) NMI
LEDs (1) HDD / (1) ID / (3) LAN / (1) System Event
I/O Ports (2) USB 3.0 ports |
| External Drive Bay | Q'ty / Type (2) 2.5" Hot-Swap HDD/SSDs / (8) 3.5" Hot-Swap HDD/SSDs
Front Drive Bay Interface (2) SATA 6Gb/s / (8) SATA 6Gb/s / SAS 12Gb/s
Front Drive Backplane Support SAS 12Gb/s /SATA 6Gb/s
Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact MiTAC technical support if a discrete SAS HBA/RAID adapter is required. |
System Cooling Configuration
| Fan (3) easy-swap 12038 fans |
| Power Supply | Type ATX
Input Range AC 100~240V/15~12A
Frequency 50/60 Hz
Output Watts 1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency 80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)
Redundancy N/A |
| Processor | Q'ty / Socket Type (2) LGA4677
Supported CPU Series 4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors
Thermal Design Power Wattage Max up to 250W (TDP) |
Chipset
| PCH Intel C741
|
Memory
| Supported DIMM Qty (8)+(8) DIMM slots
DIMM Type / Speed RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) - 5th Gen.
Capacity Up to 2,048GB RDIMM/RDIMM-3DS DDR5 5600/4800 *Follow latest Intel DDR5 Memory POR
Memory channel 8 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (2) PCIe Gen 5 x8 slots / (3) PCIe Gen 5 x16 slots
|
LAN
| Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X710-AT2
PHY Realtek RTL8211F
|
Storage SATA
| Connector (10) SATA
Controller Intel C741
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
|
Storage NVMe
| Connector (M.2) (1) 2280 (by PCIe 4.0 interface)
|
Storage (Optional)
| VROC Support Yes
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
I/O Ports
| USB (1) USB2.0 TYPE-A conn. / (1) USB3.1 Gen.1 header / (1) USB3.1 Gen.1 ports
COM (1) header
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10 GbE ports + (1) dedicated GbE for IPMI
SATA (14) SATA-III ports from AHCI
Button ID Button / Power Button / Reset Button
|
| TPM (Optional) | TPM Support Please refer to our TPM supported list.
Interface SPI |
| System Monitoring | Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others Watchdog timer support |
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.5/PnP/Wake on LAN / ACPI 6.4 / ACPI sleeping states S0, S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
RCM Yes
VCCI Yes |
| Operating System | OS supported list Please refer to our AVL support lists. |
