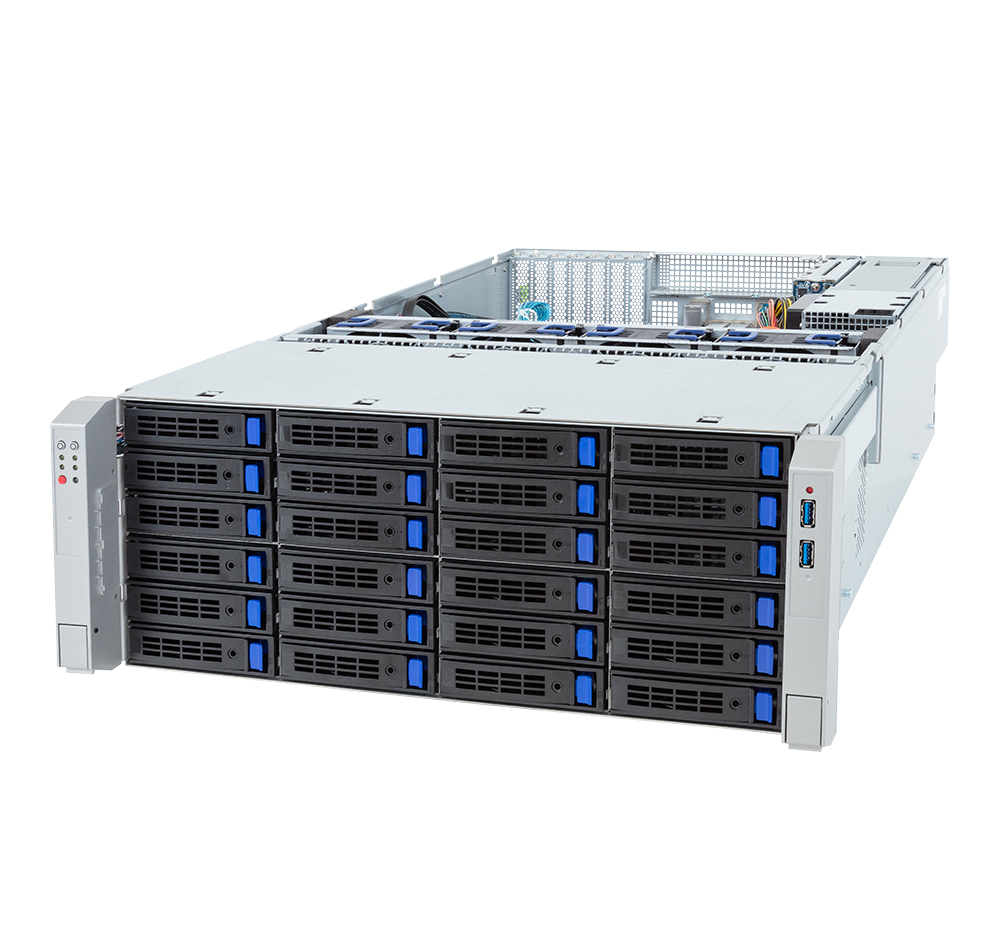

| Dimensions | 4U (W448.5 x H174.3 x D625 mm) |
Motherboard
| MZ33-AR0 |
| CPU | AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 300W |
Socket
| 1 x LGA 6096 (Socket SP5) |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 24 x DIMMs
[EPYC 9005] Up to 4800 MT/s (1DPC),
4000 MT/s (1R 2DPC), 3600 MT/s (2R 2DPC)
[EPYC 9004] Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC) |
LAN
| 2 x 10Gb/s LAN (1 x Broadcom BCM57416), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x VGA port
|
Storage
| Front hot-swap:
24 x 3.5"/2.5" SATA/SAS
Rear hot-swap:
12 x 3.5"/2.5" SATA/SAS
Rear:
2 x 2.5" SATA/SAS , for boot drives
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4
|
PCIe Expansion Slots
| 4 x LP PCIe Gen5 x16
|
I/O Ports
| Front:
2 x USB 3.2 Gen1
Rear:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
|
Backplane Board
| Front- CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Rear - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| Dual 1600W 80 PLUS Titanium redundant power supply
AC Input: 100-240V
|
System Fans
| 8 x 80x80x38mm
|
| Operating Properties |
Properties
Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
