NTS Elite Command 1U High‑Performance NVMe Storage Server 32‑Drive NVMe

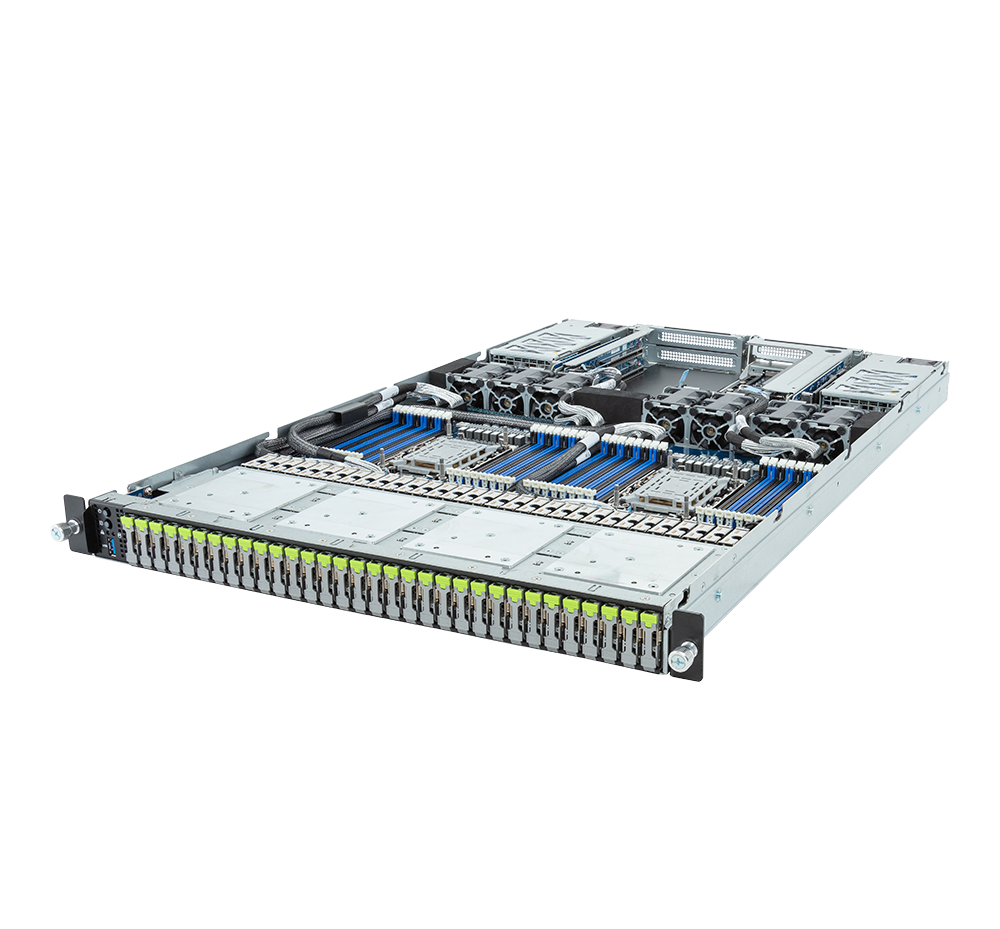

Picture of NTS Elite Command 1U High‑Performance NVMe Storage Server 32‑Drive NVMe

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

NTS Elite Command 1U High‑Performance NVMe Storage Server 32‑Drive NVMe

Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 1U DP 32-Bay E1.S NVMe 1600W

Part#: CMDI011U32

Key Applications

Storage Server

Key Features

Dual 5th/4th Gen Intel^® Xeon^® Scalable Processors
Dual Intel^® Xeon^® CPU Max Series
8-Channel DDR5 RDIMM, 32 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel^® I350-AM2
32 x E1.S NVMe hot-swappable bays
2 x M.2 slots with PCIe Gen3 x4 or SATA interface
3 x FHHL PCIe Gen5 x16 and x8 slots
Compatible with SupremeRAID™ by Graid Technology
1+1 2000W 80 PLUS Titanium redundant power supplies

Configure & Buy Specifications

Dimensions	1U (W438 x H43.5 x D730 mm)
CPU	5th/4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W
Socket	2 x LGA 4677 (Socket E)
Chipset	Intel® C741 Chipset
Memory	32 x DIMM slots, 8-Channel DDR5 memory RDIMM up to 96GB; 3DS RDIMM up to 256GB Memory speed: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
LAN	2 x 1Gb/s LAN ports (1 x Intel® I350-AM2) - Supported NCSI 1 x 10/100/1000 management LAN
Video	ASPEED® AST2600 Integrated 2D Graphic Adapter
Storage	32 x 9.5mm E1.S NVMe hot-swappable bays 2 x M.2 slots (M-key, PCIe Gen3 x4 or SATA, supports 2280/22110)
RAID	Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid RAID Card models: SR-1000-FD32, SR-1010-FD32 Support RAID 0/1/5/6/10
ExpansionSlots	1 x PCIe x16 (Gen5 x16) FHHL slot 1 x PCIe x16 (Gen5 x16 or x8) FHHL slot 1 x PCIe x16 (Gen5 x0 or x8) FHHL slot
I/O Ports	Front: 1 x USB 3.2 Gen1 Rear: 2 x USB 3.2 Gen1, 1 x Mini-DP, 2 x RJ45, 1 x MLAN Internal: 2 x SATA connectors (for SATA DOM), 1 x TPM header, 1 x VROC connector
TPM	1 x TPM header with SPI interface (Optional TPM2.0 kit: CTM010)
Power Supply	1+1 2000W 80 PLUS Titanium redundant power supplies AC Input: 100-240V
OS Compatibility	Windows Server 2019 / 2022 RHEL 8.6 / 8.7 / 8.8 / 8.9 /8.10 / 9.0 / 9.1 / 9.2 / 9.3 / 9.4 SLES 15 SP4 / SP5 / SP6 Ubuntu 22.04 / 22.04.1 / 22.04.2 / 22.04.3 / 22.04.4 / 24.04 LTS VMware ESXi 7.0 Update 3o / 8.0 Update 1, Update 2, Update 3 Citrix Hypervisor 8.2 LTSR CU1
System Fans	7 x 40x40x56mm (32,000rpm)
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)

Barebone

1U Xeon Scalable - 32x E1.S NVMe Gen5 - Dual-Port Ethernet - 2000W Redundant

Processor

2 x Intel® Xeon® Silver 4410Y Processor 12C / 24T 2.0 GHz 30 MB Cache (150W) [+$1,080.88]
2 x Intel® Xeon® Silver 4416+ Processor 20C / 40T 2.0 GHz 37.5 MB Cache (165W) [+$2,256.60]
2 x Intel® Xeon® Gold 5418Y Processor 24C / 48T 2.0 GHz 45 MB Cache (185W) [+$2,845.20]
2 x Intel® Xeon® Gold 5420+ Processor 28C / 56T 2.0 GHz 52.5 MB Cache (205W) [+$3,545.70]
2 x Intel® Xeon® Gold 6430 Processor 32C / 64T 2.1 GHz 60 MB Cache (270W) [+$4,083.04]
2 x Intel® Xeon® Gold 6438Y+ Processor 32C / 64T 2.0 GHz 60 MB Cache (205W) [+$6,022.00]
2 x Intel® Xeon® Platinum 8452Y Processor 36C / 72T 2.0 GHz 67.5 MB Cache (300W) [+$7,659.90]
2 x Intel® Xeon® Gold 5415+ Processor 8C / 16T 2.9 GHz 22.5 MB Cache (150W) [+$2,044.78]
2 x Intel® Xeon® Gold 6434 Processor 8C / 16T 3.7 GHz 22.5 MB Cache (195W) [+$4,999.76]
2 x Intel® Xeon® Gold 6426Y Processor 16C / 32T 2.5 GHz 37.5 MB Cache (185W) [+$2,911.98]
2 x Intel® Xeon® Gold 6444Y Processor 16C / 32T 3.6 GHz 45 MB Cache (270W) [+$6,946.04]
2 x Intel® Xeon® Gold 6442Y Processor 24C / 48T 2.6 GHz 60 MB Cache (225W) [+$5,520.68]
2 x Intel® Xeon® Gold 6448Y Processor 32C / 64T 2.1 GHz 60 MB Cache (225W) [+$6,870.32]
2 x Intel® Xeon® Platinum 8462Y+ Processor 32C / 64T 2.8 GHz 60 MB Cache (300W) [+$11,396.74]
2 x Intel® Xeon® Platinum 8460Y+ Processor 40C / 80T 2.0 GHz 105 MB Cache (300W) [+$10,654.90]
2 x Intel® Xeon® Gold 5418N Processor 24C / 48T 1.8 GHz 45 MB Cache (165W) [+$3,192.96]
2 x Intel® Xeon® Gold 6428N Processor 32C / 64T 1.8 GHz 60 MB Cache (185W) [+$6,138.00]
2 x Intel® Xeon® Gold 6438N Processor 32C / 64T 2.0 GHz 60 MB Cache (205W) [+$6,427.18]
2 x Intel® Xeon® Platinum 8470N Processor 52C / 104T 1.7 GHz 97.5 MB Cache (300W) [+$18,250.42]
2 x Intel® Xeon® Gold 5416S Processor 16C / 32T 2.0 GHz 30 MB Cache (150W) [+$1,811.00]
2 x Intel® Xeon® Gold 6454S Processor 32C / 64T 2.20 GHz 60 MB Cache (270W) [+$6,052.18]
2 x Intel® Xeon® Gold 6438M Processor 32C / 64T 2.2 GHz 60 MB Cache (205W) [+$6,275.58]
2 x Intel® Xeon® Gold 6434H Processor 8C / 16T 3.7 GHz 22.5 MB Cache (195W) [+$5,887.80]
2 x Intel® Xeon® Gold 6416H Processor 18C / 36T 2.2 GHz 45 MB Cache (165W) [+$2,769.32]
2 x Intel® Xeon® Gold 6418H Processor 24C / 48T 2.1 GHz 60 MB Cache (185W) [+$3,960.88]
2 x Intel® Xeon® Gold 6448H Processor 32C / 64T 2.4 GHz 60 MB Cache (250W) [+$7,013.72]
2 x Intel® Xeon® Platinum 8444H Processor 16C / 32T 2.9 GHz 45 MB Cache (270W) [+$8,117.98]
2 x Intel® Xeon® Platinum 8450H Processor 28C / 56T 2.0 GHz 75 MB Cache (250W) [+$9,026.52]
2 x Intel® Xeon® Platinum 8454H Processor 32C / 64T 2.1 GHz 82.5 MB Cache (270W) [+$12,537.60]
2 x Intel® Xeon® Silver 4514Y Processor 16C / 32T 2.0 GHz 30 MB Cache (150W) [+$1,497.20]
2 x Intel® Xeon® Gold 5520+ Processor 28C / 56T 2.2 GHz 52.5 MB Cache (205W) [+$3,146.10]
2 x Intel® Xeon® Gold 6530 Processor 32C / 64T 2.1 GHz 160 MB Cache (270W) [+$4,081.30]
2 x Intel® Xeon® Gold 5515+ Processor 8C / 16T 3.2 GHz 22.5 MB Cache (165W) [+$2,108.28]
2 x Intel® Xeon® Gold 6526Y Processor 16C / 32T 2.8 GHz 37.5 MB Cache (195W) [+$2,910.18]
2 x Intel® Xeon® Gold 6534 Processor 8C / 16T 3.9 GHz 22.5 MB Cache (195W) [+$5,400.00]
2 x Intel® Xeon® Gold 6542Y Processor 24C / 48T 2.9 GHz 60 MB Cache (250W) [+$5,516.90]
2 x Intel® Xeon® Gold 6544Y Processor 16C / 32T 3.6 GHz 45 MB Cache (270W) [+$6,944.32]
2 x Intel® Xeon® Gold 6548Y+ Processor 32C / 64T 2.5 GHz 60 MB Cache (250W) [+$7,145.30]
2 x Intel® Xeon® Platinum 8562Y+ Processor 32C / 64T 2.8 GHz 60 MB Cache (300W) [+$11,396.74]
2 x Intel® Xeon® Gold 6538N Processor 32C / 64T 2.1 GHz 60 MB Cache (205W) [+$6,425.44]
2 x Intel® Xeon® Gold 6548N Processor 32C / 64T 2.8 GHz 60 MB Cache (250W) [+$7,428.24]
2 x Intel® Xeon® Gold 6554S Processor 36C / 72T 2.2 GHz 180 MB Cache (270W) [+$6,052.18]
2 x Xeon® Platinum 8468 Processor 48C / 96T 2.1 GHz 105 MB Cache (350w) [+$13,830.80]
2 x Xeon® Platinum 8470 Processor 52C / 104T 2.0 GHz 105 MB Cache (350w) [+$17,942.80]
2 x Xeon® Platinum 8480+ Processor 56C / 112T 2.0 GHz 105 MB Cache (350w) [+$20,530.98]
2 x Xeon® Platinum 8458P Processor 44C / 88T 2.7 GHz 82.5 MB Cache (350w) [+$12,958.04]
2 x Xeon® Platinum 8468V Processor 48C / 96T 2.40 GHz 97.5 MB Cache (330W) [+$13,651.22]
2 x Xeon® Platinum 8460H Processor 40C / 80T 2.2 GHz 105 MB Cache (330W) [+$20,529.84]
2 x Intel® Xeon® Platinum 8468H Processor 48C / 96T 2.1 GHz 105 MB Cache (330W) [+$26,687.86]
2 x Intel® Xeon® Platinum 8490H Processor 60C / 120T 1.9 GHz 112.5 MB Cache (350W) [+$32,586.30]
2 x Intel® Xeon® CPU Max 9462 Processor 32C / 64T 2.7 GHz 75 MB Cache (350W) [+$15,326.20]
2 x Intel® Xeon® CPU Max 9460 Processor 40C / 80T 2.2 GHz 97.5 MB Cache (350W) [+$16,774.70]
2 x Intel® Xeon® CPU Max 9468 Processor 48C / 96T 2.1 GHz 105 MB Cache (350W) [+$1,315.72]
2 x Intel® Xeon® Platinum 8558 Processor 48C / 96T 2.1 GHz 260 MB Cache (330W) [+$8,913.14]
2 x Intel® Xeon® Gold 6538Y+ Processor 32C / 64T 2.2 GHz 60 MB Cache (225w) [+$6,021.42]
2 x Intel® Xeon® Platinum 8568Y+ Processor 32C / 64T 2.2 GHz 60 MB Cache (225w) [+$12,456.72]
2 x Intel® Xeon® Platinum 8570 Processor 48C / 96T 2.1 GHz 300 MB Cache (350w) [+$18,390.78]
2 x Intel® Xeon® Platinum 8580 Processor 60C / 120T 2.0 GHz 300 MB Cache (350w) [+$20,529.26]
2 x Intel® Xeon® Platinum 8592+ Processor 64C / 128T 1.9 GHz 320 MB Cache (350w) [+$22,236.16]
2 x Intel® Xeon® Platinum 8558P Processor 48C / 96T 2.7 GHz 260 MB Cache (350w) [+$12,958.04]
2 x Intel® Xeon® Platinum 8592V Processor 64C / 128T 2.0 GHz 320 MB Cache (330) [+$21,072.74]

Memory

16GB PC5-38400 4800 MHz DDR5 [+$2,208.00]
24GB PC5-38400 4800 MHz DDR5 [+$9,000.00]
32GB PC5-38400 4800 MHz DDR5 [+$3,456.00]
48GB PC5-38400 4800 MHz DDR5 [+$9,000.00]
64GB PC5-38400 4800 MHz DDR5 [+$6,256.00]
96GB PC5-38400 4800 MHz DDR5 [+$11,165.92]
128GB PC5-38400 4800 MHz DDR5 [+$23,232.00]

M.2 DRIVE

960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]
512GB Kioxia XG8 M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$125.00]
1.0TB Kioxia XG8 M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$209.00]
2.0TB Kioxia XG8 M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$395.00]
4.0TB Kioxia XG8 M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$759.00]
2TB SAS3 12.0Gb/s 7200RPM - 3.5" - Seagate Exos 7E10 Series (512e/4Kn) 12.0Gb/s SAS [+$522.00]

CONTROLLER CARD

GRAID SupremeRAID™ SR-1000 with Software Full Features - 32 NVMe drives - T1000 - PCIe 3.0 x16 PCI Express 3.0 x16 [+$2,584.00]

NETWORK ADAPTER

(Max Quantity: 2)

Broadcom NetXtreme 1-Gigabit Ethernet Network Adapter PCI Express 2.1 x1 RJ45 [+$74.39]
Broadcom NetXtreme 1-Gigabit Ethernet Network Adapter PCI Express 2.1 x4 RJ45 [+$95.88]
Broadcom NetXtreme 10-Gigabit Ethernet Network Adapter P210TP PCI Express 3.0 x8 RJ45 [+$284.67]
Broadcom NetXtreme 10-Gigabit Ethernet Network Adapter P210P PCI Express 3.0 x8 SFP+ [+$225.63]
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter P225P PCI Express 3.0 x8 SFP28 [+$384.38]
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter P425G PCIe 4.0 x16 SFP28 [+$543.51]
Broadcom NetXtreme 50-Gigabit Ethernet Network Adapter P150P PCI Express 3.0 x8 QSFP28 [+$399.98]
Broadcom NetXtreme 100-Gigabit Ethernet Network Adapter P2100G PCIe 4.0 x16 QSFP56 [+$1,013.95]
Broadcom NetXtreme 200-Gigabit Ethernet Network Adapter P1200G PCIe 4.0 x16 QSFP56 [+$911.64]
Intel ® 10-Gigabit Ethernet Network Adapter X710-T2L PCI Express 3.0 x8 RJ45 [+$224.71]
Intel ® 10-Gigabit Ethernet Network Adapter X710-T4L PCI Express 3.0 x8 RJ45 [+$484.93]
Intel ® 10-Gigabit Ethernet Converged Network Adapter X710-DA2 PCI Express 3.0 x8 SFP+ [+$209.34]
Intel ® 25-Gigabit Ethernet Network Adapter E810-XXVDA2 PCIe 4.0 x8 SFP28 [+$209.57]
Intel ® 100-Gigabit Ethernet Network Adapter E810-CQDA1 PCIe 4.0 x16 QSFP28 [+$384.26]
Nvidia ® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter Secure Boot PCIe 4.0 x8 SFP28 [+$483.11]
Nvidia ® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter Secure Boot - Crypto Enabled PCIe 4.0 x8 SFP28 [+$605.09]
Nvidia ® ConnectX®-6 Dx EN 100-Gigabit Ethernet Adapter PCIe 4.0 x16 QSFP56 [+$1,113.27]
Nvidia ® ConnectX®-6 Dx EN 200-Gigabit Ethernet Adapter PCIe 4.0 x16 QSFP56 [+$1,179.55]
Nvidia ® ConnectX®-6 100-Gigabit HDR100 InfiniBand Adapter PCIe 4.0 x16 QSFP56 [+$890.32]
Nvidia ® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter PCIe 4.0 x16 QSFP56 [+$1,113.39]
Nvidia ® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter 2 Ports PCIe 4.0 x16 QSFP56 [+$1,669.93]
Intel ® 10-Gigabit Ethernet Converged Network Adapte PCI Express 3.0 x8 SFP+ [+$374.93]
Intel ® 25-Gigabit Ethernet Network Adapter PCIe 4.0 x16 SFP28 [+$533.25]
Nvidia ® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter PCIe 4.0 x16 SFP28 [+$520.95]
Nvidia ® ConnectX®-7 200-Gigabit NDR200 InfiniBand Adapter PCIe 5.0 x16 OSFP [+$1,170.74]
Nvidia ® ConnectX®-7 400-Gigabit NDR400 InfiniBand Adapter PCIe 5.0 x16 OSFP [+$1,533.14]
Nvidia ® ConnectX®-7 400-Gigabit NDR400 InfiniBand Adapter PCIe 5.0 x16 OSFP [+$1,763.55]
Intel ® 25-Gigabit Ethernet Network Adapter E810-XXVDA4 - PCIe 4.0 x16 - 4x SFP28 PCIe 4.0 x16 SFP28 [+$533.25]
Intel ® 100-Gigabit Ethernet Network Adapter E810-CQDA1 - PCIe 4.0 x16 - 1x QSFP28 PCIe 4.0 x16 QSFP28 [+$384.26]

Trusted Platform Module

CTM010 - Trusted Platform Module - TPM 2.0 - SPI [+$99.00]

OPERATING SYSTEM

No Operating System
Microsoft Windows Server 2022 Standard (16-core) [+$799.00]
Microsoft Windows Server 2022 Standard (24-core) [+$1,239.00]
Microsoft Windows Server 2022 Datacenter (16-core) [+$4,899.00]
Microsoft Windows Server 2022 Datacenter (24-core) [+$7,451.00]
Red Hat® Enterprise Linux® 8 Server (Self Support) (1 Year) [+$389.00]
Red Hat® Enterprise Linux® 8 Server (Standard) (1 Year) [+$849.00]
Red Hat® Enterprise Linux® 8 Server (Premium) (1 Year) [+$1,489.00]
Red Hat® Enterprise Linux® 9 Server (Self Support) (1 Year) [+$409.00]
Red Hat® Enterprise Linux® 9 Server (Standard) (1 Year) [+$859.00]
Red Hat® Enterprise Linux® 9 Server (Premium) (1 Year) [+$1,489.00]
Rocky Linux 8 [+$49.00]
Rocky Linux 9 [+$49.00]
Ubuntu 24.04 LTS [+$49.00]

Software

Downgrade Kit - Microsoft Windows Server 2022 Standard to 2016 Standard - COA and DVD Media [+$50.00]
Downgrade Kit - Microsoft Windows Server 2022 Standard to 2019 Standard - COA and DVD Media [+$50.00]
1-Device Client Access License (CAL) for Microsoft Windows Server 2022 [+$40.00]
5-Device Client Access License (CAL) for Microsoft Windows Server 2022 [+$189.00]
1-User Client Access License (CAL) for Microsoft Windows Server 2022 [+$50.00]
5-User Client Access License (CAL) for Microsoft Windows Server 2022 [+$239.00]
Additional 2-core License for Microsoft Windows Server 2022 Standard [+$110.00]
Additional 4-core License for Microsoft Windows Server 2022 Standard [+$220.00]
Additional 16-core License for Microsoft Windows Server 2022 Standard [+$880.00]
Downgrade Kit - Microsoft Windows Server 2022 Datacenter to 2016 Datacenter - COA and DVD Media [+$50.00]
Downgrade Kit - Microsoft Windows Server 2022 Datacenter to 2019 Datacenter - COA and DVD Media [+$50.00]
Additional 2-core License for Microsoft Windows Server 2022 Datacenter [+$638.00]
Additional 4-core License for Microsoft Windows Server 2022 Datacenter [+$1,276.00]
Additional 16-core License for Microsoft Windows Server 2022 Datacenter [+$5,104.00]

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00

Qty:

We use cookies to improve your experience. Customize your preferences or accept all.

Functional (required)
Analytics
Marketing

Information

Sitemap
Contact us

Customer service

Search
Blog
Compare products list

My account

My account
Orders
Addresses
Shopping cart

Follow us

Newsletter

Wait...

Copyright © 2026 RackMountNTS. All rights reserved.

Powered by nopCommerce

Request a Quote

Name

E-mail Address

Contact Number

Industry

Job Title

Company

Company Address

Enquiry
