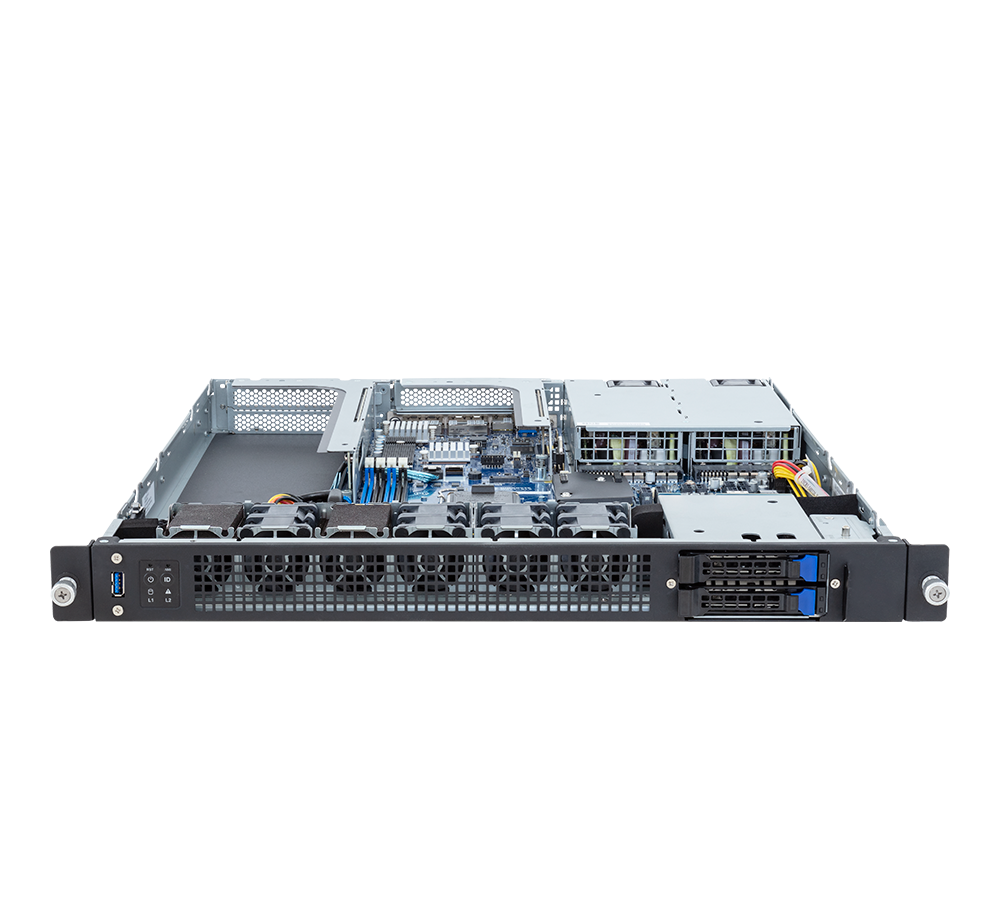

| Dimensions | 1U (W438 x H43.5 x D520 mm) |
Motherboard
| MX14-BL1 |
| CPU | Intel Xeon 6300-Series Processors
Intel Xeon E-2400 Processors
Intel Pentium Gold G7400/G7400T Processor
Single processor, TDP up to 95W |
Socket
| 1 x LGA 1700 |
| Chipset | Intel C262 |
| Memory | Dual-Channel DDR5 ECC UDIMM, 4 x DIMMs
Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s
(2DPC/2R) |
LAN
| 2 x 1Gb/s LAN (2 x Intel I210-AT), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x Mini-DP
|
Storage
| Front hot-swap:
2 x 2.5" SATA
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4
SATA supported only.
|
RAID
| Intel SATA RAID 0/1
Support optional RAID add-in cards
|
PCIe Expansion
Slots
| 1 x FHFL PCIe Gen5 x16 or 2 x FHFL PCIe Gen5 x8
1 x FHHL PCIe Gen4 x4
|
I/O Ports
| Front:
1 x USB 3.2 Gen1
Rear:
2 x USB 3.2 Gen1, 1 x Mini-DP, 2 x RJ45, 1 x MLAN
|
Backplane Board
| SATA 6Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| 1+1 550W 80 PLUS Platinum redundant power supplies
AC Input: 100-240V
|
| System Management | ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface |
| System Fans | 2 x 40x40x56mm (29,700rpm)
2 x 40x40x56mm (32,000rpm) |
| Operating Properties | Operating: 10°C~35°C, 8%~80% (non-condensing)
Non-operating: -40°C~60°C, 20%~95% (non-condensing) |
| Packaging Content | 1 x E133-X10-AAA1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable |
