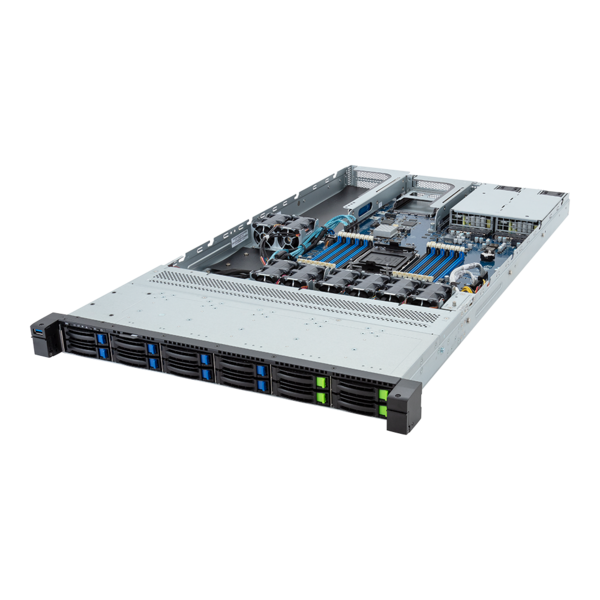

NTS Elite Command 1U GPU Rack Server Intel Xeon, Gen5 Single-GPU & NVMe Storage

Compact 1U edge server with Intel Xeon performance, single-GPU support, DDR5 memory, and high-speed NVMe storage—ideal for edge AI, inference, and real-time processing

Part#: CMDI011U12

Key Applications

AI Inference Networking
Visual Computing Hybrid/Private Cloud Server

Key Features

Supports 1 x Dual slot Gen5 GPU
Single 5th/4th Gen Intel^® Xeon^® Scalable Processors
Single Intel^® Xeon^® CPU Max Series
8-Channel DDR5 RDIMM, 16 x DIMMs
Dual ROM Architecture
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
8 x 2.5" SATA/SAS-4 hot-swappable bays
1 x M.2 slot with PCIe Gen3 x4 interface
1 x FHFL PCIe Gen5 x16 slot for GPUs
1 x FHFL PCIe Gen5 x16 slot
1 x FHHL PCIe Gen5 x16 slot
1 x OCP 3.0 Gen5 x16 slot
1+1 1300W 80 PLUS Platinum redundant power supplies

Configure & Buy Specifications

Dimensions	1U (W438 x H43.5 x D815 mm)
Motherboard	MSG3-GU0
CPU	5th/4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Single processor, TDP up to 350W
Socket	1 x LGA 4677 (Socket E)
Chipset	Intel® C741 Chipset
Memory	16 x DIMM slots, 8-Channel DDR5 memory RDIMM up to 96GB; 3DS RDIMM up to 256GB Memory speed: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
LAN	1 x 10/100/1000 Mbps Management LAN
Video	ASPEED® AST2600 Integrated 2D Graphic Adapter
Storage	4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays 8 x 2.5" SATA/SAS-4 hot-swappable bays *SAS card is required for SAS devices support 1 x M.2 slot (M-key, PCIe Gen3 x4, supports 2280/22110 cards)
RAID	Intel® SATA RAID 0/1/10/5
Expansion Slots	1 x FHFL PCIe Gen5 x16 slot for GPUs 1 x FHFL PCIe Gen5 x16 slot 1 x FHHL PCIe Gen5 x16 slot 1 x OCP 3.0 Gen5 x16 slot - Supporte NCSI function
Backplane Board	Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM	1 x TPM header with SPI interface (Optional TPM2.0 kit: CTM010)
I/O Ports	Front: 1 x USB 3.2 Gen1 Rear: 2 x USB 3.2 Gen1, 1 x Mini-DP, 1 x MLAN Internal: 1 x TPM header, 1 x VROC connector
Power Supply	1+1 1300W 80 PLUS Platinum redundant power supplies AC Input: 100-240V
System Management	ASPEED® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X)
OS Compatibility	Windows Server 2019 / 2022 RHEL 8.6 / 8.7 / 8.8 / 8.9 /8.10 / 9.0 / 9.1 / 9.2 / 9.3 / 9.4 SLES 15 SP4 / SP5 / SP6 Ubuntu 22.04 / 22.04.1 / 22.04.2 / 22.04.3 / 22.04.4 / 24.04 LTS VMware ESXi 7.0 Update 3o / 8.0 Update 1, Update 2, Update 3 Citrix Hypervisor 8.2 LTSR CU1
System Fans	8 x 40x40x56mm (32,000rpm)
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)

Barebone

1U Xeon Scalable - 4x Hybrid + 8x 2.5" SAS/SATA - 1 GPU - 1300W Redundant 1+1Delay

Processor

Memory

16GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$1,200.00]
32GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$3,424.00]
64GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$7,448.00]
96GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$14,960.00]
128GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$7,840.00]

M.2 DRIVE

HARD DRIVE

(Max Quantity: 12)

GPU

NVIDIA ® H100 NVL GPU Computing Accelerator - 94GB HBM3 - PCIe 5.0 x16 - Passive Cooling Nvidia H100 NVL [+$25,581.60]

CONTROLLER CARD

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]
Broadcom HBA 9500-16i SAS3/SATA 16-Port Tri-Mode Host Bus Adapter NA PCI Express 4.0 x8 [+$497.00]
Broadcom MegaRAID 9560-16i SAS3/SATA 16-Port RAID - 8GB - PCIe 4.0 x8 8GB Cache PCI Express 4.0 x8 [+$987.31]

Battery Backup

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 3)

Trusted Platform Module

CTM010 - Trusted Platform Module - TPM 2.0 - SPI [+$99.00]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

I O Modules Networking

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
