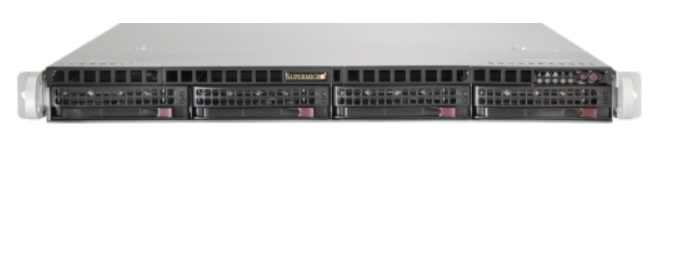

NTS Elite Command 1U High-Performance Server with Single CPU and 4 Drive Bays

1U Mainstream with 4 hot-swap 3.5" NVMe/SAS/SATA bays, 1 PCIe 4.0 x16 slot and single PSU

Part#: CMDI001U4-V2

Key Applications

Small Business Web/Hosting Application
Email/Firewall/Print Server

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
1 PCIe 4.0 x16 (FHHL) slot
Intel® Ethernet Controller i350 2x 1GbE RJ45
4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
Single Platinum 500W Power Supply

Configure & Buy Specifications

Form Factor	1U Rackmount Enclosure: 437 x 43 x 507mm (17.2" x 1.7" x 19.98") Package: 609.6 x 215.9 x 749.3mm (24" x 8.5" x 29.5")
Processor	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 36C/72T; Up to 54MB Cache
GPU	Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: T400
System Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration	Default: Total 4 bays 4 front hot-swap 3.5" PCIe 4.0 NVMe/SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) M.2: 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID) Peripheral Bays: 2 2.5" bays (optional)
Expansion Slots	Default 1 PCIe 4.0 x16 FHHL slot
On-Board Devices	SATA: SATA (6Gbps) ; RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Chipset: Intel® C621A Network Connectivity: 2 RJ45 1GbE with Intel® I350
Input / Output	LAN: 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) USB: 4 USB 2.0 ports(header) 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 ports(Header) 1 USB 3.2 Gen1 Type-A port(Header) Video: 1 VGA port Serial: 1 COM port(Rear) 1 COM port(Header) DOM: 2 SuperDOM (Disk on Module) portswith built-in power TPM: 1 TPM header
System Cooling	Fans: Up to 4 middle cooling PWM 40x40x28mm Fan(s) Up to 2 AOC cooling Fan(s) (optional) Air Shroud: 1 Air Shroud
Power Supply	1x 500W Platinum Level (93%) power supply
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Color: Black
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing

Barebone

510P-M - 1U - 4x 3.5" NVMe/SATA - Dual 1-Gigabit Ethernet - 500W

Processor

Memory

8GB PC4-25600 3200MHz DDR4 [+$68.54]
16GB PC4-25600 3200MHz DDR4 [+$121.96]
32GB PC4-25600 3200MHz DDR4 [+$226.12]
64GB PC4-25600 3200MHz DDR4 [+$554.92]
128GB PC4-25600 3200MHz DDR4 [+$2,077.60]

M.2 DRIVE

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 4)

U.2/U.3 NVMe Drive

(Max Quantity: 4)

CONTROLLER CARD

Supermicro AOC-S3008L-L8e SAS3/SATA 8-Port Host Bus Adapter - PCIe 3.0 x8 PCIe 3.0 x8 [+$220.33]
Supermicro AOC-S3808L-L8iT SAS3/SATA 8-Port Host Bus Adapter - PCIe 4.0 x8 PCIe 4.0 x8 [+$470.00]
Supermicro AOC-S3908L-H8iR-16DD SAS3/SATA 8-Port RAID Controller - 8GB Cache - PCIe 4.0 x8 PCIe 4.0 x8 [+$830.00]

Battery Backup

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

NETWORK ADAPTER

Trusted Platform Module

Supermicro AOM-TPM-9670V-S - Trusted Platform Module - TPM 2.0 - X11 X12 - Server Provisioned - Vertical [+$40.88]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

VROC

Intel® Virtual RAID on CPU (VROC) - Intel Only Module - RAID 0,1,10,5 [+$49.00]
Intel® Virtual RAID on CPU (VROC) - Standard Module - RAID 0,1,10 [+$149.00]
Intel® Virtual RAID on CPU (VROC) - Premium Module - RAID 0,1,10,5 [+$319.00]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]
