NTS Elite Command 1U Enterprise Server with Single CPU and 8 Drive Bays

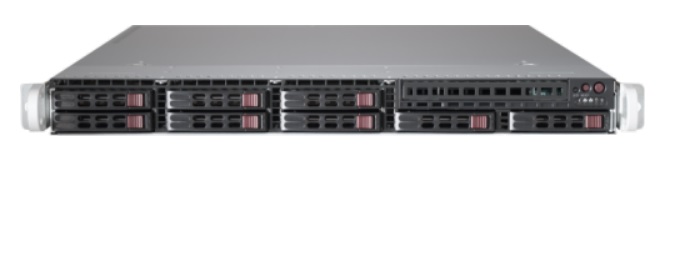

Picture of NTS Elite Command 1U Enterprise Server with Single CPU and 8 Drive Bays

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

NTS Elite Command 1U Enterprise Server with Single CPU and 8 Drive Bays

1U UP mainstream with 8 hot-swap 2.5" drive bays

Part#: CMDI001U8

Key Applications

Web/Hosting Application Database Processing and Storage
Encoding Decoding

Key Features

Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL);
1 Dedicated Internal HBA slot
Intel® Ethernet Controller i210 2x 1GbE RJ45
Default single Platinum 400W Power Supply; Optional redundant power by adding 1x Power Supply Module

Configure & Buy Specifications

Form Factor	1U Rackmount Enclosure: 437 x 43 x 507mm (17.2" x 1.7" x 19.98") Package: 609.6 x 215.9 x 749.3mm (24" x 8.5" x 29.5")
Processor	Single Socket H5 (LGA-1200) Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors Up to 8C/16T; Up to 16MB Cache
GPU	Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: T400, T1000 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" SATA drive bays M.2: 1 M.2 PCIe 3.0 x4 SATA slot (M-key 2280/22110
Expansion Slots	Default 1 PCIe 4.0 x8 FHHL slot 1 PCIe 4.0 x8 LP slot Option A 1 PCIe 4.0 x16 FHHL slot
On-Board Devices	SATA: SATA (6Gbps) ; RAID 0/1/5/10 support Chipset: Intel® C256 Network Connectivity: 2 RJ45 1GbE with Intel® I210
Input / Output	LAN: 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) USB: 4 USB 2.0 ports(header) 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 ports(Header) 1 USB 3.2 Gen1 Type-A port(Header) Video: 1 VGA port Serial: 1 COM port(Rear) 1 COM port(Header) DOM: 2 SuperDOM (Disk on Module) portswith built-in power TPM: 1 TPM header
System Cooling	Fans: Up to 4 middle cooling PWM 40x40x28mm Fan(s) Up to 2 AOC cooling Fan(s) (optional) Air Shroud: 1 Air Shroud
Power Supply	1x 400W Redundant Platinum Level (94%) power supply
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 6 + 2 + 1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weigh	Weight: Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Color: Black
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Barebone

1U - 8x 2.5" SATA (2x 2.5" NVMe hybrid) - 1x M.2 - Dual 1GbE - 400W

Processor

1 x Quad-Core Intel® Xeon® E-2314 4C/4T 2.8GHz 8MB Cache (65W) [+$197.79]
1 x Quad-Core Intel® Xeon® E-2334 4C/8T 3.4GHz 8MB Cache (65W) [+$270.75]
1 x Six-Core Intel® Xeon® E-2336 6C/12T 2.9GHz 12MB Cache (65W) [+$307.51]
1 x Eight-Core Intel® Xeon® E-2378 8C/16T 2.6GHz 8MB Cache (65W) [+$389.63]
1 x Quad-Core Intel® Xeon® E-2324G 4C/4T 3.1GHz 8MB Cache (65W) [+$85.00]
1 x Quad-Core Intel® Xeon® E-2374G 4C/8T 3.7GHz 12MB Cache (80W) [+$360.06]
1 x Six-Core Intel® Xeon® E-2356G 6C/12T 3.2GHz 12MB Cache (80W) [+$336.48]
1 x Six-Core Intel® Xeon® E-2386G 6C/12T 3.5GHz 16MB Cache (95W) [+$486.09]
1 x Eight-Core Intel® Xeon® E-2378G 8C/16T 2.8GHz 16MB Cache (80W) [+$535.15]
1 x Eight-Core Intel® Xeon® E-2388G 8C/16T 3.2GHz 16MB Cache (95W) [+$581.46]

Memory

16GB PC4-25600 3200MHz DDR4 [+$121.96]
32GB PC4-25600 3200MHz DDR4 [+$226.12]

M.2 DRIVE

960GB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$231.03]
1.92TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$375.89]
3.84TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$631.96]
7.68TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$1,208.86]
15.36TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$2,258.55]
800GB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$266.10]
1.6TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$433.05]
3.2TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$731.95]
6.4TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$1,196.62]
12.8TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$2,296.10]

HARD DRIVE

(Max Quantity: 8)

240GB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$98.77]
480GB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$139.38]
960GB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$208.94]
1.92TB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$359.01]
3.84TB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$676.45]
7.68TB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$1,184.36]
480GB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$160.25]
960GB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$243.60]
1.92TB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$434.11]
3.84TB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$809.30]
240GB Solidigm D3-S4520 6.0Gb/s Serial ATA [+$128.55]
480GB Solidigm D3-S4520 6.0Gb/s Serial ATA [+$162.55]
960GB Solidigm D3-S4520 6.0Gb/s Serial ATA [+$215.64]
1.92TB Solidigm D3-S4520 6.0Gb/s Serial ATA [+$304.21]
3.84TB Solidigm D3-S4520 6.0Gb/s Serial ATA [+$540.57]
7.68TB Solidigm D3-S4520 6.0Gb/s Serial ATA [+$1,083.18]
480GB Solidigm D3-S4620 6.0Gb/s Serial ATA [+$200.76]
960GB Solidigm D3-S4620 6.0Gb/s Serial ATA [+$259.18]
1.92TB Solidigm D3-S4620 6.0Gb/s Serial ATA [+$457.75]
3.84TB Solidigm D3-S4620 6.0Gb/s Serial ATA [+$801.74]
1TB SATA 6.0Gb/s 7200RPM - 2.5" - Seagate Exos 7E2000 Series (512e) 6.0Gb/s Serial ATA [+$150.36]

CONTROLLER CARD

Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$373.59]
Broadcom MegaRAID 9540-8i SAS3/SATA 8-Port RAID Controller - PCIe 4.0 x8 NA PCIe 4.0 x8 [+$395.58]
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID Controller - 4GB Cache 4GB Cache PCIe 4.0 x8 [+$822.68]
Broadcom MegaRAID 9580-8i8e SAS3/SATA 8+8-Port RAID Controller - 8GB Cache 8GB Cache PCIe 4.0 x8 [+$965.44]

Battery Backup

05-50039-00 CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket) [+$289.00]

NETWORK ADAPTER

(Max Quantity: 2)

Broadcom NetXtreme 1-Gigabit Ethernet Network Adapter PCI Express 2.1 x1 RJ45 [+$74.39]
Broadcom NetXtreme 1-Gigabit Ethernet Network Adapter PCI Express 2.1 x4 RJ45 [+$95.88]
Broadcom NetXtreme 10-Gigabit Ethernet Network Adapter P210TP PCI Express 3.0 x8 RJ45 [+$284.67]
Broadcom NetXtreme 10-Gigabit Ethernet Network Adapter P210P PCI Express 3.0 x8 SFP+ [+$225.63]
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter P225P PCI Express 3.0 x8 SFP28 [+$384.38]
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter P425G PCIe 4.0 x16 SFP28 [+$543.51]
Broadcom NetXtreme 50-Gigabit Ethernet Network Adapter P150P PCI Express 3.0 x8 QSFP28 [+$399.98]
Broadcom NetXtreme 100-Gigabit Ethernet Network Adapter P2100G PCIe 4.0 x16 QSFP56 [+$1,013.95]
Broadcom NetXtreme 200-Gigabit Ethernet Network Adapter P1200G PCIe 4.0 x16 QSFP56 [+$911.64]
Intel ® 10-Gigabit Ethernet Converged Network Adapter X550-T2 PCI Express 3.0 x4 RJ45 [+$220.00]
Intel ® 10-Gigabit Ethernet Network Adapter X710-T2L PCI Express 3.0 x8 RJ45 [+$224.71]
Intel ® 10-Gigabit Ethernet Network Adapter X710-T4L PCI Express 3.0 x8 RJ45 [+$484.93]
Intel ® 10-Gigabit Ethernet Converged Network Adapter X710-DA2 PCI Express 3.0 x8 SFP+ [+$209.34]
Intel ® 25-Gigabit Ethernet Network Adapter E810-XXVDA2 PCIe 4.0 x8 SFP28 [+$209.57]
Intel ® 100-Gigabit Ethernet Network Adapter E810-CQDA1 PCIe 4.0 x16 QSFP28 [+$384.26]
Nvidia ® ConnectX®-6 Lx EN 25-Gigabit Ethernet Adapter PCIe 4.0 x8 SFP28 [+$330.43]
Nvidia ® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter Secure Boot PCIe 4.0 x8 SFP28 [+$483.11]
Nvidia ® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter Secure Boot - Crypto Enabled PCIe 4.0 x8 SFP28 [+$605.09]
Nvidia ® ConnectX®-6 Dx EN 100-Gigabit Ethernet Adapter PCIe 4.0 x16 QSFP56 [+$1,113.27]
Nvidia ® ConnectX®-6 Dx EN 200-Gigabit Ethernet Adapter PCIe 4.0 x16 QSFP56 [+$1,179.55]
Nvidia ® ConnectX®-6 100-Gigabit HDR100 InfiniBand Adapter PCIe 4.0 x16 QSFP56 [+$741.98]
Nvidia ® ConnectX®-6 100-Gigabit HDR100 InfiniBand Adapter PCIe 4.0 x16 QSFP56 [+$890.32]
Nvidia ® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter PCIe 4.0 x16 QSFP56 [+$1,113.39]
Nvidia ® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter 2 Ports PCIe 4.0 x16 QSFP56 [+$1,669.93]
Intel ® 25-Gigabit Ethernet Network Adapter PCIe 4.0 x16 SFP28 [+$533.25]
Nvidia ® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter PCIe 4.0 x16 SFP28 [+$520.95]
Mellanox ConnectX®-5 EN 100-Gigabit Ethernet Adapter PCI Express 3.0 x16 QSFP28 [+$1,291.71]
Mellanox ConnectX®-5 EN 100-Gigabit Ethernet Adapte PCI Express 3.0 x16 QSFP28 [+$980.77]
NVIDIA ® ConnectX®-5 100-Gigabit EDR InfiniBand Adapter PCI Express 3.0 x16 QSFP28 [+$980.78]
NVIDIA ConnectX®-6 100-Gigabit HDR100 InfiniBand Adapter [+$741.88]
Intel ® 25-Gigabit Ethernet Network Adapter E810-XXVDA4 - PCIe 4.0 x16 - 4x SFP28 PCIe 4.0 x16 SFP28 [+$533.25]
Intel ® 100-Gigabit Ethernet Network Adapter E810-CQDA1 - PCIe 4.0 x16 - 1x QSFP28 PCIe 4.0 x16 QSFP28 [+$384.26]

Trusted Platform Module

Supermicro AOM-TPM-9670V-S - Trusted Platform Module - TPM 2.0 - X11 X12 - Server Provisioned - Vertical [+$40.88]

Power Cables

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

OPERATING SYSTEM

No Operating System
Microsoft Windows Server 2022 Standard (16-core) [+$799.00]
Microsoft Windows Server 2022 Standard (24-core) [+$1,239.00]
Microsoft Windows Server 2022 Datacenter (16-core) [+$4,899.00]
Microsoft Windows Server 2022 Datacenter (24-core) [+$7,451.00]
Red Hat® Enterprise Linux® 8 Server (Self Support) (1 Year) [+$389.00]
Red Hat® Enterprise Linux® 8 Server (Standard) (1 Year) [+$849.00]
Red Hat® Enterprise Linux® 8 Server (Premium) (1 Year) [+$1,489.00]
Red Hat® Enterprise Linux® 9 Server (Self Support) (1 Year) [+$409.00]
Red Hat® Enterprise Linux® 9 Server (Standard) (1 Year) [+$859.00]
Red Hat® Enterprise Linux® 9 Server (Premium) (1 Year) [+$1,489.00]
Rocky Linux 8 [+$49.00]
Rocky Linux 9 [+$49.00]
Ubuntu 24.04 LTS [+$49.00]

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Downgrade Kit - Microsoft Windows Server 2022 Standard to 2016 Standard - COA and DVD Media [+$50.00]
Downgrade Kit - Microsoft Windows Server 2022 Standard to 2019 Standard - COA and DVD Media [+$50.00]
1-Device Client Access License (CAL) for Microsoft Windows Server 2022 [+$40.00]
5-Device Client Access License (CAL) for Microsoft Windows Server 2022 [+$189.00]
1-User Client Access License (CAL) for Microsoft Windows Server 2022 [+$50.00]
5-User Client Access License (CAL) for Microsoft Windows Server 2022 [+$239.00]
Additional 2-core License for Microsoft Windows Server 2022 Standard [+$110.00]
Additional 4-core License for Microsoft Windows Server 2022 Standard [+$220.00]
Additional 16-core License for Microsoft Windows Server 2022 Standard [+$880.00]
Downgrade Kit - Microsoft Windows Server 2022 Datacenter to 2016 Datacenter - COA and DVD Media [+$50.00]
Downgrade Kit - Microsoft Windows Server 2022 Datacenter to 2019 Datacenter - COA and DVD Media [+$50.00]
Additional 2-core License for Microsoft Windows Server 2022 Datacenter [+$638.00]
Additional 4-core License for Microsoft Windows Server 2022 Datacenter [+$1,276.00]
Additional 16-core License for Microsoft Windows Server 2022 Datacenter [+$5,104.00]

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00

Qty:

We use cookies to improve your experience. Customize your preferences or accept all.

Functional (required)
Analytics
Marketing

Information

Sitemap
Contact us

Customer service

Search
Blog
Compare products list

My account

My account
Orders
Addresses
Shopping cart

Follow us

Newsletter

Wait...

Copyright © 2026 RackMountNTS. All rights reserved.

Powered by nopCommerce

Request a Quote

Name

E-mail Address

Contact Number

Industry

Job Title

Company

Company Address

Enquiry
