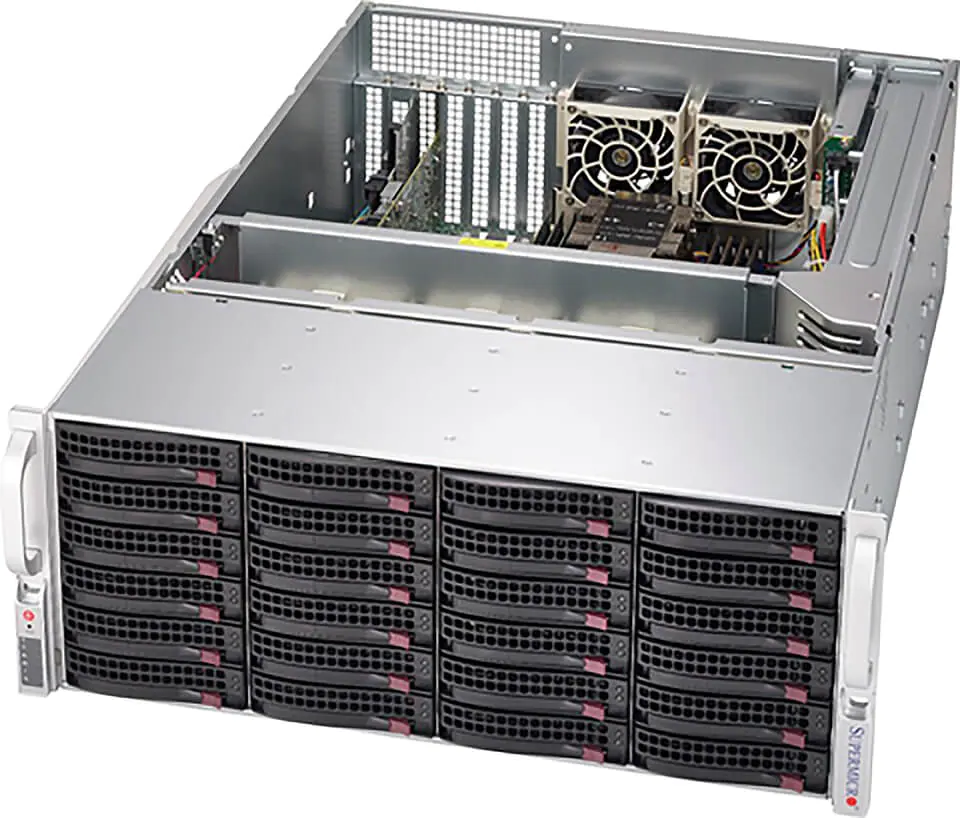

NTS Elite Vault storage 4U Enterprise Storage with 26 Drive Capacity

4U front-loading storage server with 24 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
Part#: VLTI004U26

Key Applications

Enterprise ServerDatabase Processing & Storage
iSCSI SANCorporate Database
HPC, Data CenterAppliance Optimized Storage Building Blocks

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  4. 24 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
  5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1200W Redundant Power Supplies Titanium Level (96%)
  7. HBA Controller support via Broadcom® 3808



Configure & Buy Specifications



   Form Factor4U
Enclosure: 437 x 178 x 660mm (17.2" x 7" x 26")
Package: 871 x 673 x 343mm (34.3" x 26.5" x 13.5")
Processor
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Up to 38C/76T; Up to 57MB Cache per CPU
System Memory   Slot Count: 16 DIMM slots
   Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
   Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration
Default: Total 26 bays
24 front hot-swap 3.5" SAS/SATA drive bays
2 rear hot-swap 2.5" SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables)
M.2: 1 M.2 NVMe slot (M-key)
Expansion Slots Default
3 PCIe 4.0 x16 LP slots
1 PCIe 4.0 x16 LP slot
  On-Board Devices Chipset: Intel® C621A
Network Connectivity: 2 RJ45 10GBASE-T with Intel® X550
   Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 4 USB 3.0 ports(rear)
Video: 1 VGA port
DOM: 2 SuperDOM (Disk on Module) ports
  System Cooling
Fans: Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud: 1 Air Shroud
  Power Supply
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
System BIOS
BIOS Type: AMI 128MB SPI Flash EEPROM
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
PC Health Monitoring
CPU: Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and Weight
Weight: Gross Weight: 118 lbs (53.52 kg)
Net Weight: 86 lbs (39 kg)
Available Color: Black
Operating Environment RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% ()
Non-operating Relative Humidity: 5% to 95% ()
