NTS Elite Apex | GPU Solution | APXI004U8G

4U GPU Server - 24x 2.5" Hot-swap - 1x AIOM - 2700W (2+2) Redundant

2 x Intel® Xeon® Silver 4410Y Processor 12C / 24T 2.0 GHz 30 MB Cache (150W) [+$1,080.88]
2 x Intel® Xeon® Silver 4416+ Processor 20C / 40T 2.0 GHz 37.5 MB Cache (165W) [+$2,256.60]
2 x Intel® Xeon® Gold 5418Y Processor 24C / 48T 2.0 GHz 45 MB Cache (185W) [+$2,845.20]
2 x Intel® Xeon® Gold 5420+ Processor 28C / 56T 2.0 GHz 52.5 MB Cache (205W) [+$3,545.70]
2 x Intel® Xeon® Gold 6430 Processor 32C / 64T 2.1 GHz 60 MB Cache (270W) [+$4,083.04]
2 x Intel® Xeon® Gold 6438Y+ Processor 32C / 64T 2.0 GHz 60 MB Cache (205W) [+$6,022.00]
2 x Intel® Xeon® Platinum 8452Y Processor 36C / 72T 2.0 GHz 67.5 MB Cache (300W) [+$7,659.90]
2 x Intel® Xeon® Gold 5415+ Processor 8C / 16T 2.9 GHz 22.5 MB Cache (150W) [+$2,044.78]
2 x Intel® Xeon® Gold 6434 Processor 8C / 16T 3.7 GHz 22.5 MB Cache (195W) [+$4,999.76]
2 x Intel® Xeon® Gold 6426Y Processor 16C / 32T 2.5 GHz 37.5 MB Cache (185W) [+$2,911.98]
2 x Intel® Xeon® Gold 6444Y Processor 16C / 32T 3.6 GHz 45 MB Cache (270W) [+$6,946.04]
2 x Intel® Xeon® Gold 6442Y Processor 24C / 48T 2.6 GHz 60 MB Cache (225W) [+$5,520.68]
2 x Intel® Xeon® Gold 6448Y Processor 32C / 64T 2.1 GHz 60 MB Cache (225W) [+$6,870.32]
2 x Intel® Xeon® Platinum 8462Y+ Processor 32C / 64T 2.8 GHz 60 MB Cache (300W) [+$11,396.74]
2 x Intel® Xeon® Platinum 8460Y+ Processor 40C / 80T 2.0 GHz 105 MB Cache (300W) [+$10,654.90]
2 x Intel® Xeon® Gold 5418N Processor 24C / 48T 1.8 GHz 45 MB Cache (165W) [+$3,192.96]
2 x Intel® Xeon® Gold 6428N Processor 32C / 64T 1.8 GHz 60 MB Cache (185W) [+$6,138.00]
2 x Intel® Xeon® Gold 6438N Processor 32C / 64T 2.0 GHz 60 MB Cache (205W) [+$6,427.18]
2 x Intel® Xeon® Platinum 8470N Processor 52C / 104T 1.7 GHz 97.5 MB Cache (300W) [+$18,250.42]
2 x Intel® Xeon® Gold 5416S Processor 16C / 32T 2.0 GHz 30 MB Cache (150W) [+$1,811.00]
2 x Intel® Xeon® Gold 6454S Processor 32C / 64T 2.20 GHz 60 MB Cache (270W) [+$6,052.18]
2 x Intel® Xeon® Gold 6438M Processor 32C / 64T 2.2 GHz 60 MB Cache (205W) [+$6,275.58]
2 x Intel® Xeon® Gold 6434H Processor 8C / 16T 3.7 GHz 22.5 MB Cache (195W) [+$5,887.80]
2 x Intel® Xeon® Gold 6416H Processor 18C / 36T 2.2 GHz 45 MB Cache (165W) [+$2,769.32]
2 x Intel® Xeon® Gold 6418H Processor 24C / 48T 2.1 GHz 60 MB Cache (185W) [+$3,960.88]
2 x Intel® Xeon® Gold 6448H Processor 32C / 64T 2.4 GHz 60 MB Cache (250W) [+$7,013.72]
2 x Intel® Xeon® Platinum 8444H Processor 16C / 32T 2.9 GHz 45 MB Cache (270W) [+$8,117.98]
2 x Intel® Xeon® Platinum 8450H Processor 28C / 56T 2.0 GHz 75 MB Cache (250W) [+$9,026.52]
2 x Intel® Xeon® Platinum 8454H Processor 32C / 64T 2.1 GHz 82.5 MB Cache (270W) [+$12,537.60]
2 x Intel® Xeon® Silver 4514Y Processor 16C / 32T 2.0 GHz 30 MB Cache (150W) [+$1,497.20]
2 x Intel® Xeon® Gold 5520+ Processor 28C / 56T 2.2 GHz 52.5 MB Cache (205W) [+$3,146.10]
2 x Intel® Xeon® Gold 6530 Processor 32C / 64T 2.1 GHz 160 MB Cache (270W) [+$4,081.30]
2 x Intel® Xeon® Gold 5515+ Processor 8C / 16T 3.2 GHz 22.5 MB Cache (165W) [+$2,108.28]
2 x Intel® Xeon® Gold 6526Y Processor 16C / 32T 2.8 GHz 37.5 MB Cache (195W) [+$2,910.18]
2 x Intel® Xeon® Gold 6534 Processor 8C / 16T 3.9 GHz 22.5 MB Cache (195W) [+$5,400.00]
2 x Intel® Xeon® Gold 6542Y Processor 24C / 48T 2.9 GHz 60 MB Cache (250W) [+$5,516.90]
2 x Intel® Xeon® Gold 6544Y Processor 16C / 32T 3.6 GHz 45 MB Cache (270W) [+$6,944.32]
2 x Intel® Xeon® Gold 6548Y+ Processor 32C / 64T 2.5 GHz 60 MB Cache (250W) [+$7,145.30]
2 x Intel® Xeon® Platinum 8562Y+ Processor 32C / 64T 2.8 GHz 60 MB Cache (300W) [+$11,396.74]
2 x Intel® Xeon® Gold 6538N Processor 32C / 64T 2.1 GHz 60 MB Cache (205W) [+$6,425.44]
2 x Intel® Xeon® Gold 6548N Processor 32C / 64T 2.8 GHz 60 MB Cache (250W) [+$7,428.24]
2 x Intel® Xeon® Gold 6554S Processor 36C / 72T 2.2 GHz 180 MB Cache (270W) [+$6,052.18]
2 x Xeon® Platinum 8468 Processor 48C / 96T 2.1 GHz 105 MB Cache (350w) [+$13,830.80]
2 x Xeon® Platinum 8470 Processor 52C / 104T 2.0 GHz 105 MB Cache (350w) [+$17,942.80]
2 x Xeon® Platinum 8480+ Processor 56C / 112T 2.0 GHz 105 MB Cache (350w) [+$20,530.98]
2 x Xeon® Platinum 8458P Processor 44C / 88T 2.7 GHz 82.5 MB Cache (350w) [+$12,958.04]
2 x Xeon® Platinum 8468V Processor 48C / 96T 2.40 GHz 97.5 MB Cache (330W) [+$13,651.22]
2 x Xeon® Platinum 8460H Processor 40C / 80T 2.2 GHz 105 MB Cache (330W) [+$20,529.84]
2 x Intel® Xeon® Platinum 8468H Processor 48C / 96T 2.1 GHz 105 MB Cache (330W) [+$26,687.86]
2 x Intel® Xeon® Platinum 8490H Processor 60C / 120T 1.9 GHz 112.5 MB Cache (350W) [+$32,586.30]
2 x Intel® Xeon® CPU Max 9462 Processor 32C / 64T 2.7 GHz 75 MB Cache (350W) [+$15,326.20]
2 x Intel® Xeon® CPU Max 9460 Processor 40C / 80T 2.2 GHz 97.5 MB Cache (350W) [+$16,774.70]
2 x Intel® Xeon® CPU Max 9468 Processor 48C / 96T 2.1 GHz 105 MB Cache (350W) [+$1,315.72]
2 x Intel® Xeon® Platinum 8558 Processor 48C / 96T 2.1 GHz 260 MB Cache (330W) [+$8,913.14]
2 x Intel® Xeon® Gold 6538Y+ Processor 32C / 64T 2.2 GHz 60 MB Cache (225w) [+$6,021.42]
2 x Intel® Xeon® Platinum 8568Y+ Processor 32C / 64T 2.2 GHz 60 MB Cache (225w) [+$12,456.72]
2 x Intel® Xeon® Platinum 8570 Processor 48C / 96T 2.1 GHz 300 MB Cache (350w) [+$18,390.78]
2 x Intel® Xeon® Platinum 8580 Processor 60C / 120T 2.0 GHz 300 MB Cache (350w) [+$20,529.26]
2 x Intel® Xeon® Platinum 8592+ Processor 64C / 128T 1.9 GHz 320 MB Cache (350w) [+$22,236.16]
2 x Intel® Xeon® Platinum 8558P Processor 48C / 96T 2.7 GHz 260 MB Cache (350w) [+$12,958.04]
2 x Intel® Xeon® Platinum 8592V Processor 64C / 128T 2.0 GHz 320 MB Cache (330) [+$21,072.74]

16GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$600.00]
32GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$1,712.00]
64GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$3,724.00]
96GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$7,480.00]
128GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$3,920.00]

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

(Max Quantity: 24)

(Max Quantity: 10)

NVIDIA ® A10 GPU Computing Accelerator - 24GB GDDR6 - PCIe 4.0 x16 - Passive Cooler (w/o CEC) NVIDIA - Ampere based GPUs [+$2,500.69]
NVIDIA ® L4 ADA GPU Computing Accelerator - 24GB GDDR6X - PCIe 4.0 x16 - Passive Cooling NVIDIA - Ada Lovelace based GPUs [+$2,279.09]
NVIDIA ® L40 ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 5.0 x16 - Passive Cooling NVIDIA - Ada Lovelace based GPUs [+$6,808.94]
NVIDIA ® RTX A4000 - 16GB GDDR6 - PCIe 4.0 x16 - Active Cooling (4xDP) NVIDIA Professional Graphics Processors(Ampere) [+$938.54]
NVIDIA ® RTX A6000 - 48GB GDDR6 - PCIe 4.0 x16 - Active Cooling (4xDP) NVIDIA Professional Graphics Processors(Ampere) [+$4,293.80]
NVIDIA ® RTX 6000 Ada Generation - 48GB GDDR6 ECC - PCIe 4.0 x16 - Active Cooling (4xDP) NVIDIA Professional Graphics [+$6,945.25]
NVIDIA ® L40S ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 4.0 x16 - Passive Cooling Nvidia L40S [+$8,099.00]
NVIDIA ® H100 NVL GPU Computing Accelerator - 94GB HBM3 - PCIe 5.0 x16 - Passive Cooling Nvidia H100 NVL [+$25,581.60]

(Max Quantity: 5)

NVIDIA® NVLink™ Bridge - 2-Slot Spacing - RTX A4500/A5000/A5500/A6000 100GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Slot Spacing - A30 and A40 600GB [+$249.00]
NVIDIA® NVLink™ Bridge - 2-Way 2-Slot Spacing - A100 and H100 NVL 600GB [+$249.00]

Supermicro AOC-S3916L-H16iR-32DD SAS3/SATA 16-Port RAID Controller - 8GB Cache - PCIe 4.0 x8 8GB Cache PCI Express 4.0x8 [+$941.00]
Supermicro AOC-S3008L-L8e SAS3/SATA 8-Port Host Bus Adapter - PCIe 3.0 x8 PCIe 3.0 x8 [+$220.33]
Supermicro AOC-S3908L-H8iR-16DD SAS3/SATA 8-Port RAID Controller - 8GB Cache - PCIe 4.0 x8 PCIe 4.0 x8 [+$830.00]
Supermicro AOC-S3816L-L16iT SAS3/SATA 16-Port Host Bus Adapter - PCIe 4.0 x8 PCIe 4.0 x8 [+$591.00]
Supermicro AOC-S3108L-H8iR-16DD SAS3/SATA 8-Port RAID Controller - 2GB Cache - PCIe 3.0 x8 PCIe 3.0 x8 [+$577.00]

BTR-CVPM05 Supermicro CacheVault Module for Broadcom 3908/3916 12Gb/s SAS Controller (with bracket) [+$289.00]

(Max Quantity: 2)

Supermicro AOM-TPM-9670V-S - Trusted Platform Module - TPM 2.0 - X11 X12 - Server Provisioned - Vertical [+$40.88]

C13 to NEMA 5-15P3ft AC Power Cord (North America), C13, NEMA 5-15P, 3 ft. [+$9.08]
C13 to NEMA 5-15P6ft AC Power Cord (North America), C13, NEMA 5-15P, 6 ft. [+$9.96]
C13 to NEMA 5-15P10ft AC Power Cord (North America), C13, NEMA 5-15P, 10 ft. [+$12.25]
C13 to C14-1ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 1ft / 0.3M (TAA Compliant) [+$4.79]
C13 to C14-2ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 2ft / 0.6M (TAA Compliant) [+$4.79]
C13 to C14-3ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 3ft / 0.9M (TAA Compliant) [+$4.52]
C13 to C14-4ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 4ft / 1.2M (TAA Compliant) [+$5.58]
C13 to C14-6ft IEC320 C13 to C14 Power Cable - 16AWG - 250V/13A - 6ft / 1.8M (TAA Compliant) [+$12.19]

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

Supermicro AIOM OCP 3.0 - 2x 100GbE QSFP28 - Mellanox CX-6 DX - PCIe 4.0 x16 - AOC-A100G-m2CM [+$987.00]

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

• High Performance Computing	• VDI
• AI/Deep Learning Training	• Media/Video Streaming
• Cloud Gaming	• Animation and Modeling
• Design & Visualization	• 3D Rendering
• Diagnostic Imaging

Form Factor	4U Rackmount Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29") Package: 685 x 675 x 1041mm (27" x 26.57" x 41")
Processor	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU
GPU	Max GPU Count: Up to 8 double-width or 8 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, H100, RTX A4000, RTX 6000 Ada Generation, RTX 5000, L40S, L4, A100 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional)
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 12 bays 4 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays M.2: 2 M.2 NVMe slots (M-key)
Expansion Slots	Default 8 PCIe 5.0 x16 FHFL slots
On-Board Devices	Chipset: Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
Input / Output	1 VGA port
System Cooling	Fans: Up to 8 heavy duty fans with optimal fan speed control Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Power Supply	4x 2700W Redundant Titanium Level (96%) power supplies
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) Available Color: Black Front & Silver Body
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

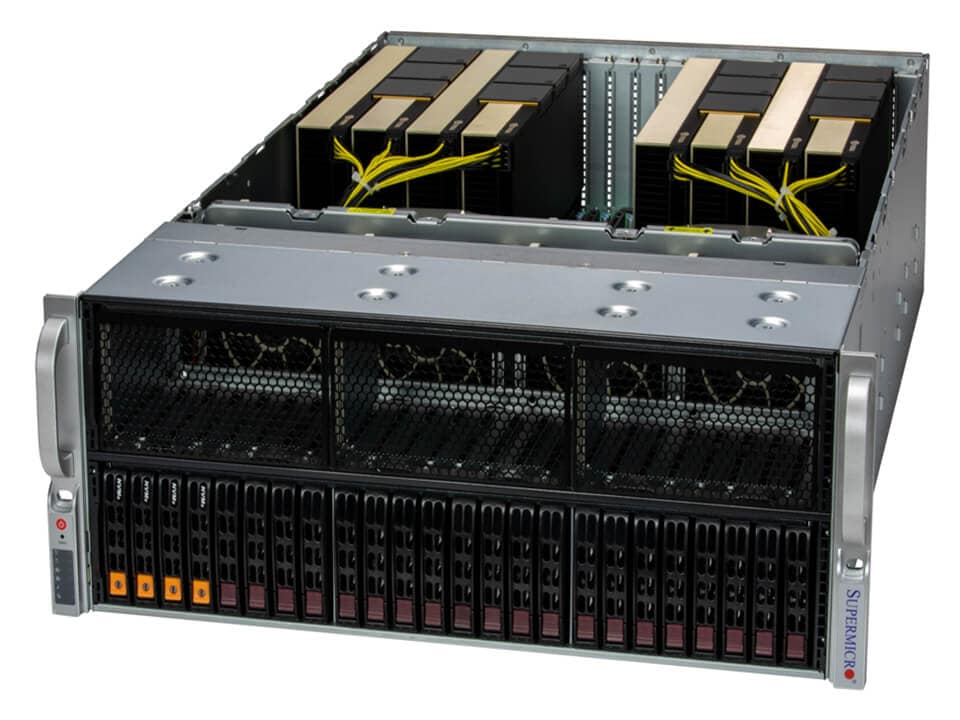

NTS Elite APEX 4U AI Server Dual Intel Xeon, 8-GPU Accelerator, Machine Learning & HPC

Key Applications

Key Features
