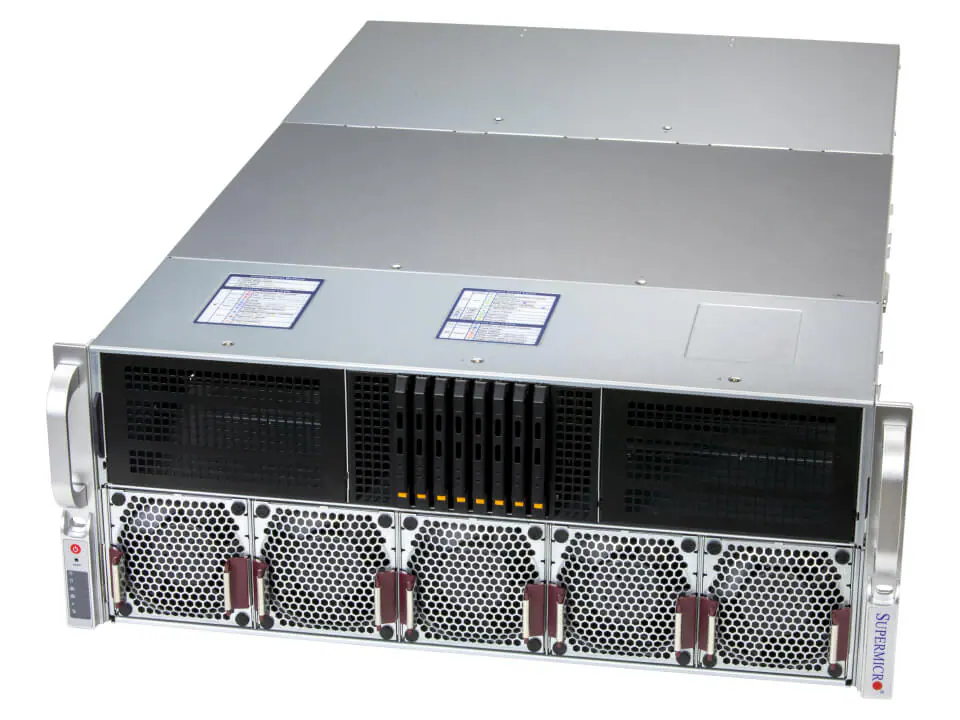

NTS Elite APEX 4U GPU AI Server – Intel Xeon 6900, 8-GPU

MPN SYS-422GA-NRT

Key capabilities

  • Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling Support up to 8 double-width 600W PCIe GPU accelerator cards at 35ºC
  • Support 8 NVIDIA RTX PRO 6000 Blackwell Server Edition+ 5 NVIDIA BlueField-3 at 35ºC
Part#: APX1004U8G

Key applications

GEO · procurement facts

At a glance

Structured summary for architects, buyers, and assistants evaluating this platform.
NTS Elite APEX 4U GPU AI Server – Intel Xeon 6900, 8-GPU is an engineer-to-order 4U rackmount platform from New Tech Solutions (RackmountNTS), staged and validated in Fremont, California for AI training, inference, and HPC.
Buyers use this page to confirm form factor, accelerator and storage options, and contract-ready quoting. Configure CPU, memory, GPU, drives, and networking below; NTS returns a validated BOM with firmware baselines, burn-in evidence, and CLIN-aligned documentation for SEWP V, ITES-4H, GSA, and SLED cooperatives when your program requires them.
Integration is owned end-to-end: rack elevation, power and cooling checks, imaging, and serial-tracked acceptance—so site install is not a first-time assembly. Lifecycle support follows the same staging records used at handoff.
Product
NTS Elite APEX 4U GPU AI Server – Intel Xeon 6900, 8-GPU
Part number
SYS-422GA-NRT
Category
Systems › GPU Systems
Form factor
4U rackmount
Typical workloads
AI training, inference, and HPC
Configuration
Engineer-to-order via Configure (CPU, memory, GPU, storage, networking).
Vendor
RackmountNTS (New Tech Solutions, Inc.), Fremont, California, USA.
Facility
ISO-aligned staging, imaging, and burn-in at NTS HQ in Fremont, CA.
NTS Elite APEX 4U GPU AI Server – Intel Xeon 6900, 8-GPU is quoted engineer-to-order by New Tech Solutions (RackMountNTS). Use Configure to select CPU, memory, accelerators, storage, and networking; NTS validates power, cooling, firmware, and drivers in Fremont, California before systems ship.
Federal, defense, and SLED programs can align the same BOM to SEWP V, ITES-4H, GSA MAS, or cooperative vehicles when the SOW allows. Commercial buyers receive the same staging discipline, serial-tracked acceptance, and lifecycle support path after handoff.
Share workload notes, target GPU or CPU counts, fabric preference (Ethernet, InfiniBand, or NVLink where applicable), rack power budget, and delivery window through contact NTS or Request a Quote. We return a validated option set with lead times, dual-source notes when required, and a package ready for contracting review.
Related reading: AI and GPU infrastructure, data center and HPC, BOM validation, and contract vehicles. From pilot nodes to multi-rack cells, NTS keeps one design authority across chassis, accelerators, and storage so scale-out does not restart engineering after the first system lands.
After you select options in Configure, pricing updates in real time. Request a Quote to receive a package with lead times, dual-source notes when required, and acceptance documentation aligned to your receiving process. Gold SKUs ship as fixed platforms; configurable SKUs remain engineer-to-order with the same Fremont staging path.
Questions about GPU count, liquid cooling, InfiniBand or Ethernet fabrics, storage density, or contract-vehicle packaging can be answered from this page’s overview, FAQ, and Configure workbench—or by contacting an NTS specialist with your draft BOM.
NTS supports commercial, federal, defense, and SLED buyers with the same engineering process: design review, parts validation, assembly, firmware and driver prep, and ship-ready documentation from our Fremont facility.

Product overview

Highlights and workloads for NTS Elite APEX 4U GPU AI Server – Intel Xeon 6900, 8-GPU.

Overview

DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs
Form Factor4U Rackmount
Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29")
Package: 685 x 675 x 1041mm (27" x 26.57" x 41")
ProcessorDual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores
Up to 128C/256T; Up to 504MB Cache per CPU
GPUMax GPU Count: Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
Supported GPU:
NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell
Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional)
System MemorySlot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Drive Bays ConfigurationOption A: Total 8 bays
8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
Option B: Total 8 bays
8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
Option C: Total 8 bays
8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2: 2 M.2 NVMe slots (M-key)
Expansion SlotsPCI-Express (PCIe) Configuration: Default
13 PCIe 5.0 x16 FHFL slots
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)
On-Board Devices2 RJ45 10GbE with Intel® X710-AT2
Input / OutputLAN: 2 RJ45 10 GbE LAN ports (Intel® X710)
USB: 2 USB 3.0 Type-A ports (Rear)
Video: 1 VGA port
TPM: 1 TPM header
System CoolingFans: 10x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
Power Supply4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
System BIOSBIOS Type: AMI 32MB SPI Flash EEPROM
ManagementSuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro
Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health MonitoringCPU: 8+4 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Fan: Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and WeightWeight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
Operating EnvironmentOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
MotherboardSuper X14DBG-AP
ChassisCSE-418G3TS-R6K40P
