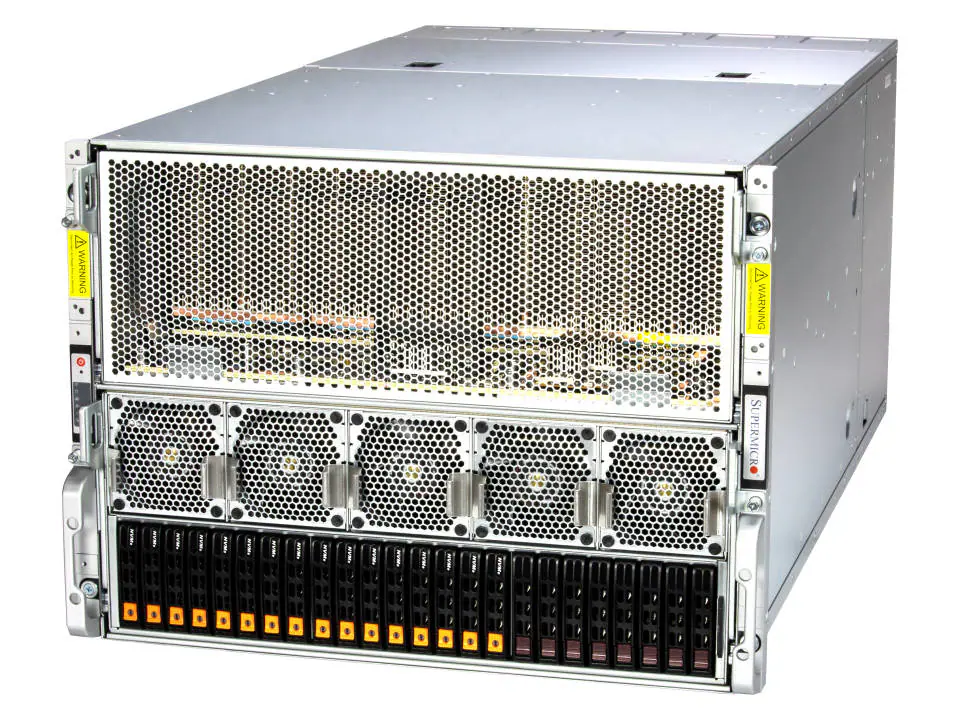

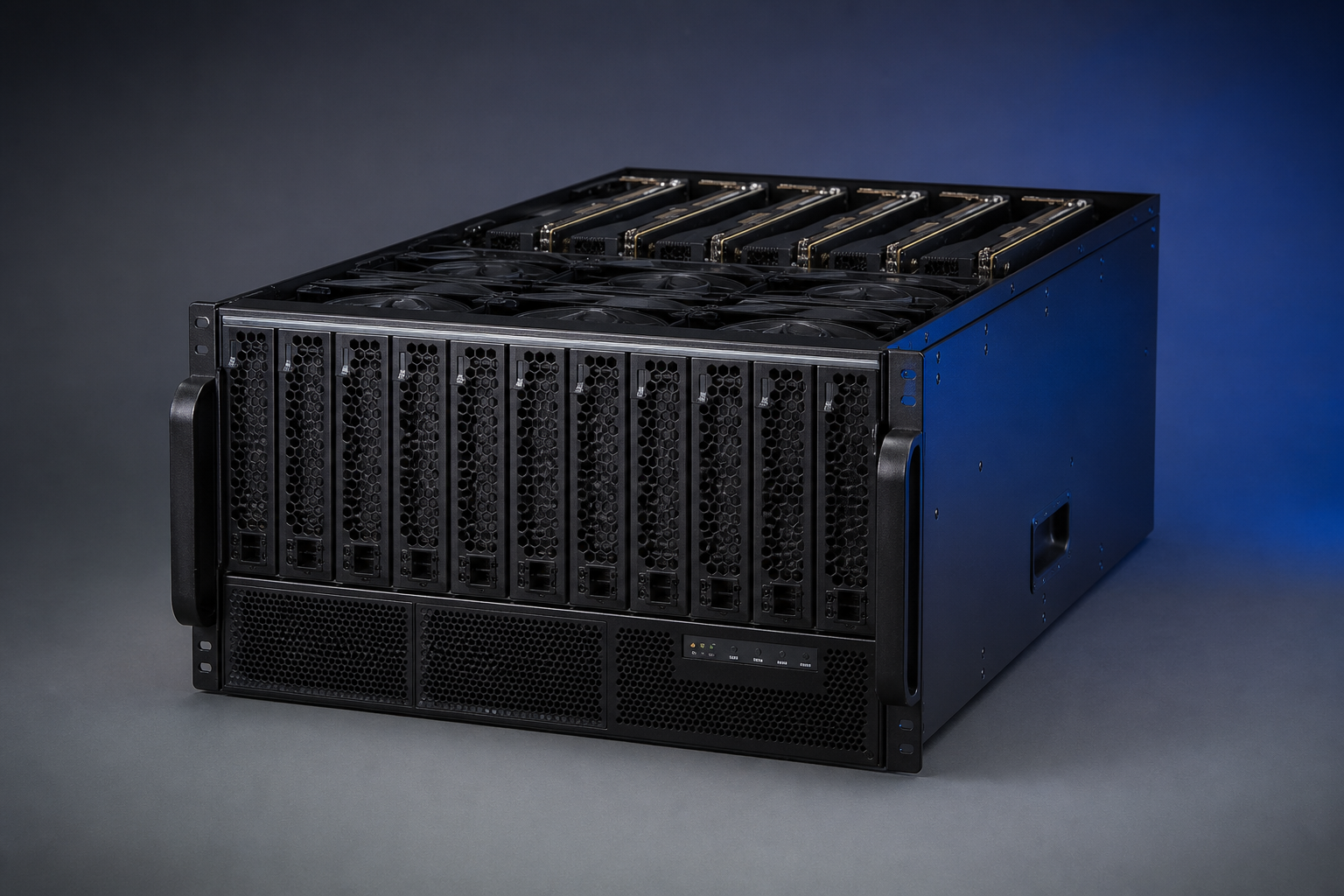

NTS Elite APEX 8U Next-Gen GPU Server Dual AMD EPYC, 8-GPU

DP AMD 8U System with AMD Instinct™ MI300X 8-GPU

Part#: APXA008U8A

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Climate and Weather Modeling

Key Features

- 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
- High density 8U system with AMD Instinct MI300X 8-GPU
24 DIMM Slots; Up to 6TB DRAM 4800 ECC DDR5 LRDIMM;RDIMM
8 PCIe 5.0 x16 LP + up to 4 PCIe 5.0 X16 FHFL slots
Flexible networking options
- 2 Hot-swap 2.5" SATA drive bays
- 1 M.2 NVMe for boot drive only
- Up to 16 hot-swap 2.5" NVMe drive bays (12 default + 4 optional)
10 heavy duty fans with optimal fan speed control
6x 3000W redundant Titanium level power supplies

Configure & Buy Specifications

Form Factor	8U Rackmount Enclosure: 437 x 355.6 x 843.28mm (17.2" x 14" x 33.2") Package: 698 x 750 x 1300mm (27.5" x 29.5" x 51.2")
Processor	Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
GPU	Max GPU Count: 8 onboard GPUs Supported GPU: AMD: Instinct™ MI300X Accelerators CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: AMD Infinity Fabric™ Link
System Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Drive Bays Configuration	Default: Total 18 bays 12 front hot-swap 2.5" NVMe drive bays 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe* drive bays (*NVMe support may require additional storage controller and/or cables) M.2: 2 M.2 NVMe slots (M-key
Expansion Slots	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHFL slots Option A 8 PCIe 5.0 x16 LP slots 4 PCIe 5.0 x16 FHFL slots
On-Board Devices	AMD SP5
Input / Output	1 VGA port
System Cooling	Fans: N/A
Power Supply	6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) Available Color: Black front & silver body
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Barebone

8U - AMD MI300X 8-GPU - 18x 2.5" NVMe/SAS/SATA Hot-swap - 3000W (3+3) Redundant

Processor

Memory

64GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$22,344.00]
96GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$44,880.00]
128GB PC5-41600 5600MHz DDR5 ECC RDIMM DDR5 [+$23,520.00]

M.2 DRIVE

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 18)

GPU

AMD AMD Instinct™ MI300X - 8x AMD Instinct™ MI300X Accelerators - 192GB HBM3 - OAM PCIe 5.0 x16 - Passive Cooling AMD Instinct MI300 Series

NETWORK ADAPTER

(Max Quantity: 8)

Power Cables

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
