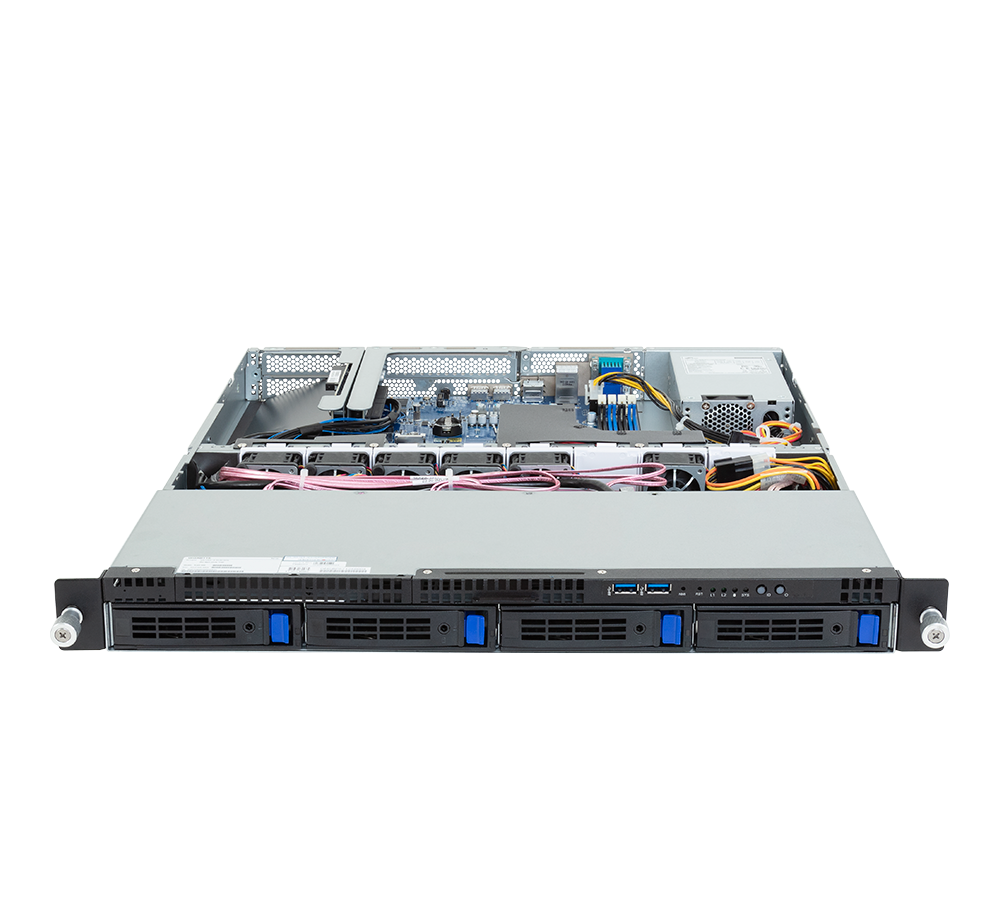

| Dimensions | 1U (W430 x H43.5 x D536 mm) |
Motherboard
| MX04-CE0 |
| CPU | Intel Xeon 6300-Series Processors
Intel Xeon E-2400 Processors
Intel Pentium Gold G7400 / G7400T Processor
Single processor, TDP up to 95W |
Socket
| 1 x LGA 1700 |
| Chipset | Intel C262 |
| Memory | Dual Channel DDR5 UDIMM, 4 x DIMMs
Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R),
3600 MT/s (2DPC/2R) |
LAN
| 2 x 1Gb/s LAN (2 x Intel I210-AT), Support NCSI
1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x VGA port
|
Storage
| Front hot-swap:
4 x 3.5"/2.5" SATA
Internal M.2:
1 x M.2 (2242/2280), PCIe Gen4 x4
|
RAID
| Intel SATA RAID 0/1/10/5
Support optional RAID add-in cards
|
PCIe Expansion Slots
| 1 x FHHL PCIe Gen5 x16
2 x LP PCIe Gen4 x4
|
I/O Ports
| Front:
2 x USB 3.2 Gen1
Rear:
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN
|
Backplane Board
| SATA 6Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| Single 400W 80 PLUS Gold power supply
AC Input: 100-240V
|
| System Management | ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface |
| System Fans | 6 x 40x40x28mm |
| Operating Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
