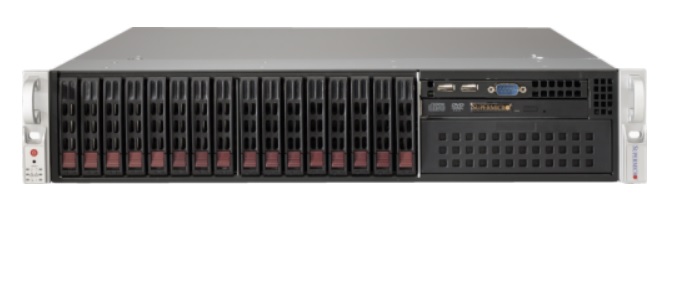

NTS Elite Command 2U Enterprise Server with Dual CPUs and 16 Drive Bays

2U Mainstream with 8 hot-swap SAS + 8 SATA bays and 5 PCIe 4.0 slots
Part#: CMDI002U16-V1

Key Applications

  • High Performance Computing
  • Enterprise Server
  • Data Center Optimized
  • Database Processing and High Density Storage
  • Application-Optimized Solutions

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
    • 4 PCIe 4.0 x16 Low Profile (LP);
    • 1 PCIe 4.0 x8 Low Profile (LP);
    • * PCIe slot#1 is populated with 1x AOC-S3908L-H8IR-16DD-P to support 8x SAS drives
  3. Dual  10GBase-T LAN with Intel® X550 Ethernet Controller
  4. 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control;1 air shroud
  5. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc



Configure & Buy Specifications



 Form Factor2U Rackmount
Enclosure: 437 x 89 x 630mm (17.2" x 3.5" x 24.8")
Package: 737 x 279 x 983mm (29" x 11" x 38.7")
Processor
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Up to 36C/72T; Up to 60MB Cache per CPU
System Memory  Slot Count: 16 DIMM slots
  Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration
Default: Total 16 bays
8 front hot-swap 2.5" SAS drive bays
4 front hot-swap 2.5" SATA drive bays
4 front hot-swap 2.5" NVMe*/SATA drive bays
(*NVMe support may require additional storage controller and/or cables)
M.2: 1 M.2 NVMe slot (M-key)
Peripheral Bays: 1 5.25" DVD bay (optional)
Expansion Slots Default
4 PCIe 4.0 x16 LP slots
1 PCIe 4.0 x8 LP slot
  On-Board DevicesChipset: Intel® C621A
Network Connectivity: 2 RJ45 10GbE
  Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports(front)
4 USB 3.0 ports(rear)
Video: 1 VGA port
DOM: 2 SuperDOM (Disk on Module) ports
 System Cooling
Fans: Up to 3 heavy duty fans with optimal fan speed control
 Power Supply
1x 1200W Redundant Titanium Level (96%) power supply
System BIOS
BIOS Type: AMI 32MB SPI Flash EEPROM
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
PC Health Monitoring
CPU: Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and Weight
Weight: Gross Weight: 63 lbs (28.8 kg)
Net Weight: 38 lbs (17.4 kg)
Available Color: Black
Operating Environment
RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
