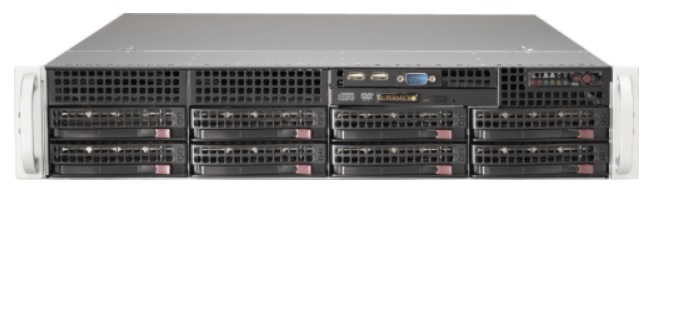

Picture of NTS Elite Command 2U Mainstream Dual‑Processor Server with 10 Drive Option

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

NTS Elite Command 2U Mainstream Dual‑Processor Server with 10 Drive Option

2U Mainstream with 8 hot-swap SATA bays and 6 PCIe 4.0 slots
Part#: CMDI002U10

Key Applications

  • Virtualization                         Enterprise Server
  • Data Center Optimized         Application and data serving
  • Model analysis                     Compute Intensive Applications

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
    • 4 PCIe 4.0 x16 Low Profile (LP);
    • 2 PCIe 4.0 x8 Low Profile (LP)



Configure & Buy Specifications



 Form Factor2U Rackmount
Enclosure: 437 x 89 x 647mm (17.2" x 3.5" x 25.5")
Package: 678 x 290 x 876mm (26.7" x 11.4" x 34.5")
Processor
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Up to 36C/72T; Up to 60MB Cache per CPU
System Memory  Slot Count: 16 DIMM slots
  Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration

Default: Total 8 bays
8 front hot-swap 3.5" SAS*/SATA drive bays
Option A: Total 10 bays
8 front hot-swap 3.5" SAS*/SATA drive bays
2 front fixed 3.5" NVMe*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables,

please see the optional parts
list for details)
M.2: 1 M.2 NVMe slot (M-key)
Peripheral Bays: 1 slim DVD bay (optional)

Expansion Slots Default
2 PCIe 4.0 x8 LP slots
4 PCIe 4.0 x16 LP slots
  On-Board Devices Chipset: Intel® C621A
Network Connectivity: 2 RJ45 1GbE
  Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports(front)
4 USB 3.0 ports(rear)
Video: 1 VGA port
DOM: 2 SuperDOM (Disk on Module) ports
 System Cooling
Fans: Up to 3 heavy duty fans with optimal fan speed control
  Power Supply
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
System BIOS
BIOS Type: AMI 32MB SPI Flash EEPROM
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
PC Health Monitoring
CPU: Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and Weight
Weight: Gross Weight: 69 lbs (31.2 kg)
Net Weight: 36.38 lbs (16.5 kg)
Available Color: Black
Operating Environment
RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
