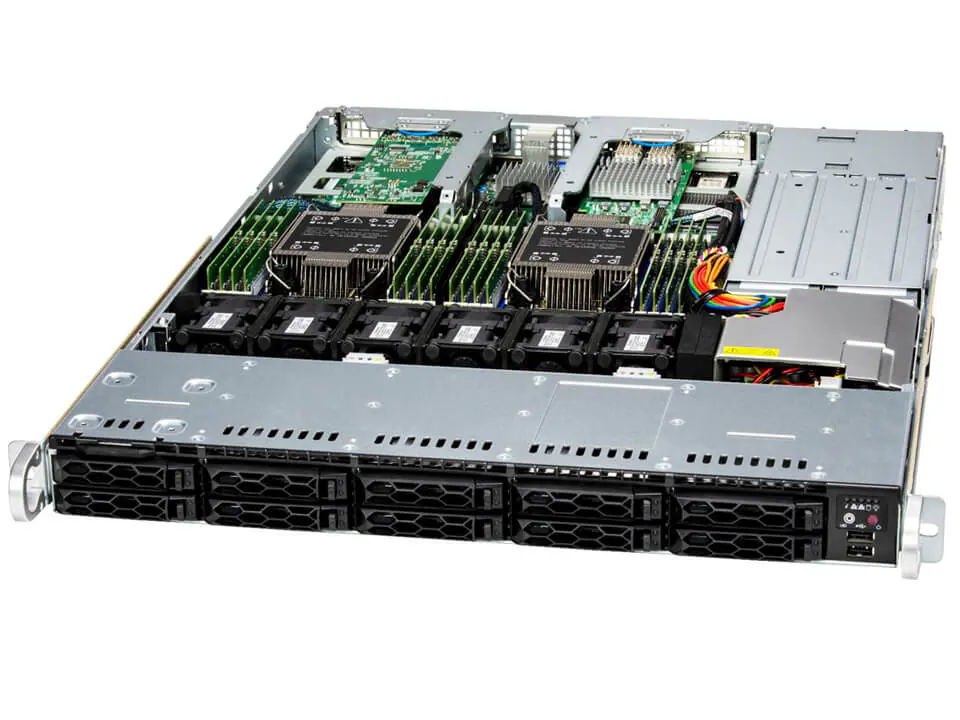

| Form Factor | 1U Rackmount
Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5")
Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4") |
Processor
| Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 36C/72T; Up to 82.5MB Cache per CPU |
| GPU | Max GPU Count: Up to 2 single-width GPUs
Supported GPU: NVIDIA PCIe: L4, A2
Intel PCIe: Intel Data Center GPU Flex 140 |
System Memory
| Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 10 bays
10 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280; VROC required for RAID) |
| Expansion Slots | Default
2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
On-Board Devices
| SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(front)
Video: 1 VGA port
Serial: 1 COM port(Rear)
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud: 2 Air Shrouds
|
Power Supply
| 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI FLASH ROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
CPU: Monitors for CPU Cores, Chipset Voltages, Memory.
8 Phase-switching voltage regulator
|
Dimensions and Weight
| Weight: Gross Weight: 40 lbs (18.1 kg)
Net Weight: 25 lbs (11.3 kg)
Available Color: Black front & silver body
|
Operating Environment
| RoHS Compliant
Name: A2
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
|
