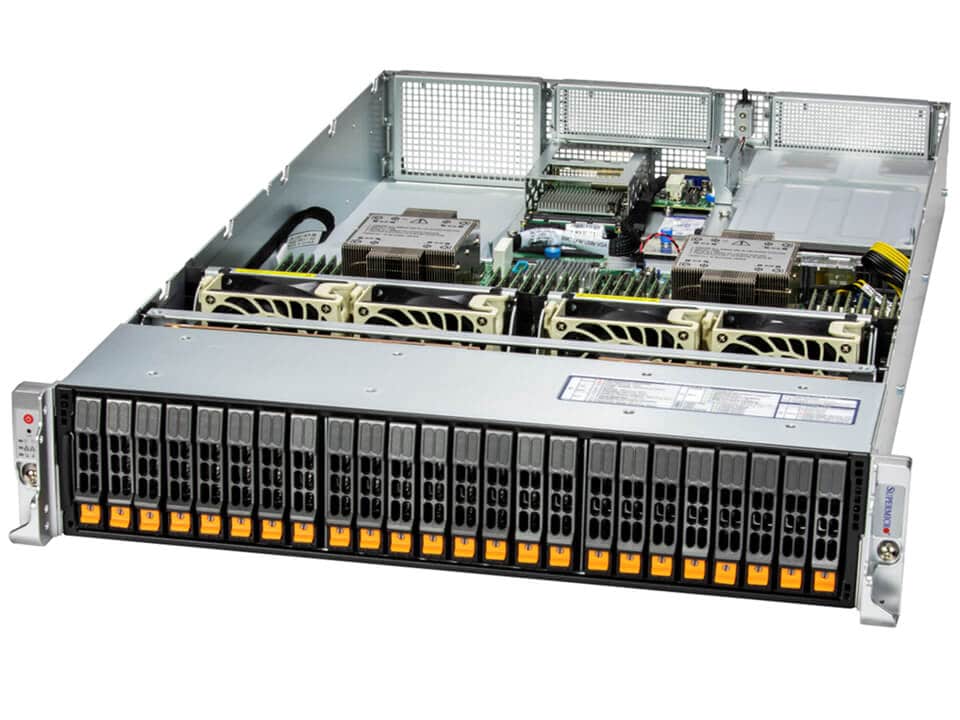

NTS Elite Vault NAS 2U Enterprise Server with 24 Hot-Swap Drives + 2 M.2

2U Hyper with 24 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots
Part#: VLTI002U24

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
  4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. 24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
  6. 4 heavy duty hot-swap fans with optimal fan speed control



Configure & Buy Specifications



  Form Factor2U Rackmount
Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
Processor
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T; Up to 320MB Cache per CPU
GPU Max GPU Count: Up to 2 double-width or 3 single-width GPUs
 Supported GPU: NVIDIA PCIe: RTX A2000, L40S, A100
System Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Drive Bays Configuration Default: Total 24 bays
24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
  Expansion SlotsPCI-Express (PCIe) Configuration: Option A*
4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B*
8 PCIe 5.0 x8 (in x16) FH/10.5"L slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
  On-Board Devices
SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM
  Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 2.0 ports(rear)
2 USB 3.0 ports(Header)
Video: 1 VGA port
  System Cooling
Fans: Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 2 Air Shrouds
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
System BIOS
BIOS Type: AMI 64MB SPI Flash
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
PC Health Monitoring
CPU: Monitors for CPU Cores, Chipset Voltages, Memory
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and Weight
Weight: Gross Weight: 66 lbs (30 kg)
Net Weight: 40 lbs (18.2 kg)
Available Color: N/A
Operating Environment
Name: A2
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
