| Form Factor | 4U |
Dimensions
| Height
7" (178 mm)
Width
17.2" (437 mm)
Depth
26" (660 mm)
Gross Weight
118 lbs (53.52 kg)
Net Weight
86 lbs (39 kg)
Packaging (W x H x L)
27" (686 mm) x 14.8" (376 mm) x 37.3" (947 mm)
Available Color
Black
|

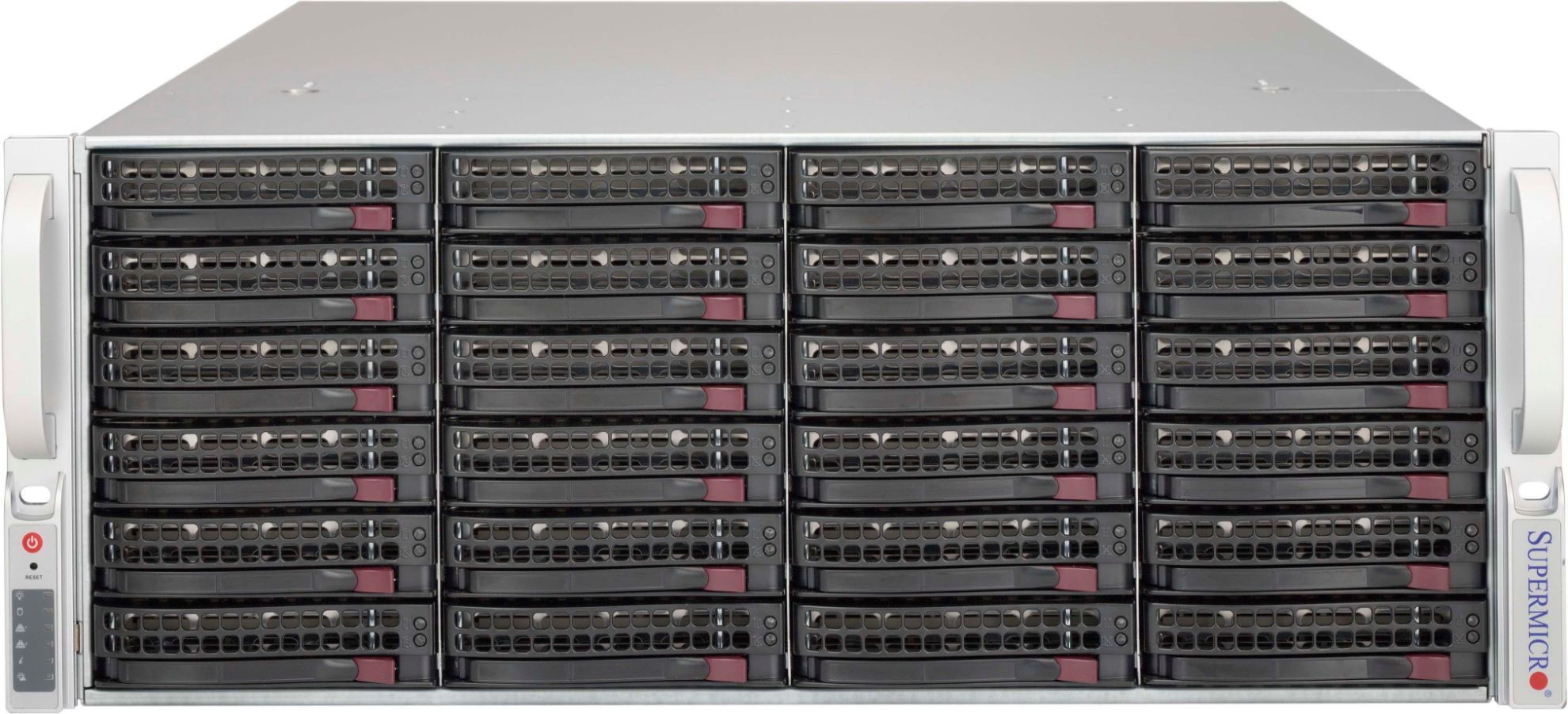

| Drive Bays | 24x 3.5" hot-swap HDD bay for JBOD solution |
Qualified SAS Controllers
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller |
| Backplane | 24-Port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) |
| Front Panel | Button
Power On/Off button
System Reset button
Unit Identification (UID) button
LED
1 Network activity LEDs |
Systems Cooling
| Fans
2x 8cm hot-swap exhaust fan(s) & air shroud
3x 8cm hot-swap redundant PWM cooling fan(s)
|
Operating Environment (System)
| Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
|
Power Supply
| 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency
96%
Total Output Power and Input
800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Gold Finger (19 Pair Connector)
+12V
Max: 66.7A / Min: 0A (100Vac - 127Vac)
Max: 83A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (200Vdc - 240Vdc)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT846-2824
O/P: 12V/135
+5V Max: 50A
+3.3V Max: 24A
-12V Max: 0.6A
|
